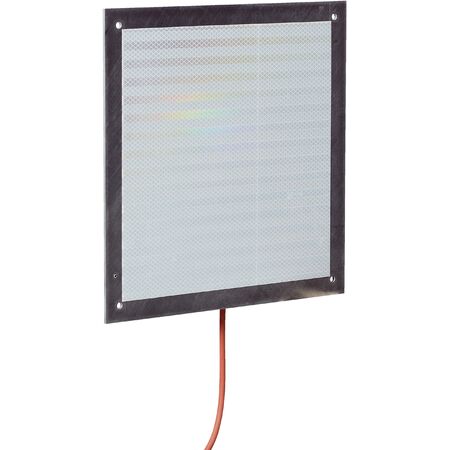

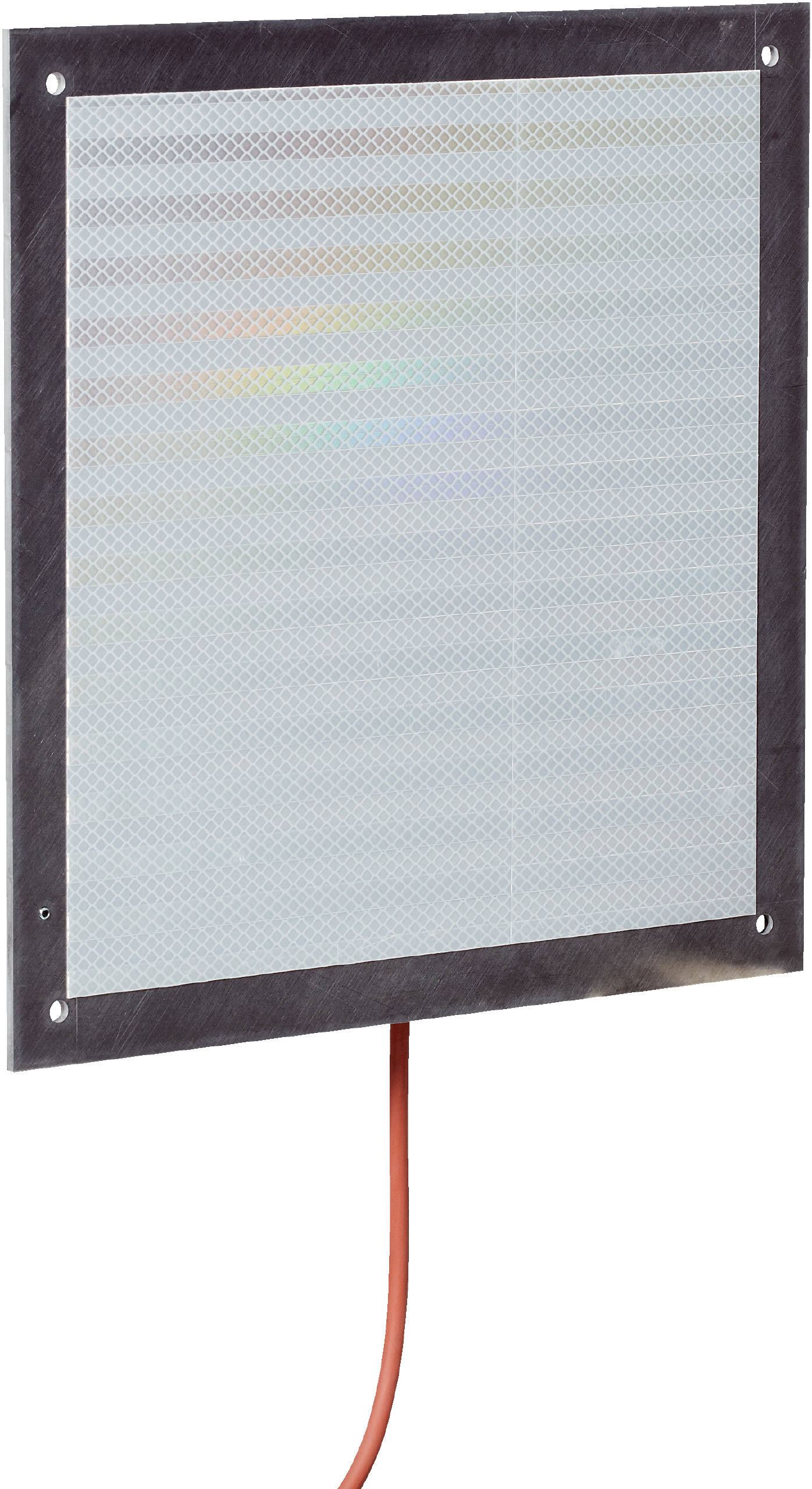

Diamond Grade Reflector Plate PL240DG-H | Heated Baseplate | IPx4 Rated | by SICK
The Diamond Grade Reflector Plate PL240DG-H is designed for industrial automation and safety systems, featuring a heated baseplate to prevent condensation and ice formation. With an IPx4 rating for water protection and a durable anodised aluminum construction, this reflector is perfect for use with photoelectric sensors in manufacturing environments, ensuring reliable reflective signaling and detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Grade Reflector Plate PL240DG-H | Heated Baseplate | IPx4 Rated | by SICK
Brand: SICK
SKU: 1022926
Alternatively Known As: Diamond Grade Reflector, Heated Reflector Plate, Reflective Sensor Target, SICK Reflector PL240DG-H
Technical Specifications
- Product segment: Reflectors and optics
- Product version: Standard reflectors
- Base plate material: Anodised aluminum
- Enclosure rating: IPx4 (EN 60529)
- Supply voltage: 90 V AC to 280 V AC
- Cable: 2 m silicone, 3 x 0.75 mm² flexible cable with ferrules
- Minimum bend radius: 51 mm at room temperature
- Operating temperature range: -40 °C to +55 °C
- Storage temperature range: -40 °C to +55 °C
- External fuse protection: 6 A (customer provided)
- Dimensions (H x L x W): 280mm x 280mm x 280mm
- Weight: 1.98 kg
Key Features
- Reflector plate with Diamond Grade reflective tape for enhanced visibility
- Heated baseplate to prevent condensation and ice formation
- External fuse protection of 6 A (provided by customer)
- Screw-on mounting system for secure installation
- Durable anodised aluminum base plate
- IPx4 rated enclosure for protection against water splashes
- Wide supply voltage range from 90 V AC to 280 V AC
- 2 m silicone flexible cable with ferrules and minimum bend radius of 51 mm
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation and safety systems
- Reflective signaling and detection in manufacturing environments
- Use with photoelectric sensors requiring reflective targets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Heated baseplate reduces maintenance and extends product life by preventing ice build-up
- Durable materials reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PL240DG-H Diamond Grade Reflector Plate is available for immediate purchase, ideal for industrial automation and safety sensor applications.
