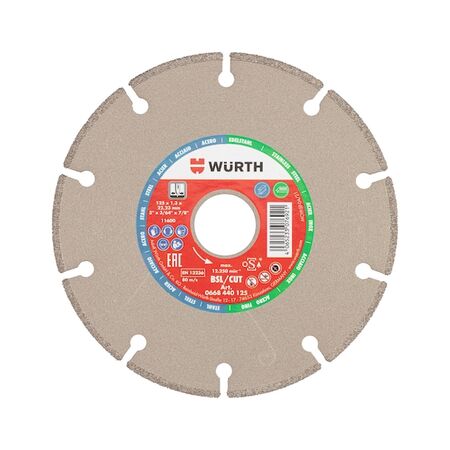

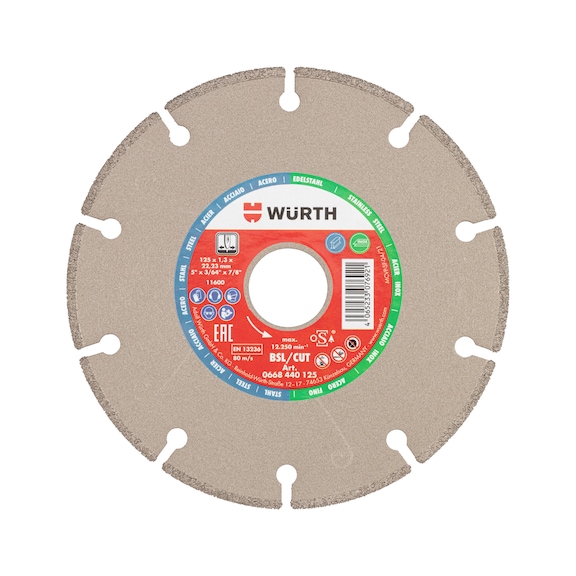

Diamond Metal Cutting Disc 125mm | Vacuum Brazed Coating | Long Service Life | by Wurth
The Diamond Metal Cutting Disc 125mm is engineered for precision metal cutting, featuring a special vacuum-brazed diamond coating for enhanced durability. Ideal for industrial machining and fabrication, this disc offers an extremely long service life and is designed to minimize dust and odour pollution during use. Perfect for metalworking workshops and construction sites, it ensures high performance with reduced noise and vibration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Metal Cutting Disc 125mm | Vacuum Brazed Coating | Long Service Life | by Wurth
Brand: Wurth
SKU: 668440125
Alternatively Known As: Diamond Metal Cutting Disc, Vacuum Brazed Diamond Blade, Metal Cutting Wheel 125mm
Technical Specifications
- Diameter: 125 mm
- Bore hole: 22.23 mm
- Segment height: 3 mm
- Segment thickness: 1.3 mm
- Number of segments: 10
- Segment connection: BSL (vacuum-brazed diamond coating)
- Max rotation speed: 12250 rpm
- Max circumferential speed: 80 m/s
- Versatility rating: 3 of 4 points
- Service life rating: 4 of 4 points
- Cutting speed rating: 2 of 4 points
- Cut quality rating: 1 of 4 points
- Complies with EN 13236 safety standard
- Dimensions (H x L x W): 3mm x 125mm x 125mm
- Weight: 0.2 kg
Key Features
- Special vacuum-brazed diamond coating (BSL) optimized for metal
- Extremely long service life with 100% recyclability
- No reduction in external diameter during use
- Additional laser slots reduce noise and vibration
- Insensitive to temperature changes and moisture
- No expiry date with proper use and storage
- Extremely break-proof with fewer sparks
- No additional dust and odour pollution
Professional Installation Requirements
- Clamping and installation must be performed by a trained specialist using clean clamping flanges of the same size. Use appropriate protective covers and follow safety instructions.
Applications
- Metal cutting up to 10 mm thickness
- Industrial machining and fabrication
- Metalworking workshops and construction sites
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- 100% recyclable materials reduce environmental impact
- Reduced dust and odour pollution during cutting
- Long service life reduces waste and replacement frequency
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Versatile Diamond Cutting Disc 125mm is available for immediate purchase, ideal for metal cutting applications in industrial and construction settings.
