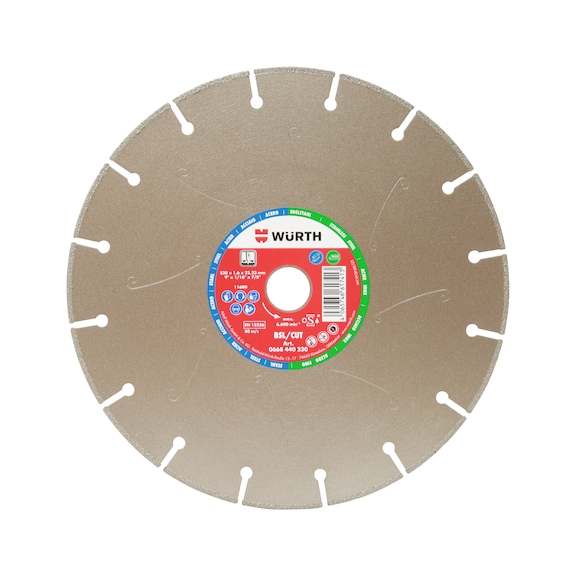

Diamond Metal Cutting Disc 230mm | Vacuum Brazed Coating | Long Service Life | by Wurth
The Diamond Metal Cutting Disc 230mm is designed for precision metal cutting up to 10mm thickness, featuring a special vacuum-brazed diamond coating for enhanced durability. Ideal for industrial and workshop applications, this cutting disc ensures a long service life with 100% recyclable materials, reducing environmental impact while delivering high performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Metal Cutting Disc 230mm | Vacuum Brazed Coating | Long Service Life | by Wurth
Brand: Wurth
SKU: 668440230
Alternatively Known As: Diamond Metal Cutting Disc, Vacuum Brazed Diamond Blade, Metal Cutting Wheel 230mm
Technical Specifications
- Diameter: 230 mm
- Bore hole: 22.23 mm
- Segment height: 3 mm
- Segment thickness: 1.6 mm
- Number of segments: 16 PCS
- Segment connection: BSL (vacuum-brazed diamond coating)
- Max. rotation speed: 6600 rpm
- Max. circumferential speed: 80 m/s
- Versatility rating: 3 of 4 points
- Service life rating: 4 of 4 points
- Cutting speed rating: 2 of 4 points
- Cut quality rating: 1 of 4 points
- Complies with EN standard 13236
- Dimensions (H x L x W): 3mm x 230mm x 230mm
- Weight: 0.5 kg
Key Features
- Very versatile diamond cutting disc optimized for metal applications
- Special vacuum-brazed diamond coating (BSL) for durability
- Extremely long service life with 100% recyclable materials
- No reduction in external diameter during use
- Additional laser slots reduce noise and vibration
- Insensitive to temperature changes and moisture
- No storage restrictions
- Environmentally friendlier and safer with fewer sparks and no additional dust or odour pollution
Professional Installation Requirements
- Clamping and installation must be performed only by a trained specialist using clean clamping flanges of the same size. A test run is recommended. Use appropriate protective covers and safety equipment.
Applications
- Metal cutting up to 10 mm thickness
- Industrial and workshop metal machining
- Precision straight cutting of metal materials
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- 100% recyclable materials reduce environmental impact
- Fewer sparks and no additional dust or odour pollution during use
- Long service life reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Use as per safety instructions to avoid damage and ensure longevity.
Available Now
The Wurth 230mm Diamond Cutting Disc is available for immediate purchase, ideal for metal cutting applications in industrial and workshop settings.
