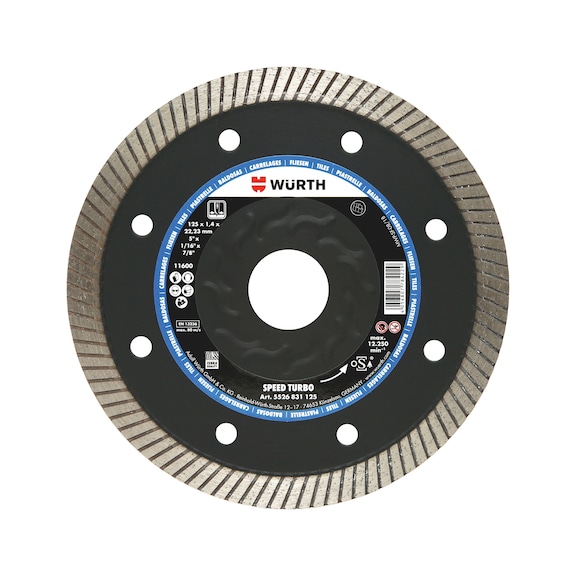

Diamond Tile Cutting Disc | Turbo Segment Structure | 125 mm Diameter | by Wurth
The Diamond Tile Cutting Disc is engineered for precision cutting of very hard tiles and fine stoneware. Featuring a turbo segment structure for fast and clean cuts, this disc minimizes wobble for enhanced accuracy. Ideal for professional and industrial applications, it ensures an extended service life with proper use and maintenance, making it a reliable choice for your cutting needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Diamond Tile Cutting Disc | Turbo Segment Structure | 125 mm Diameter | by Wurth
Brand: Wurth
SKU: 5526831125
Alternatively Known As: Diamond Tile Cutting Disc, Thin Diamond Blade, Turbo Segment Cutting Disc, Stoneware Cutting Disc
Technical Specifications
- Diameter: 125 mm
- Bore hole: 22.23 mm
- Segment height: 10 mm
- Segment thickness: 1.4 mm
- Segment connection: Sintered
- Max. rotation speed: 12250 rpm
- Max. circumferential speed: 80 m/s
- Versatility rating: 3 of 4 points
- Service life rating: 3 of 4 points
- Cutting speed rating: 4 of 4 points
- Cut quality rating: 4 of 4 points
- Dimensions (H x L x W): 10mm x 125mm x 125mm
- Weight: 0.3 kg
Key Features
- Closed cutting edge with turbo segment structure for fast and clean cuts
- Significantly reduced tendency to wobble for precise cutting
- Extended service life with proper use and maintenance
- Designed for straight cutting only, not suitable for lateral grinding
- Must be used with appropriate protective hood and safety equipment
- Clamping must be performed by trained specialists to avoid injury
Professional Installation Requirements
- Clamping and installation must be performed only by trained specialists to ensure safety and proper function.
Applications
- Cutting very hard tiles
- Cutting fine stoneware
- Cutting comparable materials up to approximately 20 mm thick
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Extended service life reduces waste and frequency of replacement
- Efficient cutting reduces energy consumption during use
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Thin Diamond Cutting Disc is available for immediate purchase, ideal for professional and industrial cutting applications involving hard tiles and stoneware.
