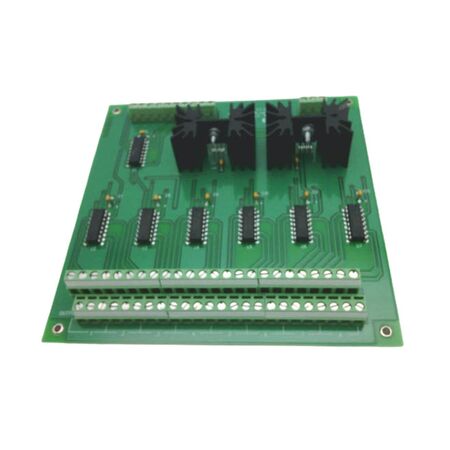

Differential Encoder Buffer Board | 5VDC RS-422 Input | 24VDC Voltage Rating | 250 kHz Frequency | by Allen-Bradley
The Differential Encoder Buffer Board is designed for industrial automation, featuring a 5VDC RS-422 differential line driver and a voltage rating of 24 VDC at 1 amp. With a frequency capability of 250 kHz, this board is perfect for motion control and feedback systems, ensuring enhanced signal integrity and reduced errors in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Input Signal: 5VDC RS-422 differential line driver
- Voltage Rating: 24 VDC at 1 amp
- Frequency: 250 kHz
- Mounting: Thru-hole standoffs with four holes
- Dimensions (H x L x W): 50mm x 120mm x 100mm
- Weight: 0.2 kg
Key Features
- Differential encoder buffer board
- Input signal: 5VDC RS-422 differential line driver
- Voltage rating: 24 VDC at 1 amp
- 250 kHz frequency capability
- Thru-hole standoffs with four mounting holes
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and safety.
Applications
- Industrial automation systems
- Motion control and feedback systems
- Signal processing in manufacturing equipment
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances signal integrity reducing errors and waste in industrial processes
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 845BB Differential Encoder Buffer Board is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial automation and motion control applications.
