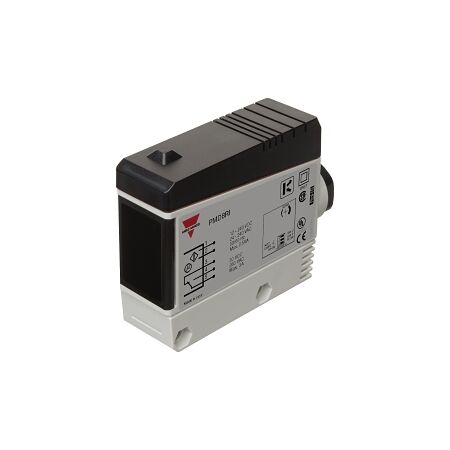

Diffuse Photoelectric Sensor | 800mm Range | AC/DC Relay NO/NC | IP67 by NHP
Diffuse photoelectric sensor with 800mm range and AC/DC relay NO/NC functionality—ideal for industrial automation and safety applications. Built for reliable object detection, with IP67 protection and manual adjustment for easy setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage: 21.6-264 V AC, 10.8-264 V DC
- Max Output Current: 0.13 mA
- Response Time: 20 ms
- Switching Frequency: 20 Hz
- Degree of Protection: IP67
- Sensing Type: Standard diffuse
- Type of Light: Infrared light
- Wavelength of the Sensor: 880 nm
- Beam Angle: 24°
- Max Switching Distance: 800 mm
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 65mm x 81mm x 25mm
- Weight: 0.3 kg
Key Features
- Manual adjustment for easy setup.
- Relay contact output with NO/NC functionality.
- IP67 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial automation
- Safety applications
- Object detection
Standards & Compliance
- Complies with relevant safety standards.
Environmental Benefits
- Energy-efficient operation reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and safety applications.
