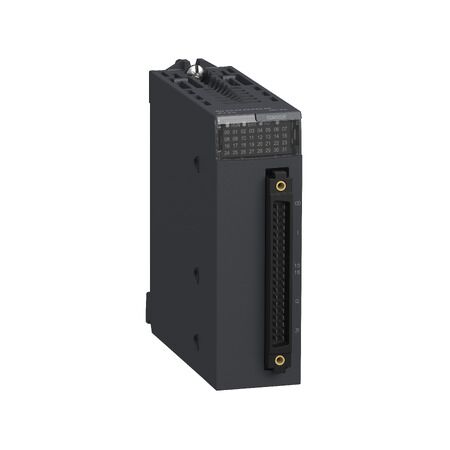

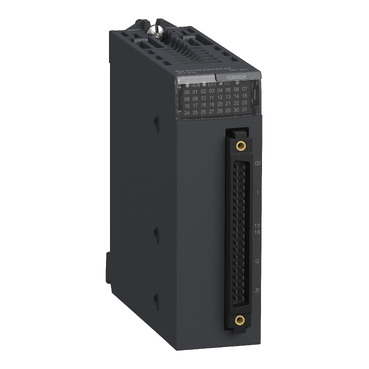

DIG 16I 24VDC Digital I/O Module | 16 Inputs & Outputs | Compact Design | by Clipsal
The DIG 16I 24VDC Digital I/O Module is engineered for industrial automation, featuring 16 digital inputs and 16 source transistor outputs. With a compact modular design and high-speed response time under 1 ms, it's perfect for PLC control panels and manufacturing process control. Ideal for qualified electricians and automation technicians, this module ensures efficient system integration and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIG 16I 24VDC Digital I/O Module | 16 Inputs & Outputs | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHBMXDDM3202K
Alternatively Known As: Schneider BMXDDM3202K, Modicon Digital I/O Module, 16 Channel Digital Input Output Module, PLC I/O Module
Technical Specifications
- Input type: 16 digital inputs, 24VDC
- Output type: 16 digital source transistor outputs
- Input current: 3.5 mA per channel
- Output voltage: 24VDC
- Output current: 0.5A per channel
- Isolation: 500V between channels and logic
- Response time: <1 ms
- Operating temperature: 0°C to 60°C
- Mounting: DIN rail
- Dimensions (H x L x W): 100mm x 120mm x 32mm
- Weight: 0.25 kg
Key Features
- 16 digital inputs (24VDC)
- 16 digital source transistor outputs
- Compact modular design for easy integration
- LED status indicators for each channel
- High-speed response suitable for automation tasks
Professional Installation Requirements
- Installation by a qualified industrial electrician or automation technician is required to ensure correct wiring and system integration.
Applications
- Industrial automation systems
- PLC control panels
- Manufacturing process control
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports efficient automation, reducing energy waste in industrial processes.
- Long operational life minimizes electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHBMXDDM3202K Digital Input/Output Module is available for immediate purchase. Ideal for industrial automation and process control applications.
