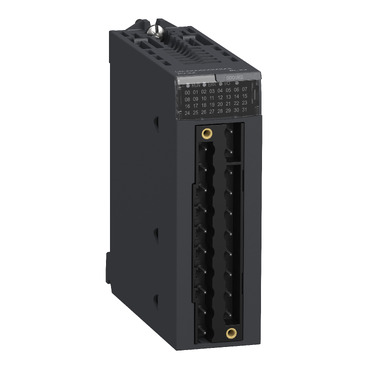

DIG 16Q TRANS SOURCE 0.5A | 16-Channel Digital Output | Solid State Reliability | DIN Rail Mountable | @Pack of 1 | by Clipsal
The DIG 16Q TRANS SOURCE 0.5A is a 16-channel digital output module designed for industrial automation systems. With solid-state outputs providing high reliability and a 24 V DC positive source, it ensures efficient control in PLC applications. Ideal for manufacturing process control and building management systems, this module features LED status indicators and short-circuit protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIG 16Q TRANS SOURCE 0.5A | 16-Channel Digital Output | Solid State Reliability | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBMXDDO1602
Alternatively Known As: Modicon M340 Digital Output Module, SCHBMXDDO1602, 16 Channel Output Module, Schneider Electric Digital Output, PLC Output Module
Technical Specifications
- Number of outputs: 16
- Output type: Solid state (transistor)
- Output voltage: 24 V DC positive
- Maximum output current: 0.5A per channel
- Isolation: 500 V AC (between channels and logic)
- Response time: <1 ms
- Mounting: DIN rail
- Status indication: LED per channel
- Short-circuit and overload protection
- Dimensions (H x L x W): 100mm x 120mm x 32mm
- Weight: 0.2 kg
Key Features
- 16-channel digital output module
- Solid state outputs for high reliability
- 24 V DC positive source
- Output current: 0.5A per channel
- DIN rail mountable
- LED status indicators for each channel
- Short-circuit and overload protection
Professional Installation Requirements
- Installation must be performed by a qualified industrial electrician or automation technician, following all relevant safety standards.
Applications
- Industrial automation systems
- PLC control panels
- Manufacturing process control
- Building management systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid-state design reduces mechanical wear and extends product lifespan.
- Efficient power usage minimizes energy consumption in automation systems.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal DIG 16Q TRANS SOURCE 0.5A SCHBMXDDO1602 is available for immediate purchase. Ideal for industrial automation and PLC control panel applications.
