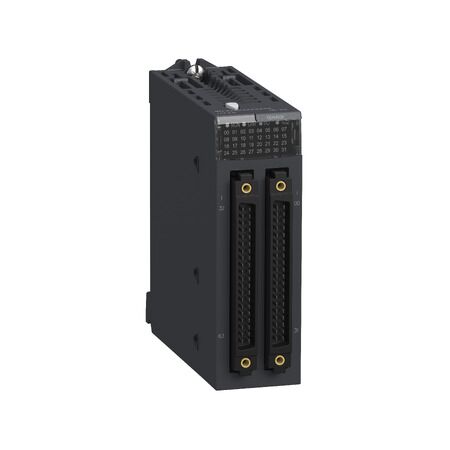

DIG 64I 24 VDC Sink Input Module | 64 Digital Channels | DIN Rail Mountable | LED Status Indicators | @Pack of 1 | by Clipsal
The DIG 64I 24 VDC Sink Input Module is designed for industrial automation systems, featuring 64 digital input channels and a 24 VDC sink input type. Ideal for PLC control panels, this high-density module ensures efficient operation with LED status indicators for each channel, making it perfect for manufacturing process control and building management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DIG 64I 24 VDC Sink Input Module | 64 Digital Channels | DIN Rail Mountable | LED Status Indicators | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBMXDDI6402K
Alternatively Known As: Modicon BMXDDI6402K, 64 Channel Digital Input Module, Schneider Electric 24VDC Sink Input, PLC Input Module
Technical Specifications
- Number of Inputs: 64
- Input Type: 24 VDC sink
- Input Current: 3.5 mA per channel
- Input Voltage: 19.2–30 VDC
- Isolation: 500 V between channels and logic
- Response Time: 4 ms
- Mounting: DIN rail
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Dimensions (H x L x W): 100mm x 120mm x 32mm
- Weight: 0.25 kg
Key Features
- 64 digital input channels
- 24 VDC sink input type
- High-density input module for compact installations
- LED status indicators for each channel
- DIN rail mountable
- Compatible with Modicon M340/M580 PLCs
Professional Installation Requirements
- Installation must be performed by a qualified industrial electrician or automation technician to ensure correct wiring and system integration.
Applications
- Industrial automation systems
- PLC control panels
- Manufacturing process control
- Building management systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports efficient automation, reducing manual intervention and energy waste.
- Compact design minimizes material usage and panel space.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal DIG 64I 24 VDC Sink SCHBMXDDI6402K is available for immediate purchase. Ideal for industrial automation and PLC control panel applications.
