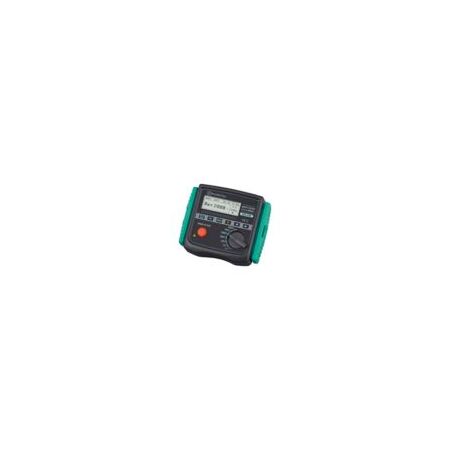

Digital 4-Wire Earth Tester | 200 kΩ Max Resistance | Backlit LCD & USB Communication by Eaton
Digital 4-wire earth tester with a maximum resistance of 200 kΩ and backlit LCD display—ideal for electrical safety testing. Built for qualified electricians, it features multiple test ranges and USB communication for easy data transfer.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital 4-Wire Earth Tester | 200 kΩ Max Resistance | Backlit LCD & USB Communication by Eaton
Brand: Eaton
SKU: 041060029A
Alternatively Known As: Earth Resistance Tester, Digital Earth Tester, 4-Wire Earth Tester, Ground Resistance Meter
Technical Specifications
- Display type: LCD with backlight
- Input frequency range: 40 Hz to 500 Hz
- Resistance measurement max: 200 kΩ
- Test ranges: 2/20/200/2000Ω/20kΩ/200kΩ
- Measurement capabilities: Earth resistance
- Test meter functions: Backlight, Logging, Capture recording mode
- Safety category rating: CAT III 300V, CAT IV 150V
- Earth resistance test methods: 2-wire, 3-wire, 4-wire
- Communication: USB
- Package contents: Earth resistance test leads (red/yellow/green/black), simplified measurement test leads, auxiliary earth spikes x4, cord reels x4, KEW report software, soft carry case, shoulder strap, batteries, instruction manual
- Dimensions (H x L x W): 167mm x 185mm x 89mm
- Weight: 0.9 kg
Key Features
- Digital 4-wire earth resistance measurement
- Backlit LCD display for easy reading
- Multiple test ranges: 2/20/200/2000Ω/20kΩ/200kΩ
- Supports 2-wire, 3-wire, and 4-wire earth resistance test methods
- Logging and capture recording mode
- USB communication for data transfer
- Safety category rating CAT III 300V and CAT IV 150V
Professional Installation Requirements
- Professional use by qualified electricians or technicians is recommended to ensure accurate testing and compliance with safety standards.
Applications
- Electrical safety testing
- Earth resistance measurement in industrial and commercial installations
- Verification of grounding systems in construction and maintenance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Accurate earth resistance measurement helps ensure electrical safety and reduces risk of electrical faults and fires.
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 4106 Digital 4-Wire Earth Tester by Eaton is available now for immediate purchase. Ideal for electrical safety testing and earth resistance measurement in industrial, commercial, and construction applications.
