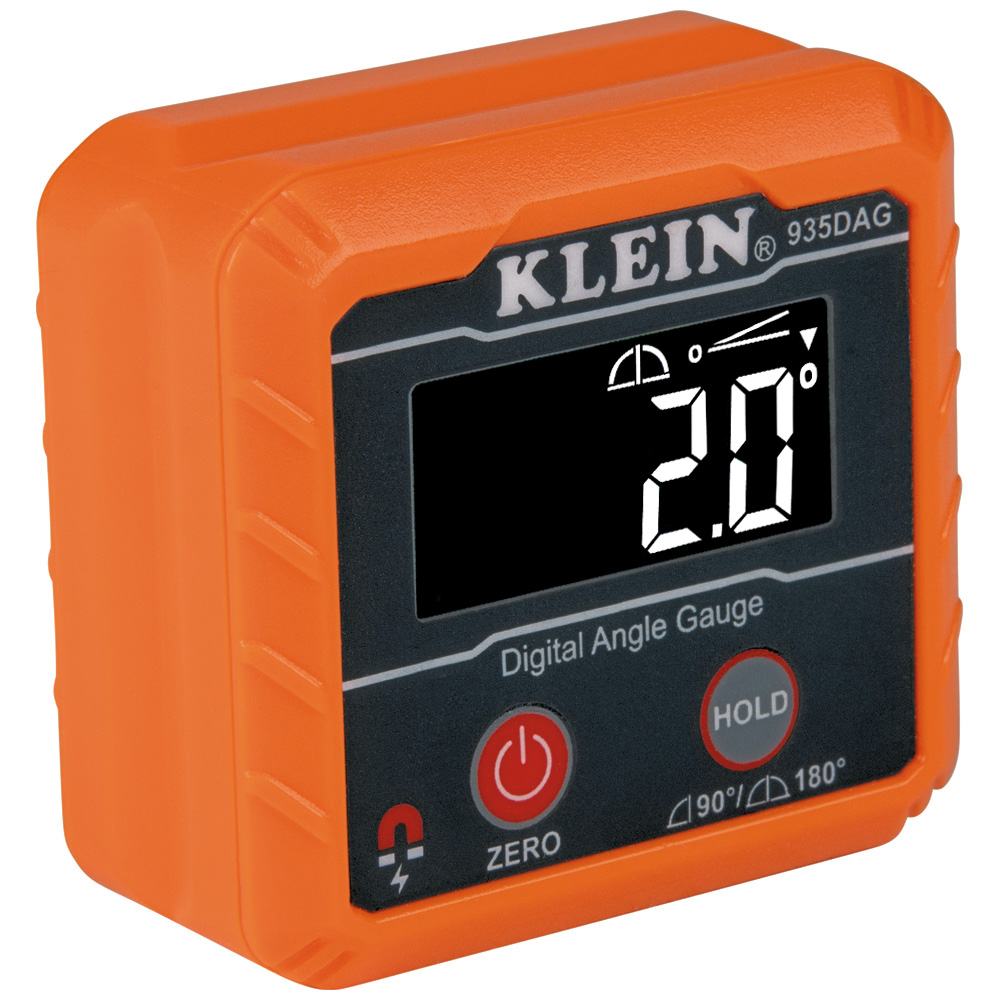

Digital Angle Gauge and Level | Dual Measurement Ranges | High Visibility LCD | Magnetic Base | @Each by Wattmaster
The Digital Angle Gauge and Level is perfect for measuring and setting precise angles in woodworking, electrical, and pipe fitting applications. With dual measurement ranges of 0 to 90 and 0 to 180 degrees, a high visibility reverse contrast LCD, and a strong magnetic base, this tool ensures accuracy and ease of use. Built for professionals and DIY enthusiasts alike, it features an IP42 rating for water and dust resistance, making it a reliable choice for any job.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Angle Gauge and Level | Dual Measurement Ranges | High Visibility LCD | Magnetic Base | @Each by Wattmaster
Brand: Wattmaster
SKU: A-935DAG
Alternatively Known As: Digital Angle Finder, Electronic Angle Gauge, Magnetic Angle Level, Digital Protractor
Technical Specifications

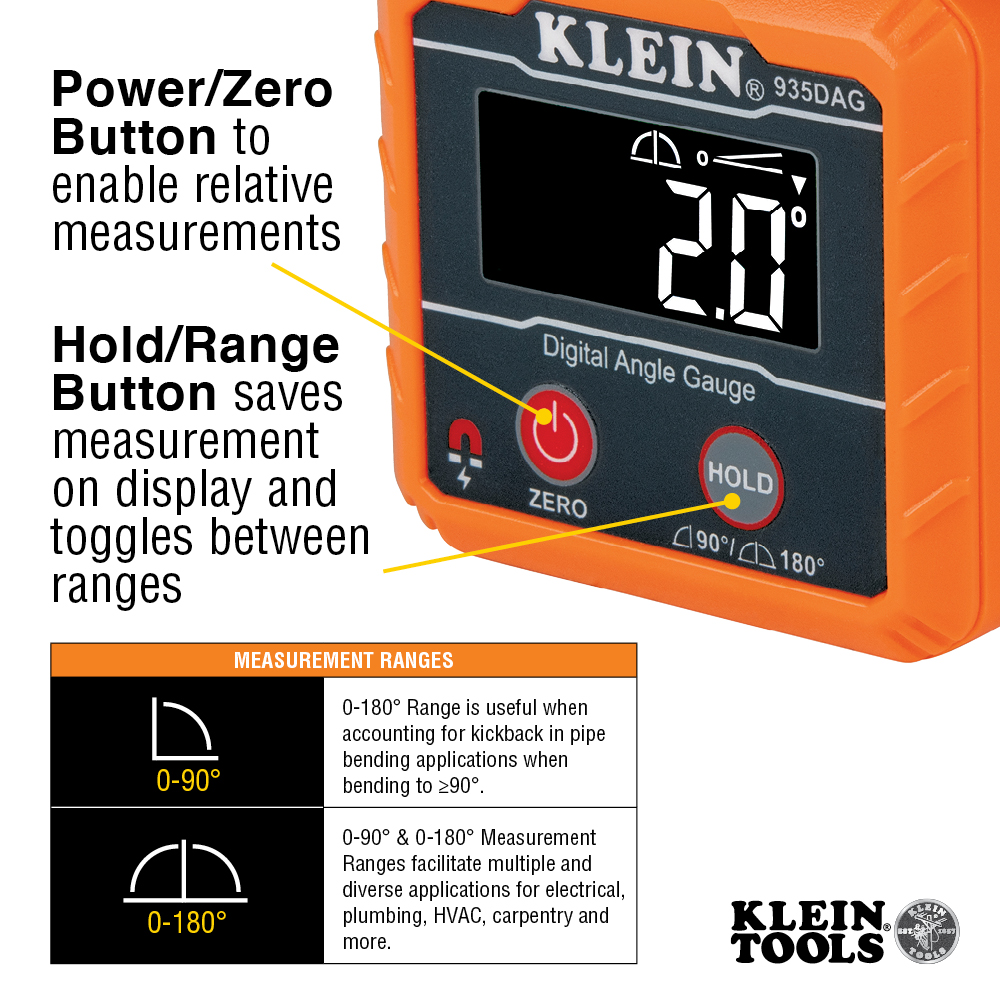

- Measurement Ranges: 0 to 90 degrees and 0 to 180 degrees
- Accuracy: ±0.1° from 0° to 1°, 89° to 91°, 179° to 180°; ±0.2° at other angles

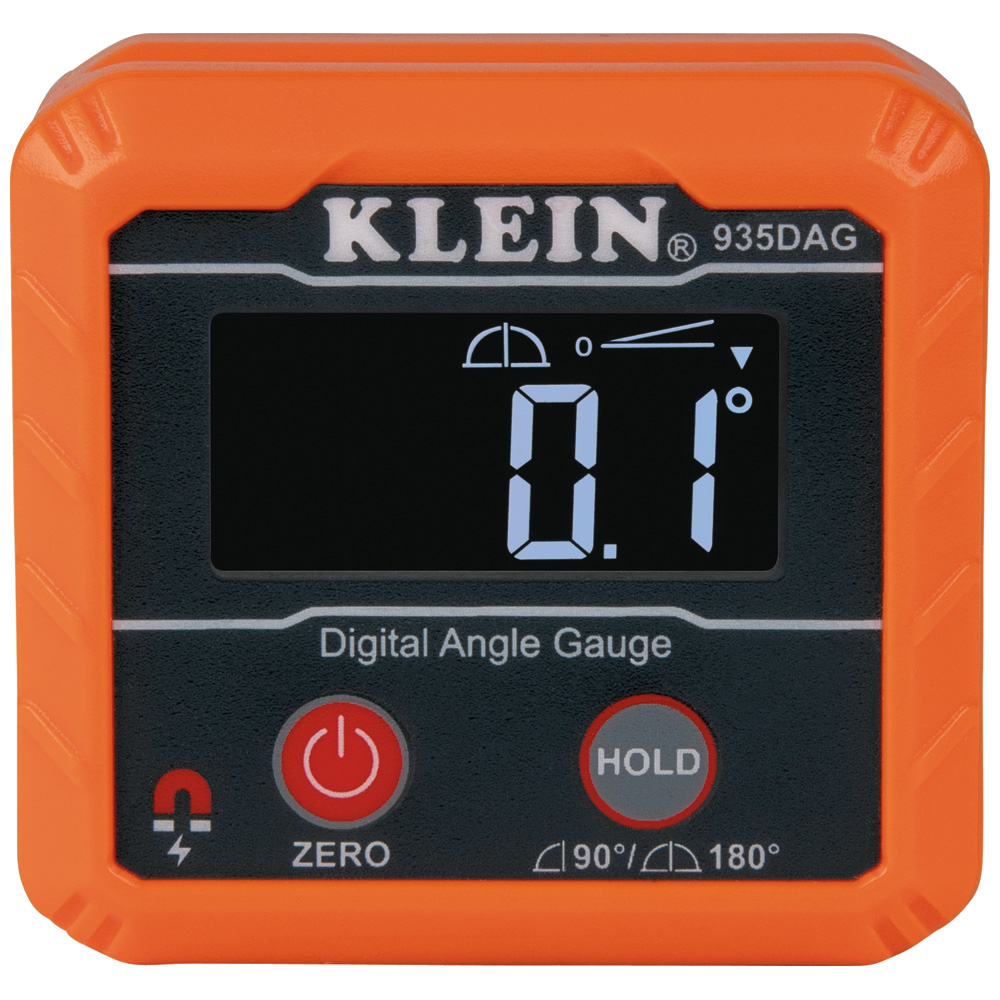

- Display: High visibility reverse contrast LCD
- Ingress Protection: IP42 (water and dust resistant)
- Magnet Type: Permanent Rare Earth
- Material: ABS Plastic housing and electronic components
- Drop Protection: 2 meters
- Power: 2 x 1.5V AAA batteries included
- Dimensions (H x L x W): 56mm x 60mm x 30mm
- Weight: 0.1 kg

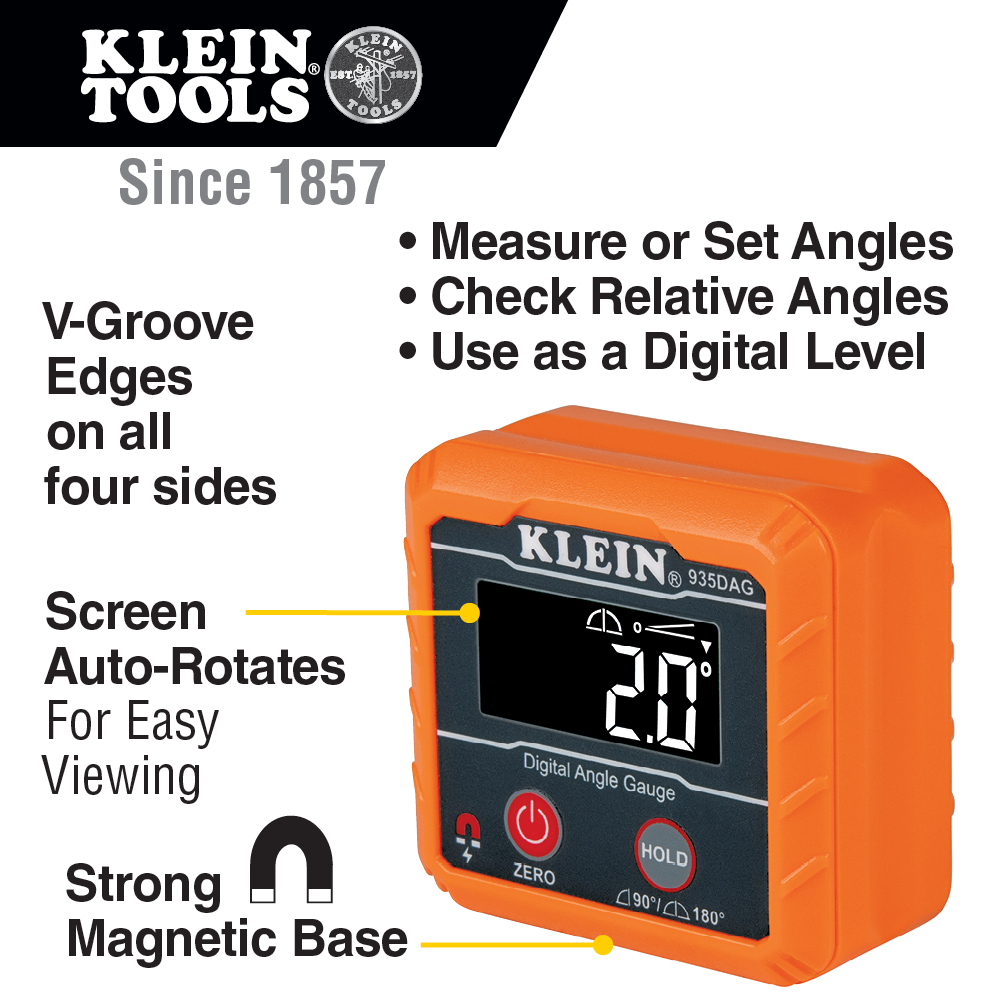

Key Features
- Measures or sets angles with dual ranges of 0 to 90 and 0 to 180 degrees
- High visibility reverse contrast display for easy reading in low light
- Strong magnetic base for attachment to ferromagnetic surfaces

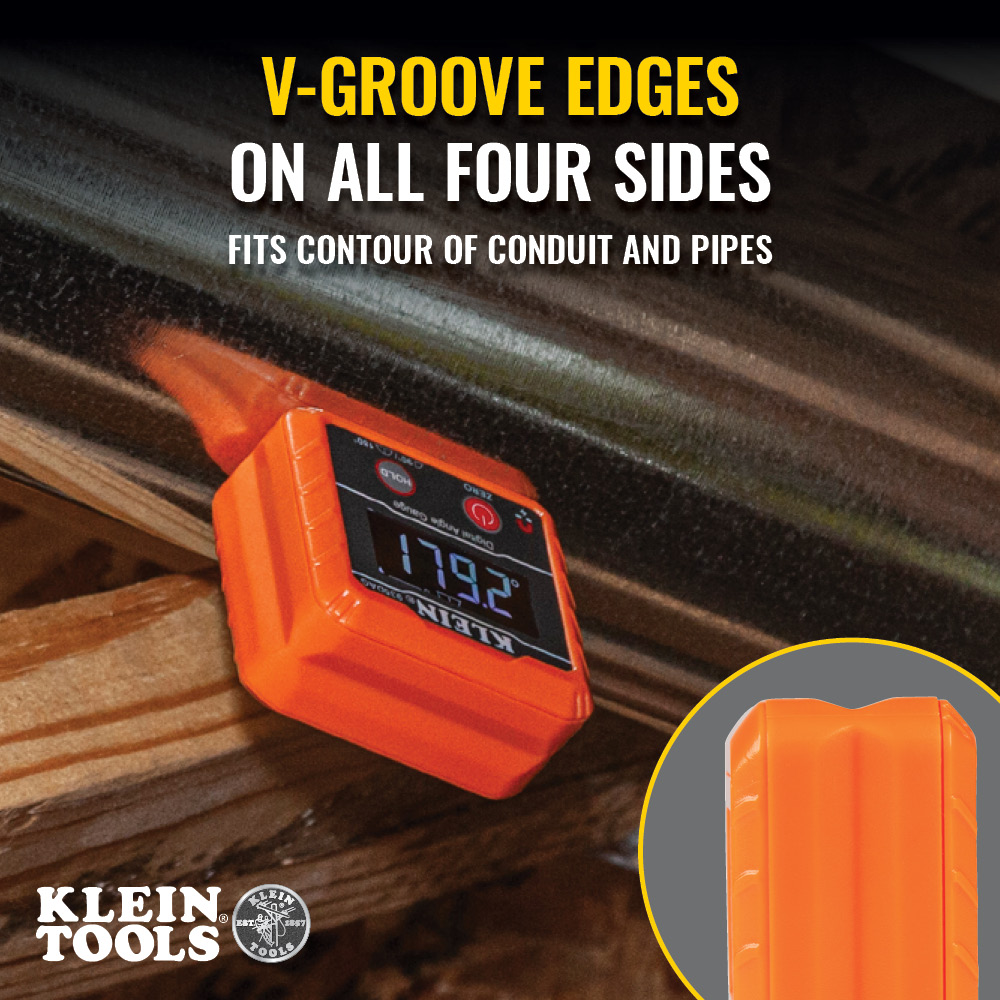

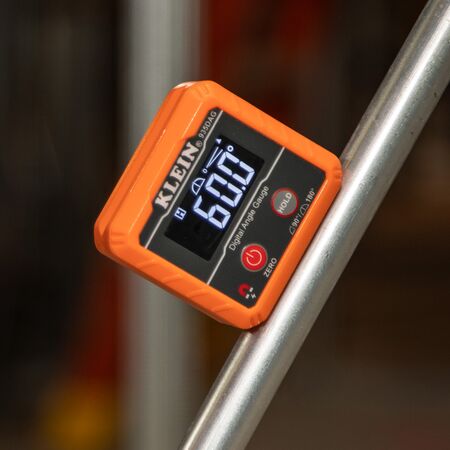

- V-groove edges for optimal alignment on pipes and conduits

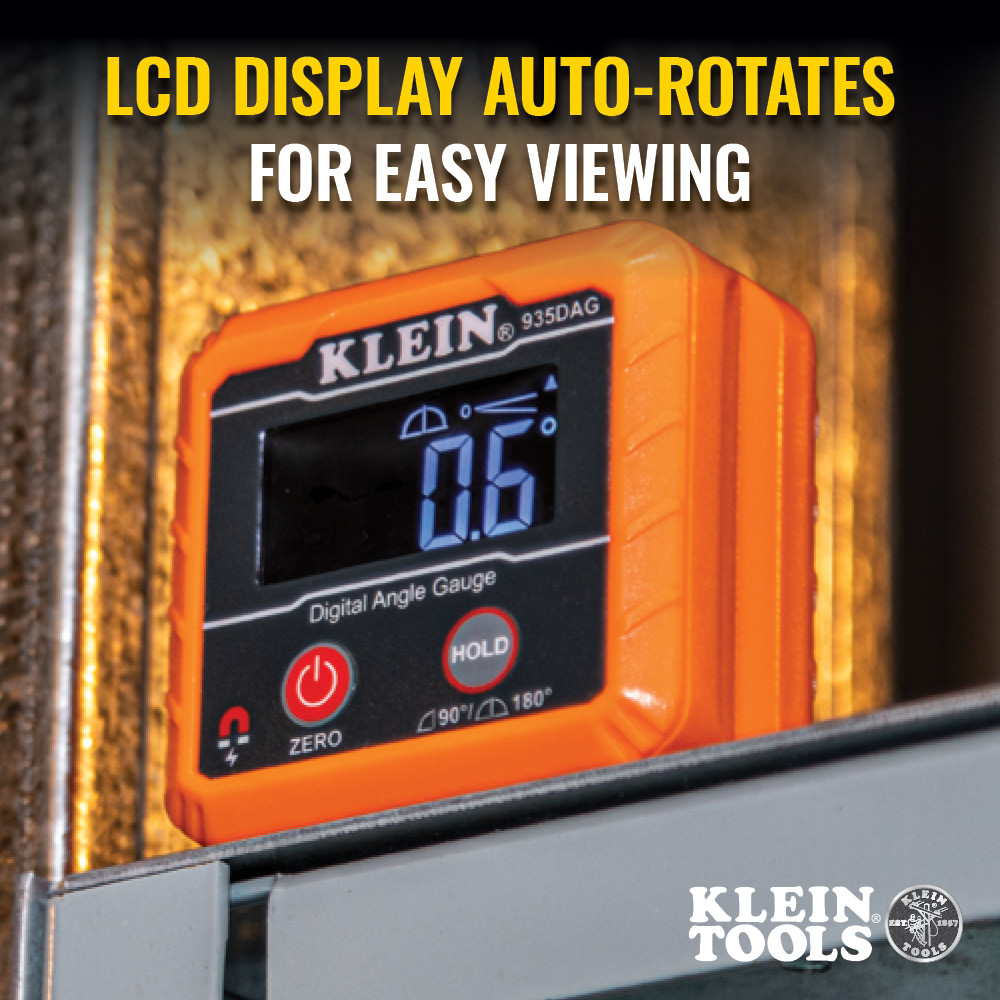

- Display auto-rotates for easy viewing when upside down
- Water and dust resistant with IP42 rating

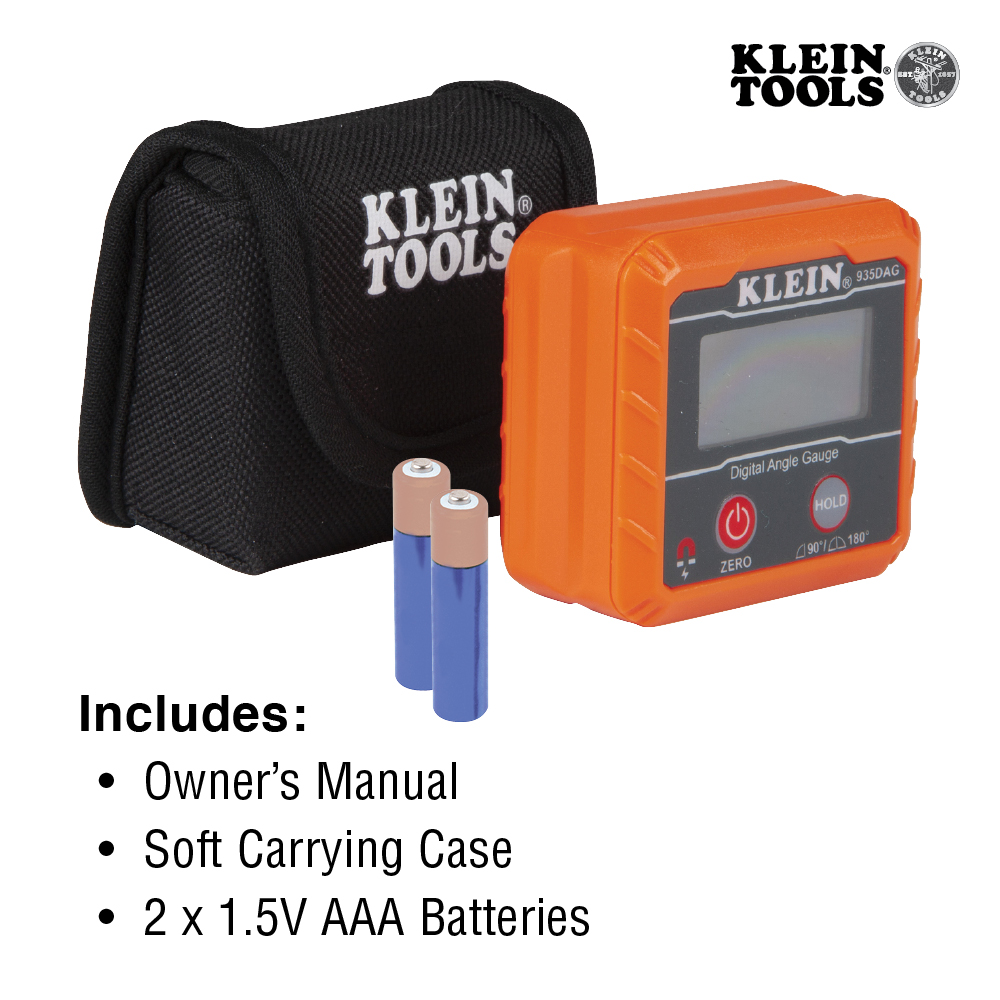

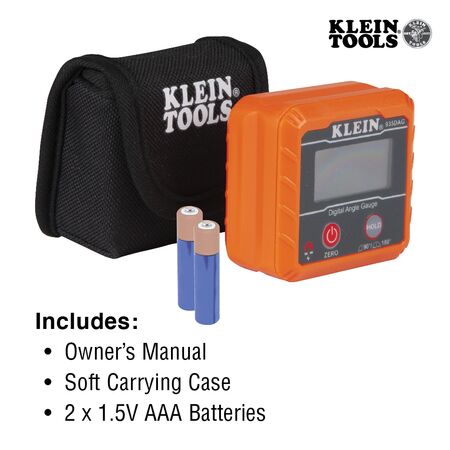

- Includes soft carrying case and two AAA batteries
Professional Installation Requirements
- No professional installation required. Follow user manual instructions for safe and accurate operation.
Applications

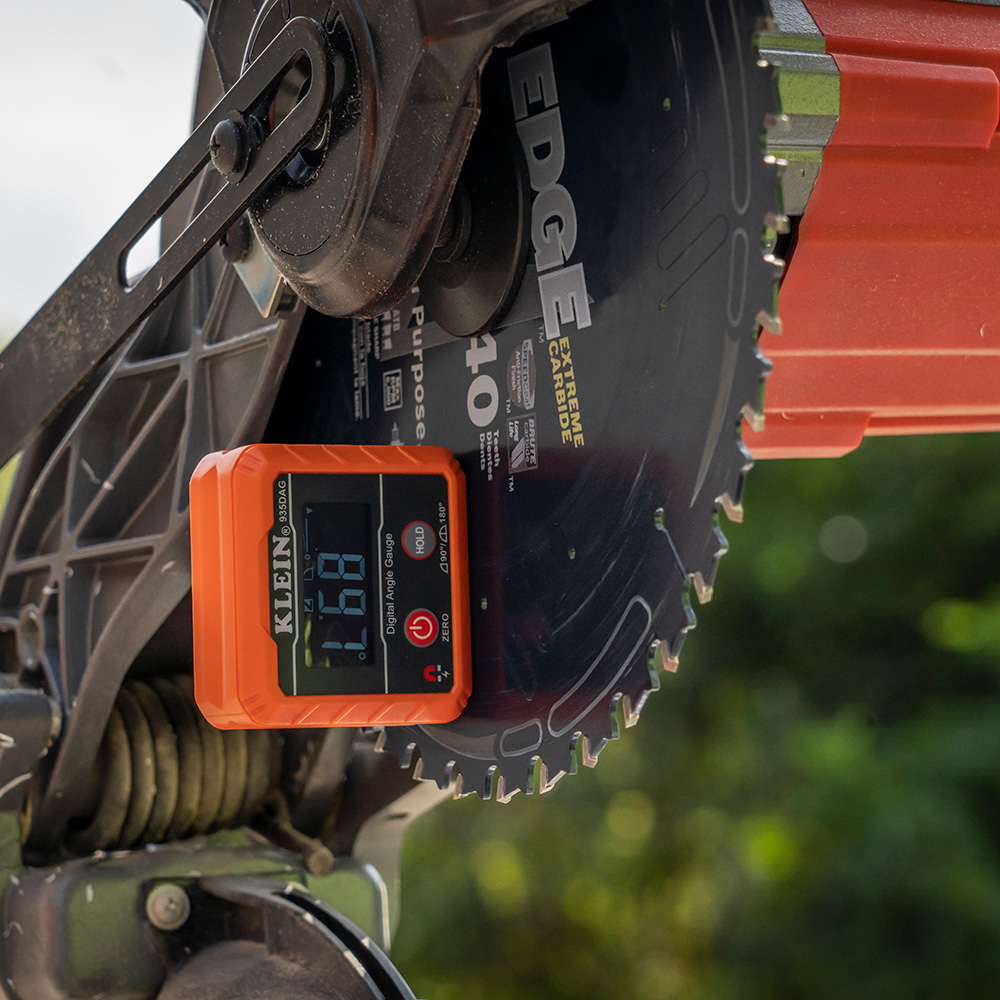

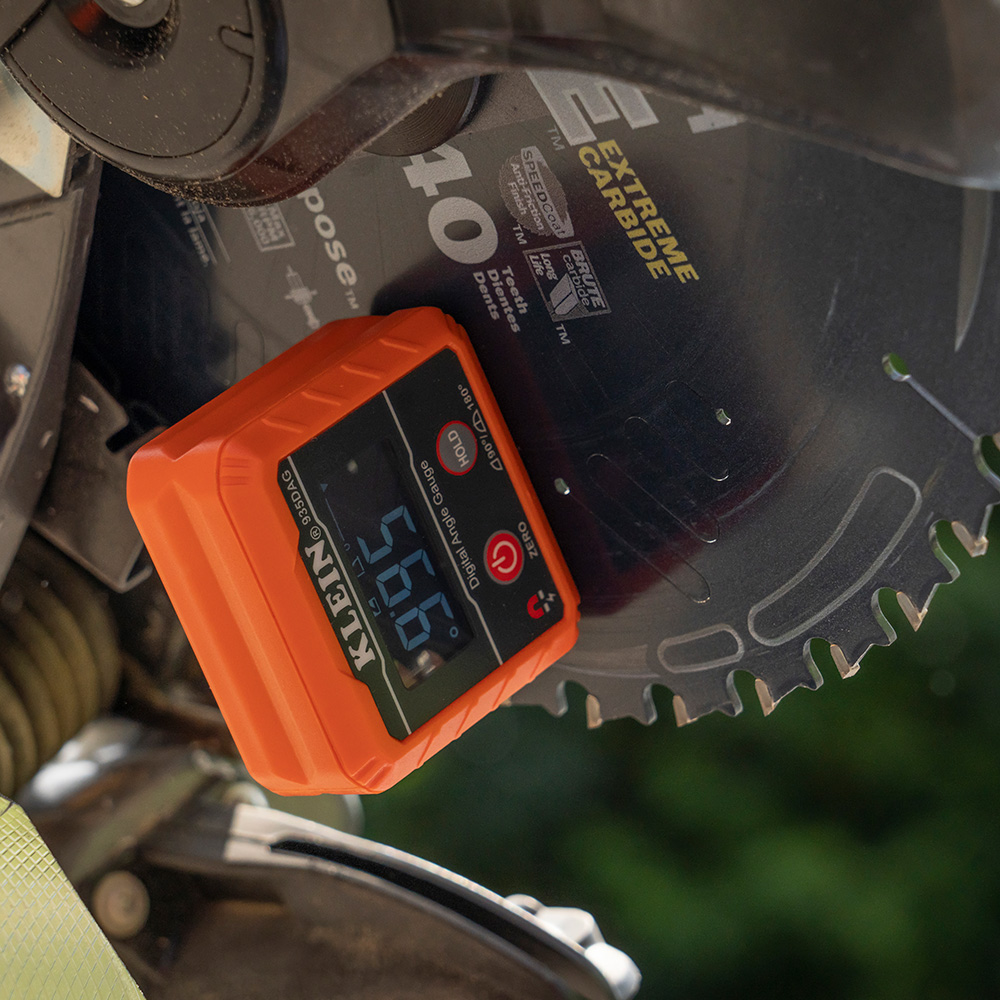

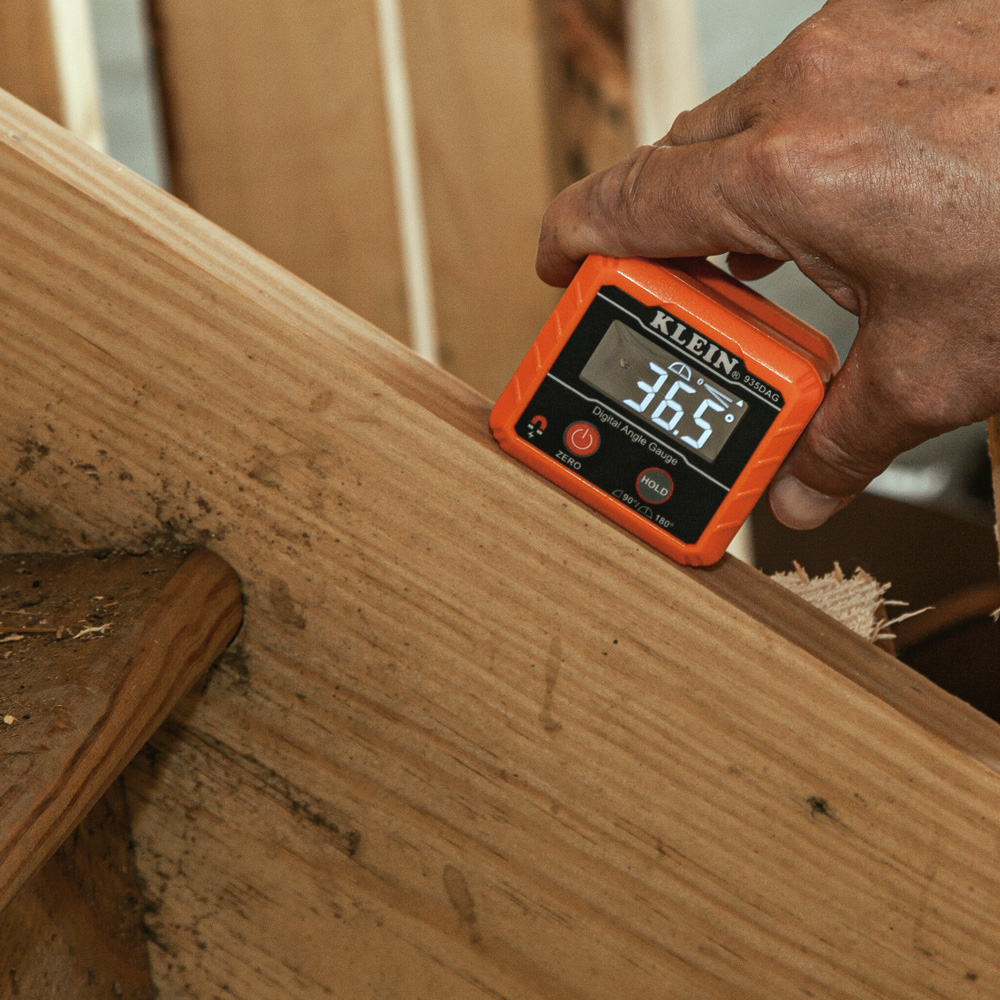

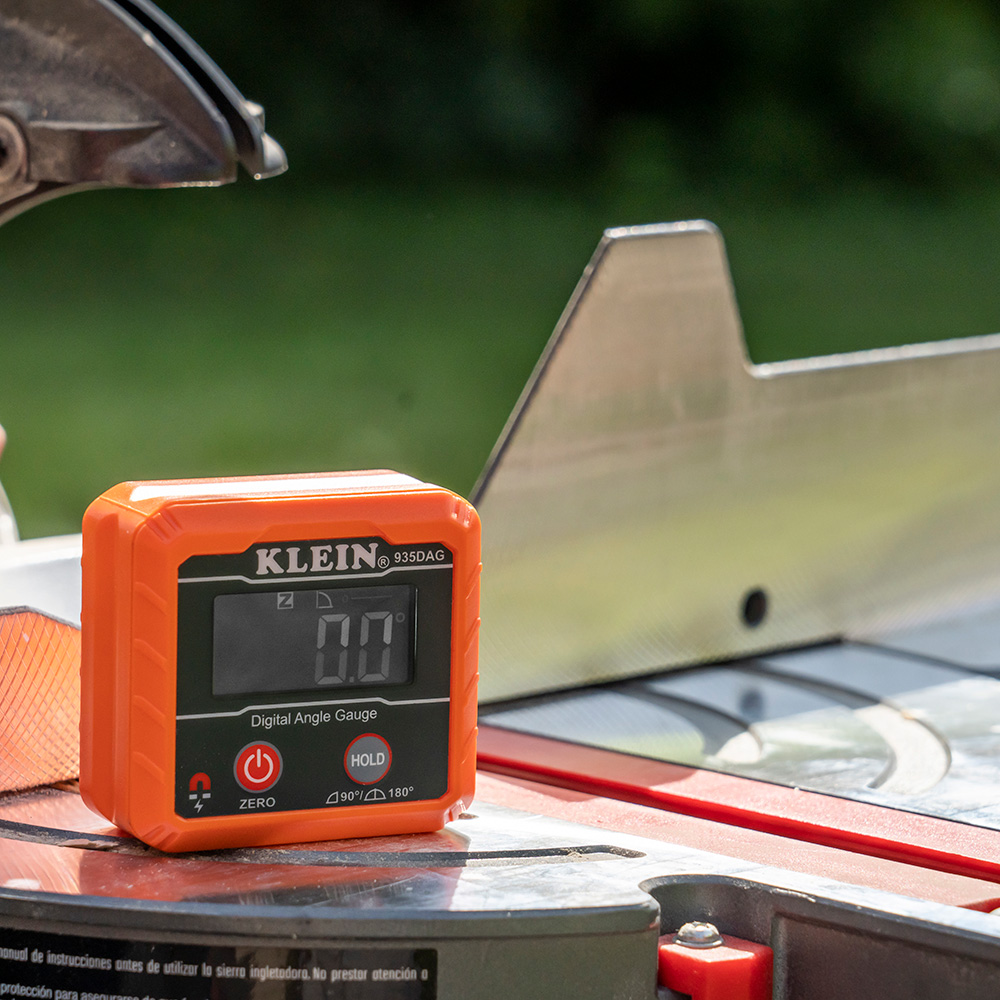

- Woodworking: Measuring and setting precise angles

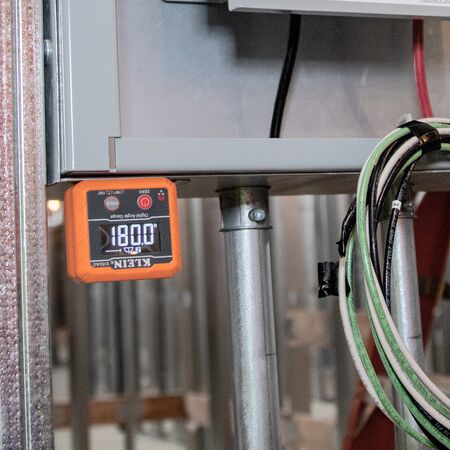

- Electrical: Bending conduit and installing electrical panels

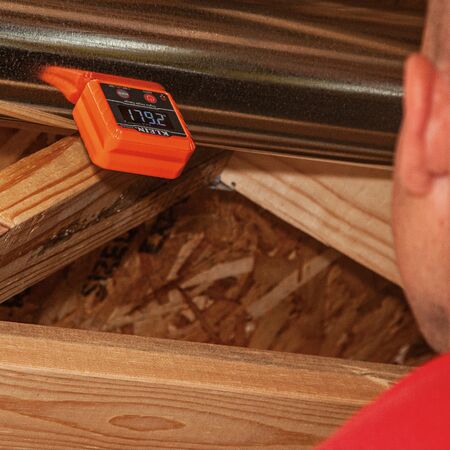

- Machinery: Checking relative angles and alignment

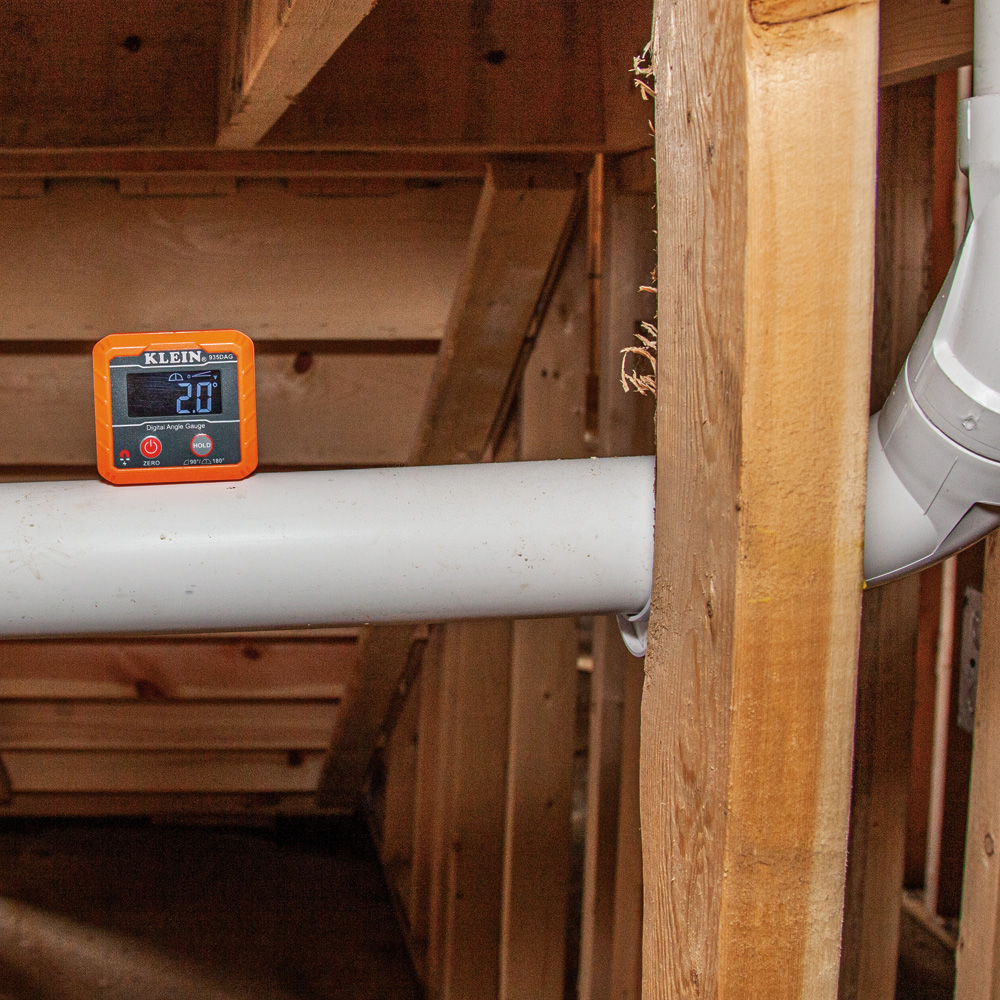

- Pipe fitting: Measuring kickback in pipe bending
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces waste by extending product life
- Battery-powered with low energy consumption
Warranty Information
Standard manufacturer warranty applies. Refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Digital Angle Gauge and Level is available for immediate purchase, ideal for professionals and DIY enthusiasts in woodworking, electrical, and pipe fitting applications.
