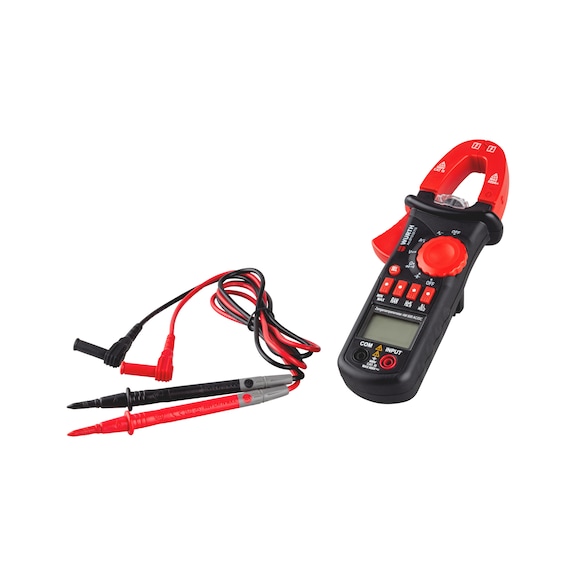

Digital Clamp Meter | 6000 Digits LCD | AC/DC Current & Voltage Measurement | CAT III 600V Certified | by Wurth
The Digital Clamp Meter is designed for professional electrical diagnostics, featuring a 6000 digits LCD display and the ability to measure AC/DC current up to 600 A and voltage up to 600 V. Ideal for electricians and trained professionals, it offers resistance measurement up to 60 MΩ and includes a min/max key for tracking values. With its energy-efficient design and automatic shut-off, this clamp meter is perfect for trade and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Clamp Meter | 6000 Digits LCD | AC/DC Current & Voltage Measurement | CAT III 600V Certified | by Wurth
Brand: Wurth
SKU: 71553715
Alternatively Known As: Digital Clamp Meter, TRMS Clamp Meter, Clip-On Ammeter, AC/DC Current Meter
Technical Specifications
- Display: 6000 digits LCD
- Enclosure diameter: 23 mm
- Current measuring range: 10 mA to 600 A AC/DC
- Voltage measuring range: 1 mV to 600 V AC/DC
- Resistance measuring range: 0.1 Ohm to 60 MOhm
- Overvoltage protection category: CAT III/600 V
- IP protection class: IP20
- Power supply: 3 rechargeable batteries
- Conforms to EN Standard 61010-2-032
- Dimensions (H x L x W): 35mm x 210mm x 80mm
- Weight: 0.3 kg
Key Features
- Certified for safe use in CAT III 600 V environments
- Measures AC/DC current up to 600 A and voltage up to 600 V
- Resistance measurement up to 60 MΩ
- Min/max key for displaying maximum, minimum, or difference values
- Manual range switchover and autorange toggle
- Display hold function
- Automatic shut-off after 15 minutes
- Fused inputs for device protection
- LCD display with 6000 digits
- LED measuring point illumination
Professional Installation Requirements
- No professional installation required; suitable for use by qualified electricians and trained professionals.
Applications
- Professional electrical and electronic system diagnostics
- Trade and industrial electrical measurements
- AC/DC current and voltage measurement
- Resistance, continuity, diode, frequency, and capacity testing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient design reduces power consumption with automatic shut-off
- Durable construction minimizes waste and extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
The Wurth Digital Clip-On Ampere Meter AM 600 is available now for immediate purchase. Ideal for professional electrical diagnostics and industrial applications.
