Digital Input Output Module | 230V | Smart Control | Acti9 Compatible by Clipsal
Digital input output module with 230V supply and smart control—ideal for smart home systems and building automation. Built for enhanced functionality, compatible with Acti9 range, and features local signaling LEDs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

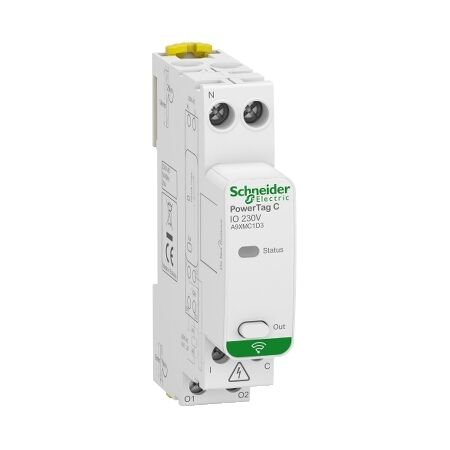

Product Name/Title: PowerTag, Digital input output module, C IO 230V
Brand: Clipsal
SKU: A9XMC1D3
Alternatively Known As: PowerTag Control Module, Digital I/O Module, Smart Control Module
Technical Specifications
- Rated supply voltage: 230 V AC (+/- 20 %)
- Network frequency: 50/60 Hz
- Power consumption: 2 VA
- Digital input: 1 dry contact 230 V AC 2 mA
- Digital output: 1 dry contact 230 V 0.01...2 A AC
- Mechanical durability: 100,000 cycles for output
- IP degree of protection: IP20 casing, IP40 front face
- Operating temperature: -25...60 °C
- Pollution degree: 3
- Overvoltage category: III
- Dimensions (H x L x W): 85mm x 62mm x 18mm
- Weight: 0.116 kg
Key Features
- Digital input and output module for smart control.
- Compatible with Acti9 range for enhanced functionality.
- Local signaling with green, orange, and red LEDs.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Residential: Smart home systems
- Commercial: Building automation, energy management
Standards & Compliance
- Complies with EN/IEC 61010-1 for safety standards.
Environmental Benefits
- Complies with environmental standards for reduced impact.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal PowerTag Digital Input Output Module C IO 230V is available now for immediate purchase. Ideal for smart home and building automation applications.
