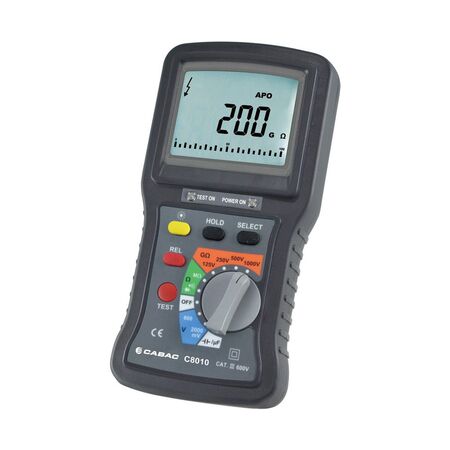

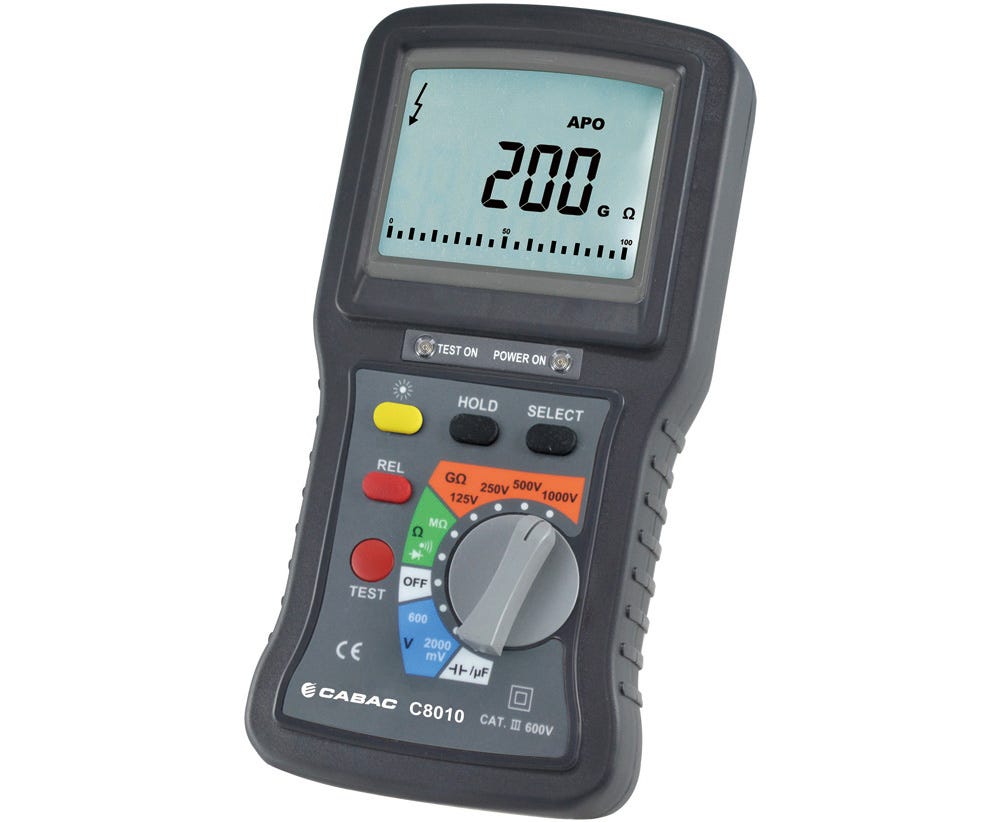

Digital Insulation Tester | 200G-Ohm Range | Large LCD Display | 1000V Test Voltage | @EA of 1 | by Cabac
The Digital Insulation Tester is designed for precise electrical insulation testing, featuring a high range of up to 200G-Ohm and a large 78x67 mm LCD display for clear readings. Ideal for electricians and maintenance professionals, it offers auto-ranging at 1000V test voltage and includes a capacitor test function, ensuring safety and compliance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Insulation Resistance Range: up to 200G-Ohm
- Display: Large LCD 78x67 mm, 3 1/2 digits, 2000 count
- Test Voltage: 1000V with auto-ranging
- Voltage Measurement: up to 600V
- Continuity Test Current: >210 mA
- Safety Rating: IEC61010 CAT III 600V
- Additional Function: Capacitor test
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- High range 200G-Ohm insulation tester with large LCD display (78x67 mm)
- 3 1/2 digits, 2000 count LCD for clear readings
- IEC61010 CAT III 600V safety rating
- Auto-ranging with 200G-Ohm at 1000V test voltage
- Continuity test with >210 mA test current
- Capacitor test function included
Professional Installation Requirements
- Use by qualified electricians or trained professionals is recommended to ensure accurate testing and safety compliance.
Applications
- Electrical insulation testing for industrial and residential electrical systems
- Continuity testing in electrical circuits
- Capacitor testing in electrical components
- Voltage measurement up to 600V in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Helps ensure electrical safety and efficiency, reducing energy waste and preventing electrical faults.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Digital Insulation Tester C8010 is available now for immediate purchase. Ideal for electrical contractors, maintenance professionals, and industrial applications.
