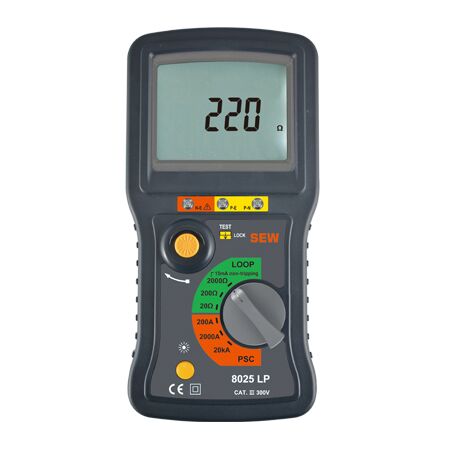

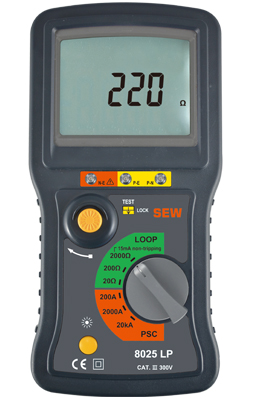

Digital Loop/PSC Tester | 0.01Ω to 2000Ω Measurement Range | Up to 20kA PSC | CAT III 600V Safety Rating | @Pack by Repelec
The Digital Loop/PSC Tester is designed for electrical professionals, offering a measurement range of 0.01Ω to 2000Ω and PSC measurement up to 20kA. With a clear digital display and simple one-button operation, it's perfect for routine safety checks and compliance testing in residential, commercial, and industrial environments. Built to withstand field use, this tester ensures accurate readings and promotes safe electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Loop/PSC Tester | 0.01Ω to 2000Ω Measurement Range | Up to 20kA PSC | CAT III 600V Safety Rating | @Pack by Repelec
Brand: Repelec
SKU: 8025LP
Alternatively Known As: Loop Tester, PSC Tester, Earth Loop Impedance Tester, Prospective Short Circuit Tester, Electrical Safety Tester
Technical Specifications
- Measurement Range: 0.01Ω to 2000Ω (loop impedance)
- PSC Measurement: Up to 20kA
- Voltage Range: 230V/240V AC
- Display: Digital LCD
- Test Lead Length: 1.2m
- Power Supply: Internal battery
- Safety Rating: CAT III 600V
- Dimensions (H x L x W): 180mm x 50mm x 80mm
- Weight: 0.6 kg
Key Features
- Digital display for clear and accurate readings
- Measures earth loop impedance and prospective short circuit current (PSC)
- Simple operation with one-button testing
- Designed for use on 230V/240V systems
- Robust construction for field use
- Automatic data hold and zero adjustment
Professional Installation Requirements
- Should be used by qualified electricians or electrical inspectors familiar with electrical testing procedures.
Applications
- Electrical installation testing
- Routine safety checks in residential, commercial, and industrial environments
- Verification of earth loop impedance and prospective short circuit current
- Compliance testing for electrical contractors and inspectors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Promotes safe and efficient electrical installations, reducing the risk of electrical faults and associated hazards.
- Supports compliance with safety standards, helping to prevent electrical fires and accidents.
Warranty Information
12 months manufacturer's warranty covering defects in materials and workmanship.
Available Now
The Repelec 8025LP Digital Loop/PSC Tester is available for immediate purchase. Ideal for electrical professionals conducting safety and compliance testing in various environments.
