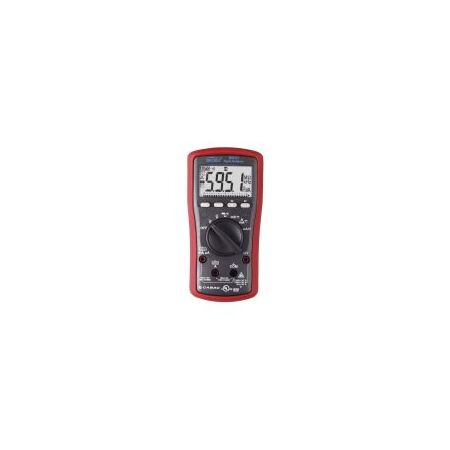

Digital Multimeter 6000 Count CAT III 600V General Purpose Cabac

BRAND: CABAC
SKU: BM251
$313.40 List price: $417.90
+ −
30 Days Return Electricians Unlock Trade Access
Cabac digital multimeter features 6000 count LCD, IEC61010 CAT III 600V rating, and data hold and electric field test. Ideal for daily contractor use.

Alternatively Known As: CABAC BM251 DMM, 6000 Count Digital Multimeter, Contractor Multimeter

Technical Specifications
  • Model: BM251
  • Display: 3 5/6-digit, 6000-count LCD with analogue bar graph
  • Measurement Type: Average sensing; not True RMS
  • AC Voltage Range: 60 mV to 1000 V
  • DC Voltage Range: 60 mV to 1000 V
  • AC/DC Current Range: 600 µA to 10 A
  • Resistance Range: 600 Ω to 60 MΩ
  • Frequency Range: 5 Hz to 500 kHz logic level; 5 Hz to 10 kHz line level
  • Safety Rating: CAT II 1000 V, CAT III 600 V and CAT IV 300 V AC/DC
  • Safety Compliance: IEC/EN 61010-1; double-insulated construction
  • Features: Data hold, relative measurement, electric-field detection, auto/manual ranging and beep-jack input warning
  • Power Supply: 2 x 1.5 V AAA batteries
  • Included Accessories: Test leads, protective holster, batteries and operating manual
  • Optional Interface: BRUA-20X USB/RS232 PC interface kit
  • Dimensions (H x L x W): 50mm x 161mm x 80mm
  • Weight: 0.34 kg
Key Features
  • Large 6000-count LCD for general electrical measurements
  • CAT III 600 V rating for building-installation measurements
  • Electric-field detection for identifying live lines
  • Data hold freezes displayed readings for later viewing
  • Auto-ranging with manual-ranging override
  • Beep-jack warning helps prevent incorrect current-terminal connections
  • Frequency measurement for electrical and control troubleshooting
  • Protective holster supplied with test leads and batteries
Professional Installation Requirements
  • Testing on live or fixed electrical installations should be performed by a suitably qualified electrical worker using the meter and test leads within their rated measurement category and voltage limits. Follow the manufacturer's operating instructions and applicable Australian electrical safety requirements.
Applications
  • General electrical troubleshooting and fault finding
  • Voltage, current, resistance, continuity, diode and frequency testing
  • Testing distribution boards, circuit breakers, switches and fixed wiring within the CAT III 600 V rating
  • Contractor and electrician daily-use measurements
  • Identifying live conductors using electric-field detection
Standards & Compliance
  • AS 61010.1:2003, Reconfirmed 2016, for safety requirements applying to electrical test and measurement equipment
  • IEC/EN 61010-1 safety classification claimed by the manufacturer, including CAT III 600 V
  • AS/NZS 3017:2022 provides guidance for electrical installation verification and specifies suitable measuring equipment requirements
Environmental Benefits
  • Reusable diagnostic instrument supports maintenance and fault finding, helping extend the service life of electrical equipment
  • Replaceable AAA batteries allow battery replacement without discarding the meter
  • Protective holster and durable enclosure can help extend product service life and reduce replacement waste
Warranty Information

CABAC's general warranty is 12 months from the date of purchase where no other product-specific warranty is stated. Warranty excludes misuse, neglect, incorrect installation, calibration, accessories and batteries; Australian Consumer Law rights still apply.

Available Now

Available through CABAC and authorised Australian electrical distributors; contact the distributor to confirm current stock.
