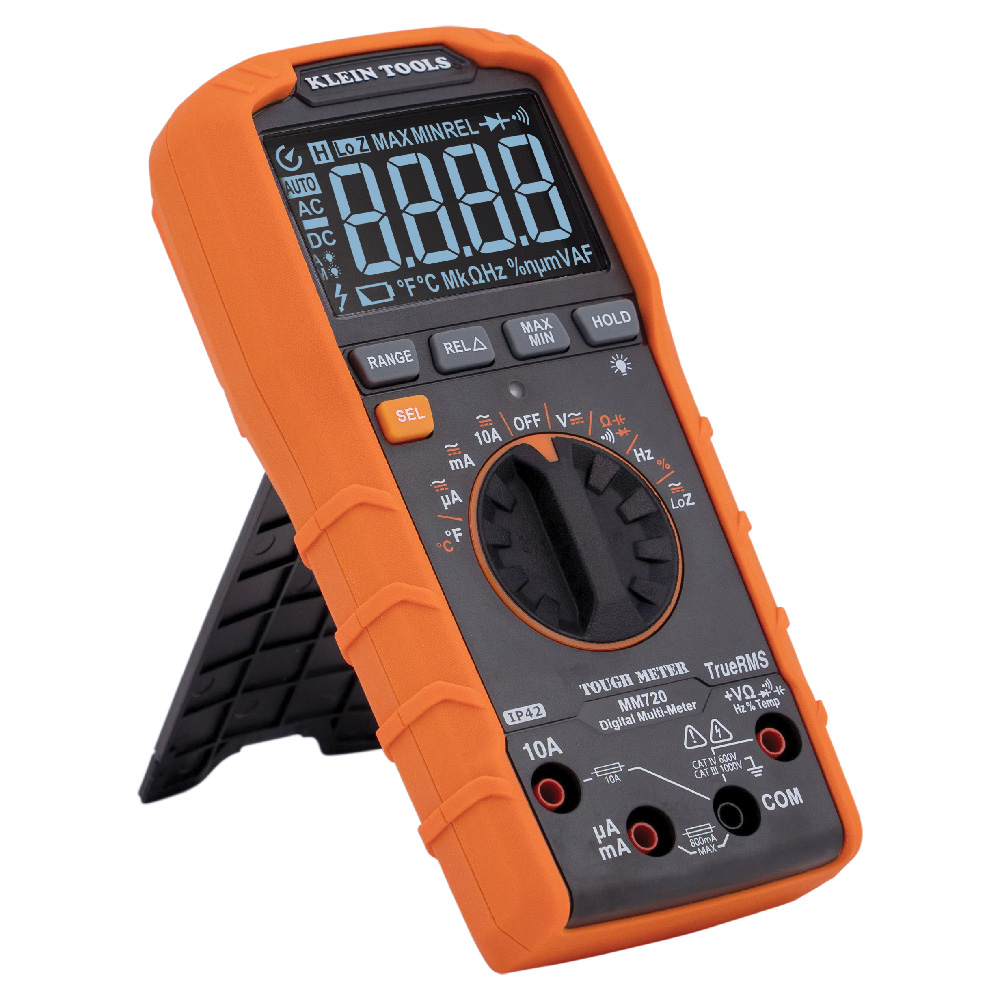

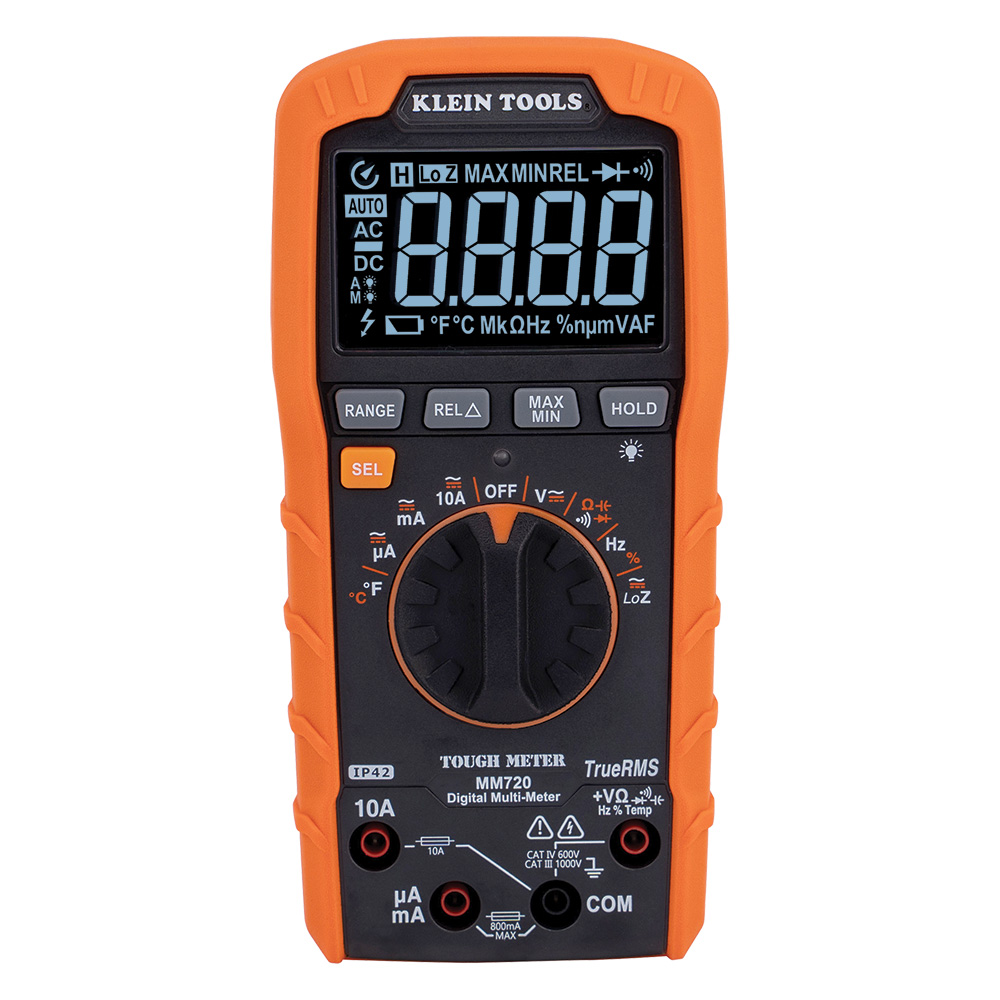

Digital Multimeter | TRMS Auto-Ranging | 1000V Voltage & Low Impedance | by Wattmaster
The Digital Multimeter with TRMS auto-ranging technology is perfect for accurate electrical testing, measuring up to 1000V AC/DC and 10A current. Ideal for residential and light industrial applications, it features a low impedance mode to eliminate ghost voltages and a high-visibility LCD for easy reading. Built for durability, this multimeter is a reliable tool for professionals and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Multimeter | TRMS Auto-Ranging | 1000V Voltage & Low Impedance | by Wattmaster
Brand: Wattmaster
SKU: A-MM720
Alternatively Known As: TRMS Digital Multimeter, Auto-Ranging Multimeter, Electrical Tester, Temperature Multimeter, Low Impedance Multimeter

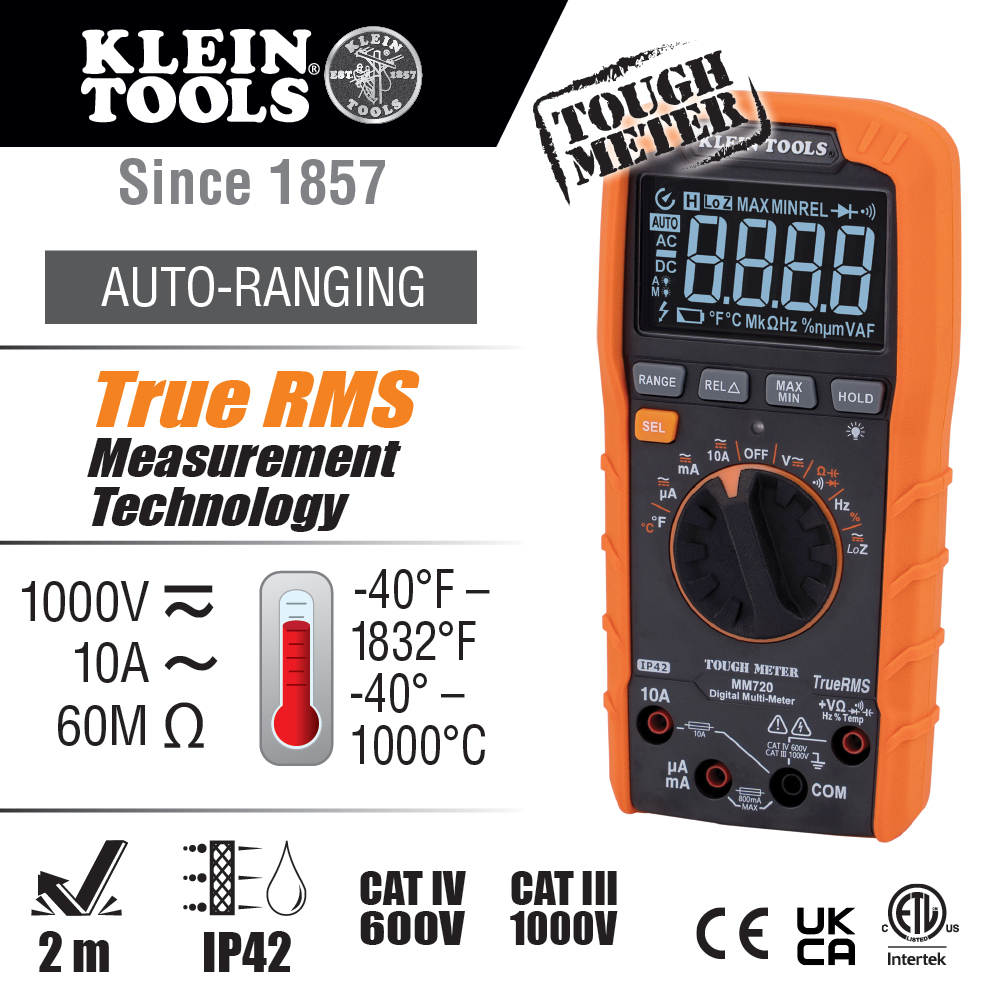

Technical Specifications
- True RMS auto-ranging digital multimeter
- Voltage range: up to 1000 V AC/DC
- Current range: up to 10 A AC/DC
- Resistance range: up to 60 MΩ
- Temperature range: -40° to 1832°F (-40° to 1000°C)
- Capacitance: up to 6000 µF
- Frequency range: 1 Hz to 500 kHz
- Duty cycle measurement
- Diode and continuity testing

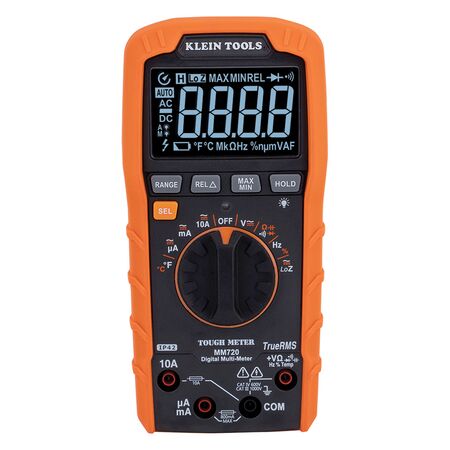

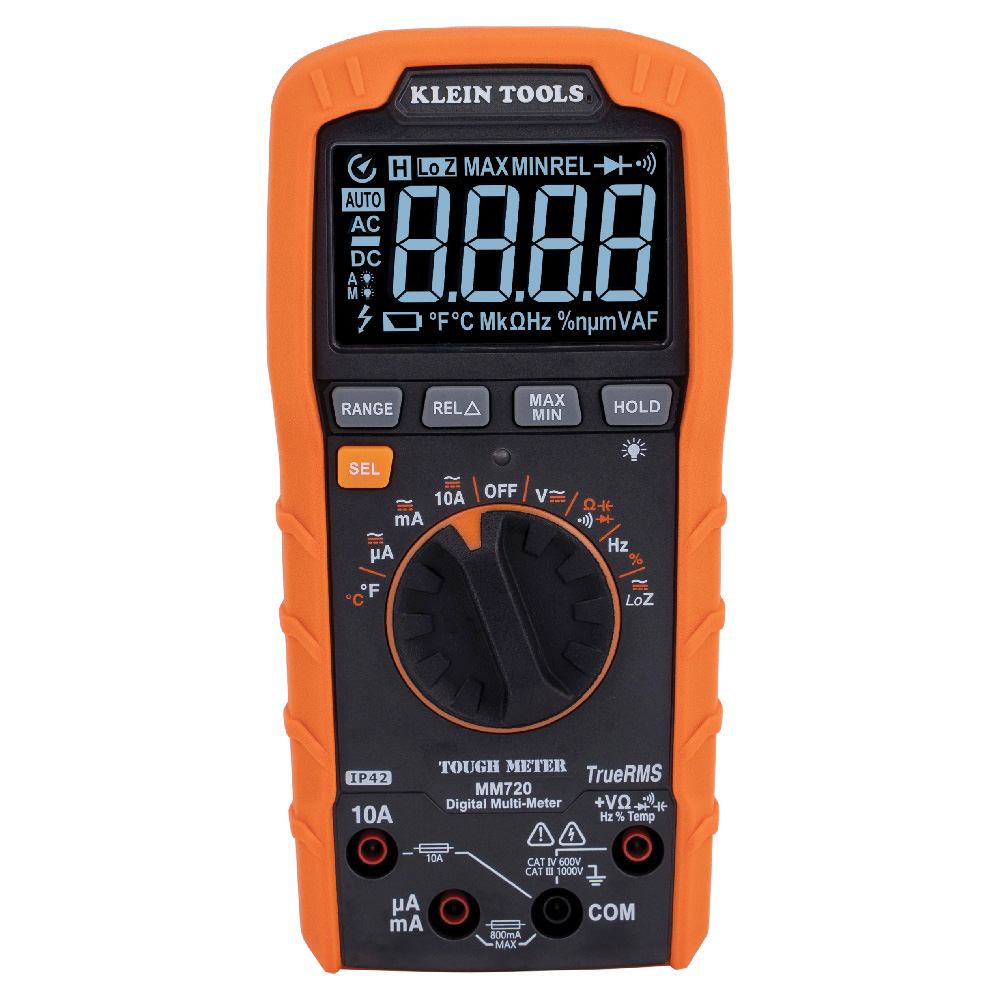

- Display: 6000 count reverse contrast LCD with optical sensor
- Ingress protection: IP42
- Safety rating: CAT IV 600 V, CAT III 1000 V

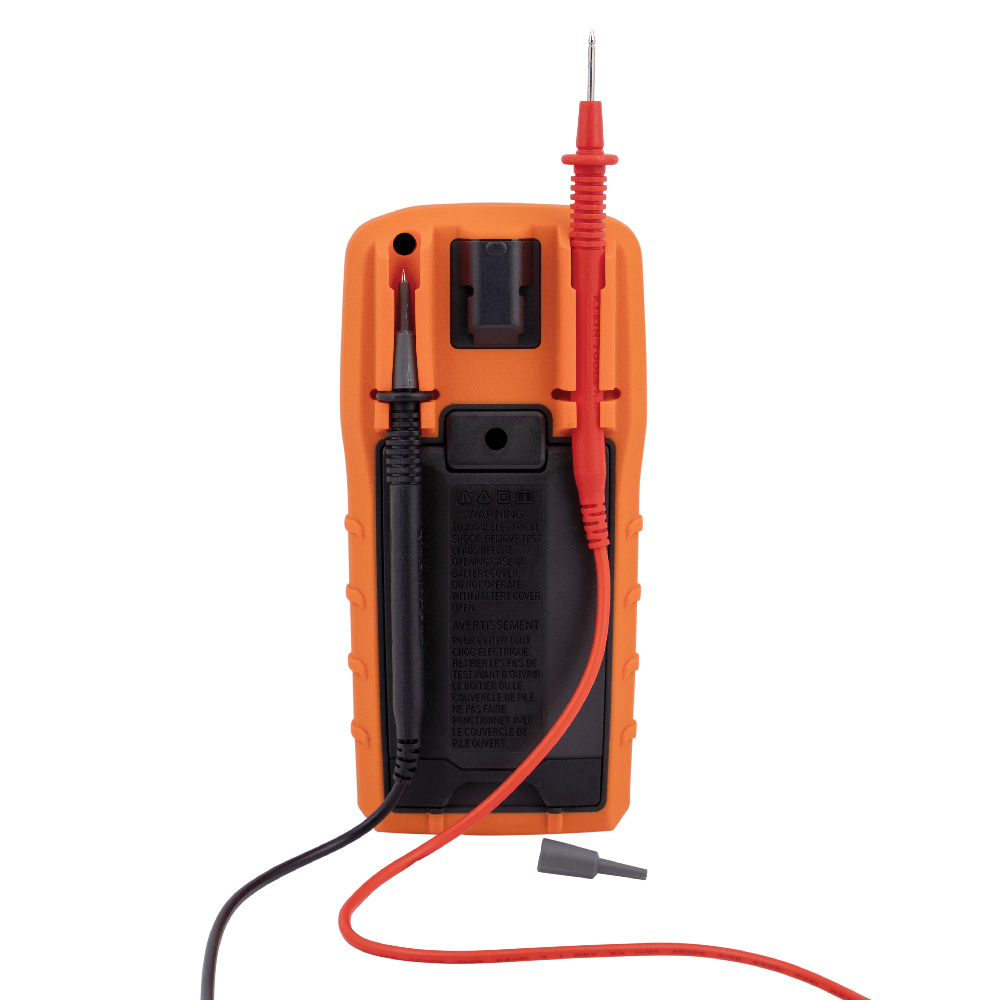

- Power: 2 x AAA batteries
- Drop protection: withstands 2 m drop
- Dimensions (H x L x W): 47mm x 176mm x 85mm
- Weight: 0.345 kg
Key Features
- True RMS technology for accurate AC/DC voltage and current measurements
- Measures up to 1000V AC/DC voltage, 10A AC/DC current, and 60 MΩ resistance
- Temperature measurement from -40° to 1832°F (-40° to 1000°C)
- Low Impedance (LoZ) mode to identify and eliminate ghost or stray voltages

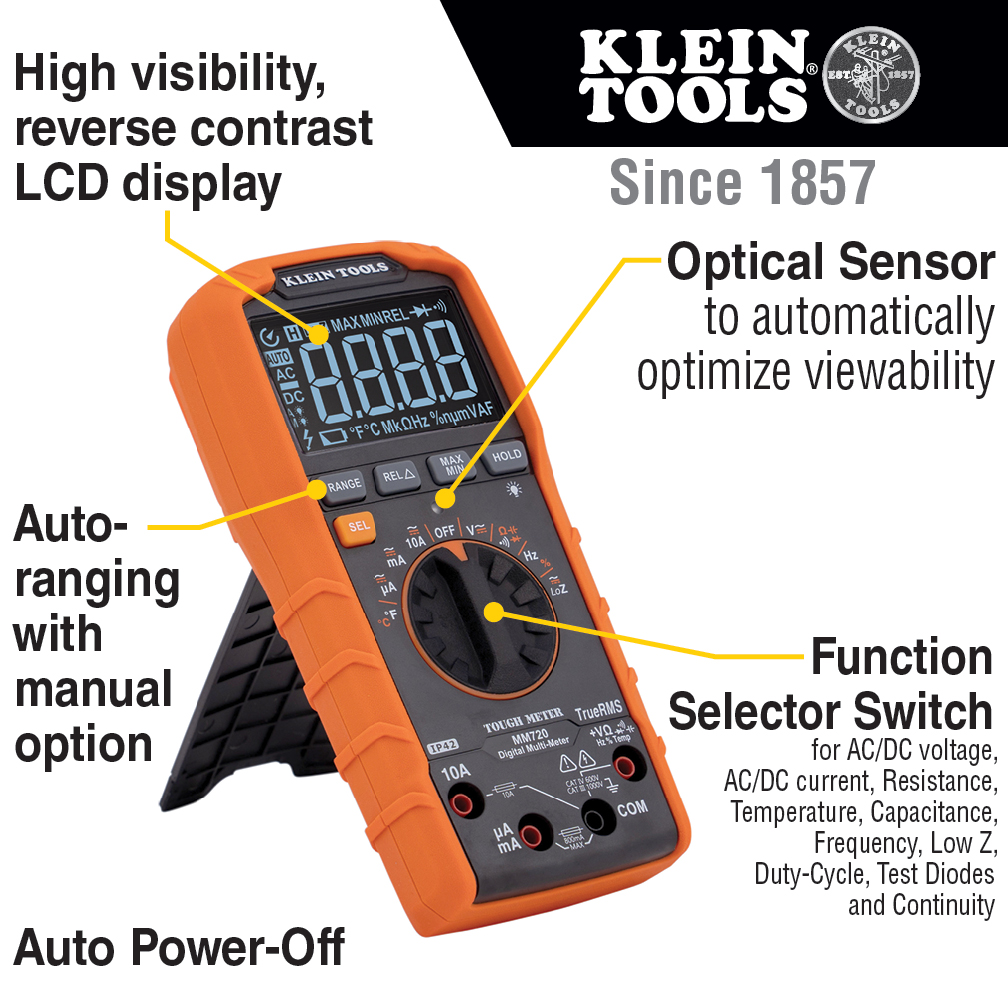

- High visibility reverse contrast LCD with optical sensor for automatic brightness adjustment
- CAT IV 600 V and CAT III 1000 V safety ratings
- Rugged design with IP42 ingress protection and 2 m drop resistance

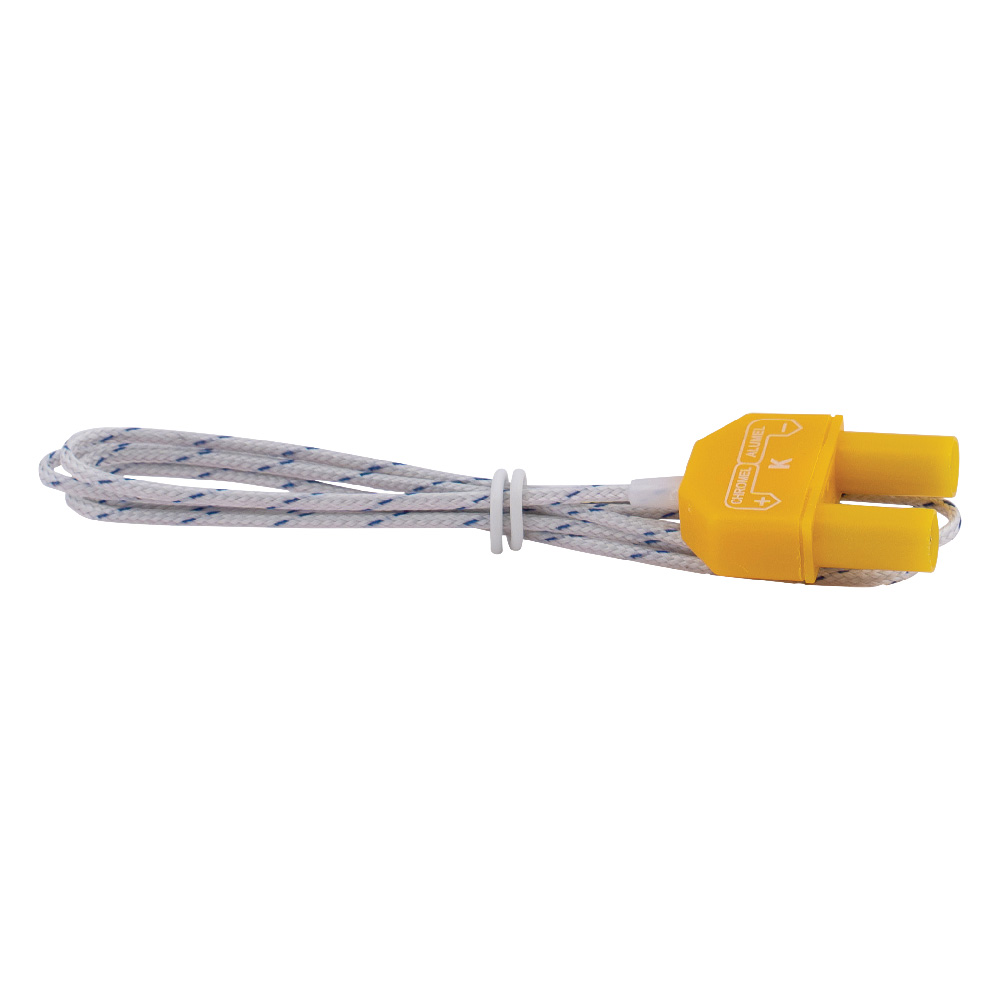

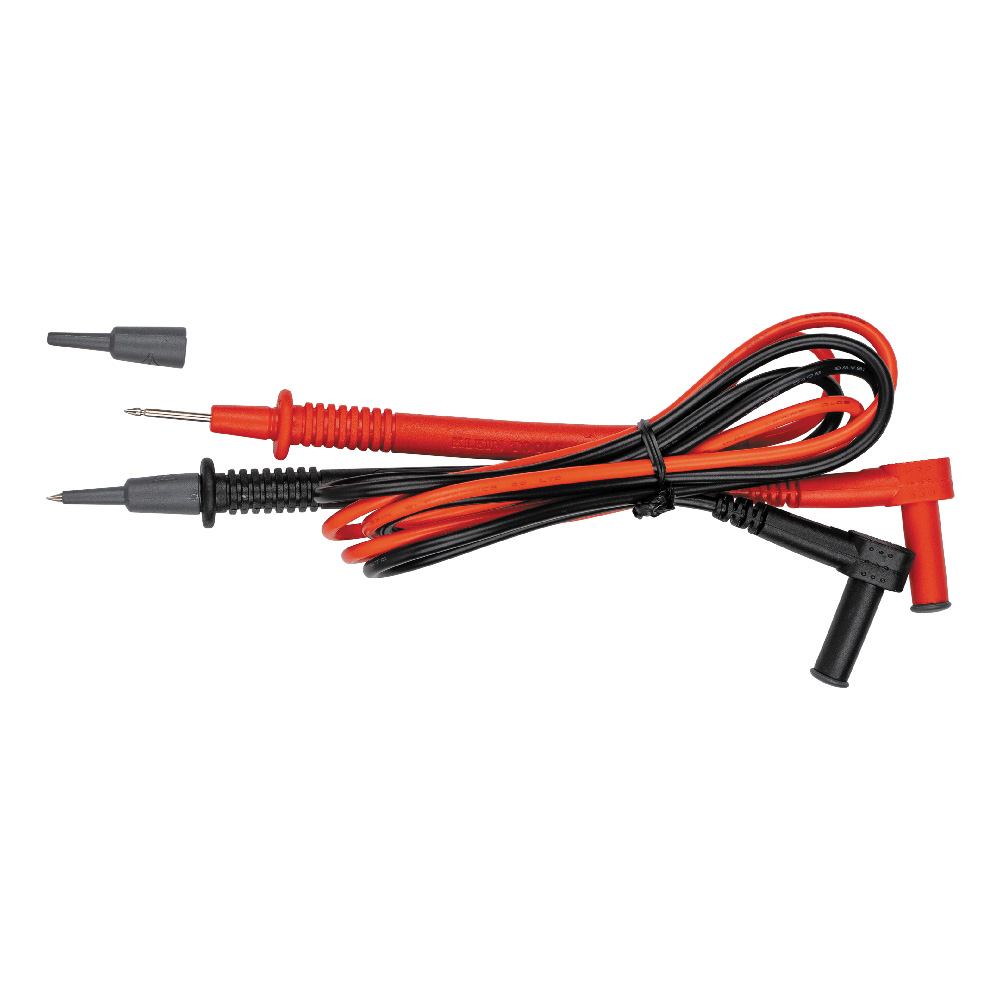

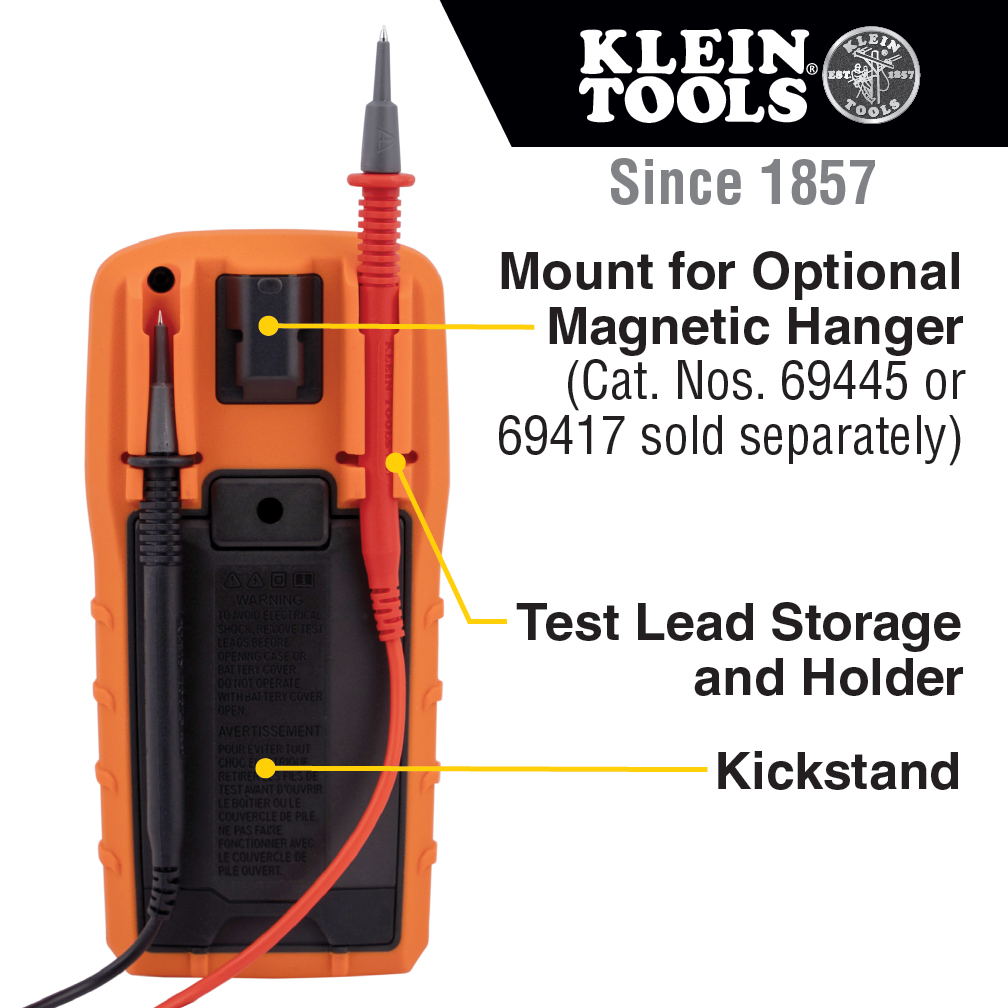

- Includes carrying pouch, test leads with safety caps, thermocouple with adapter, and batteries
Professional Installation Requirements
- Professional use recommended; users should follow all safety instructions and wear appropriate personal protective equipment when testing live circuits.
Applications

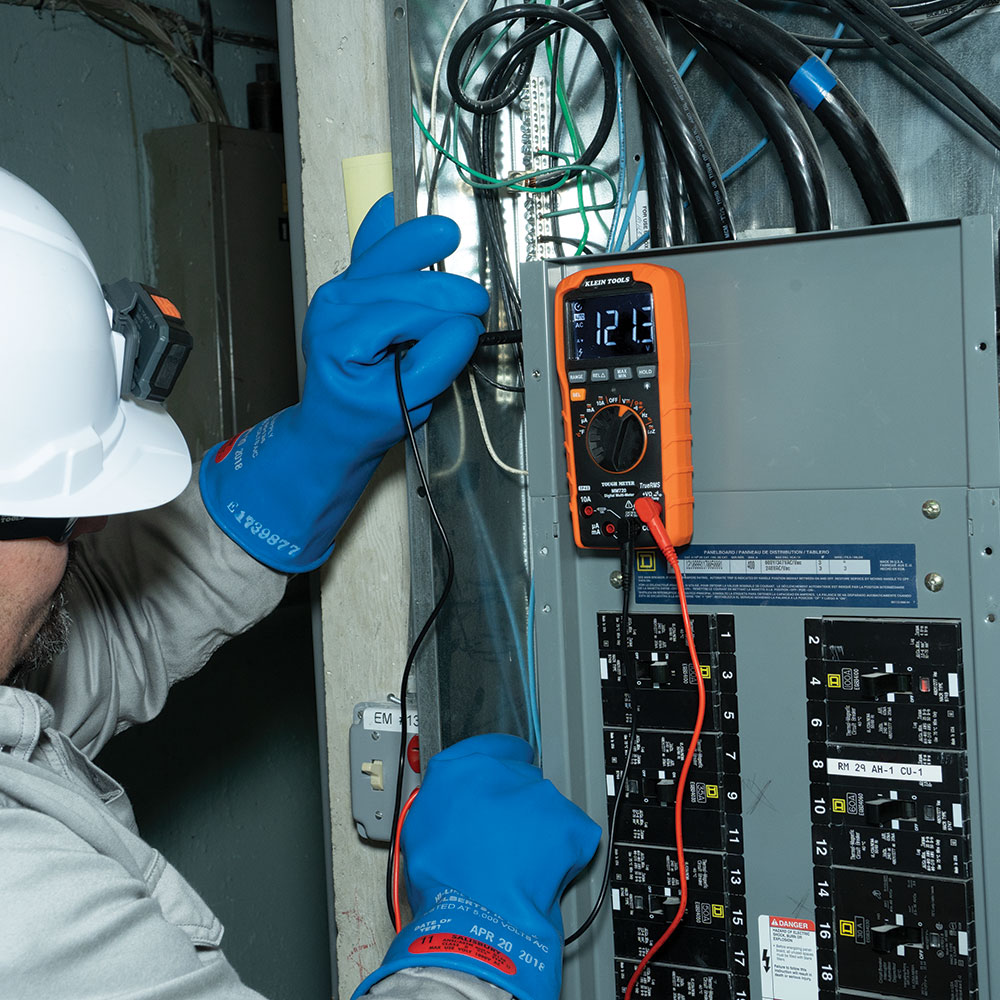

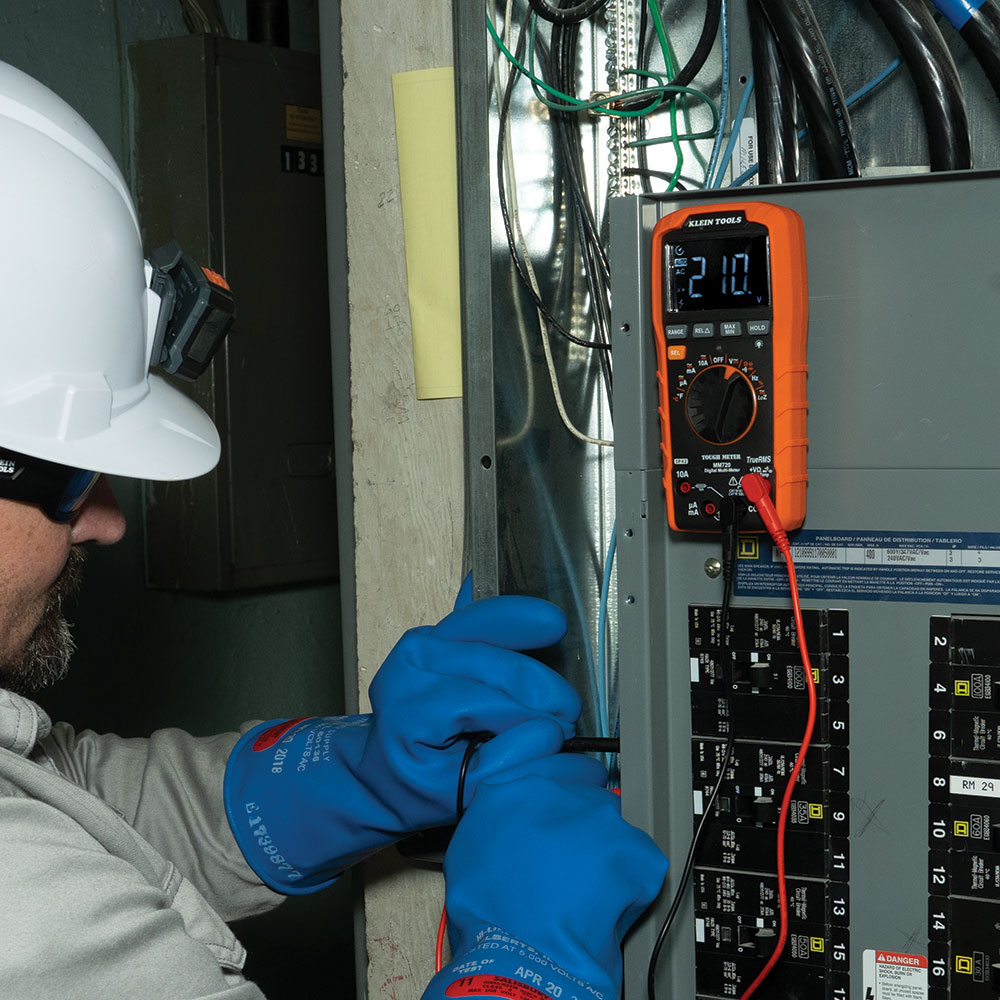

- Residential electrical testing and troubleshooting

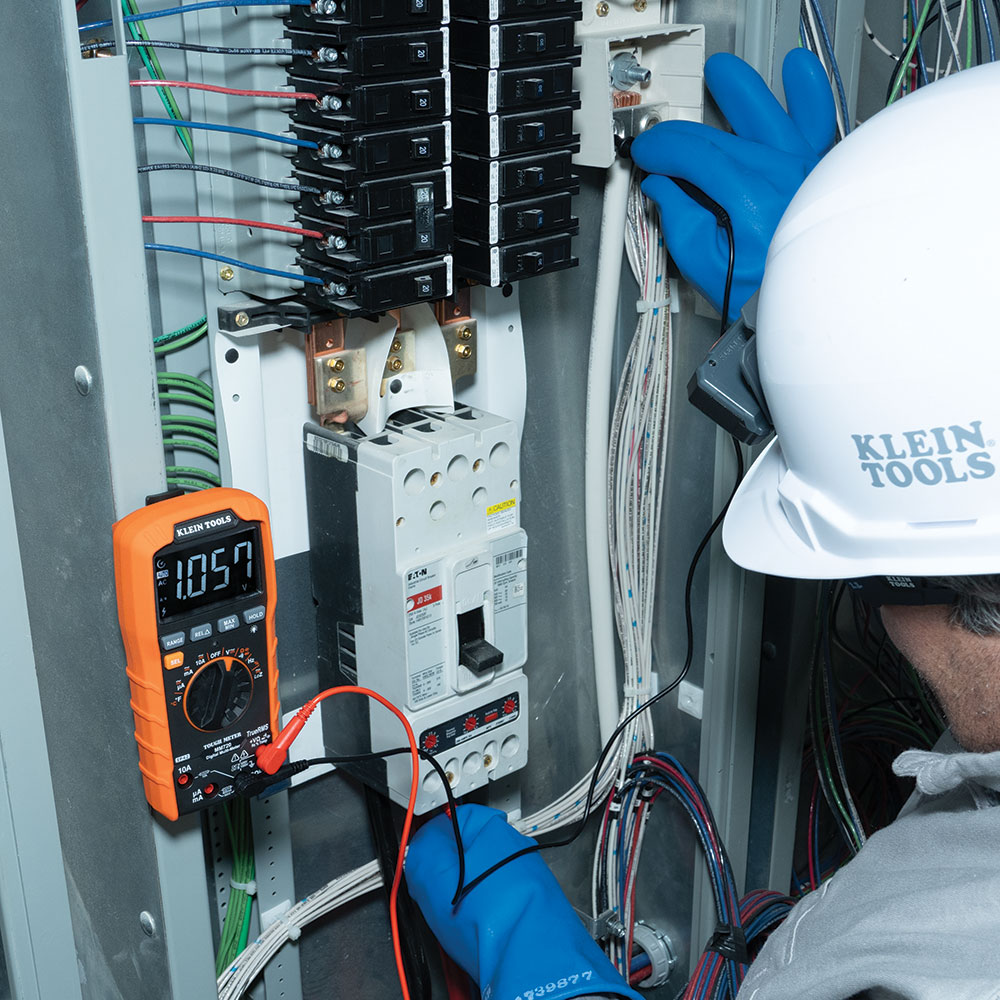

- Business and light-industrial electrical measurements
- Testing and measuring AC/DC voltage, current, resistance, temperature, capacitance, frequency, and continuity
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Accurate measurements reduce the need for repeated testing, saving energy and resources
- Durable design extends product life, reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster or Klein Tools for specific warranty details.
Available Now
The Wattmaster Digital Multimeter MM720 is available for immediate purchase, ideal for electrical testing in residential, commercial, and light industrial environments.
