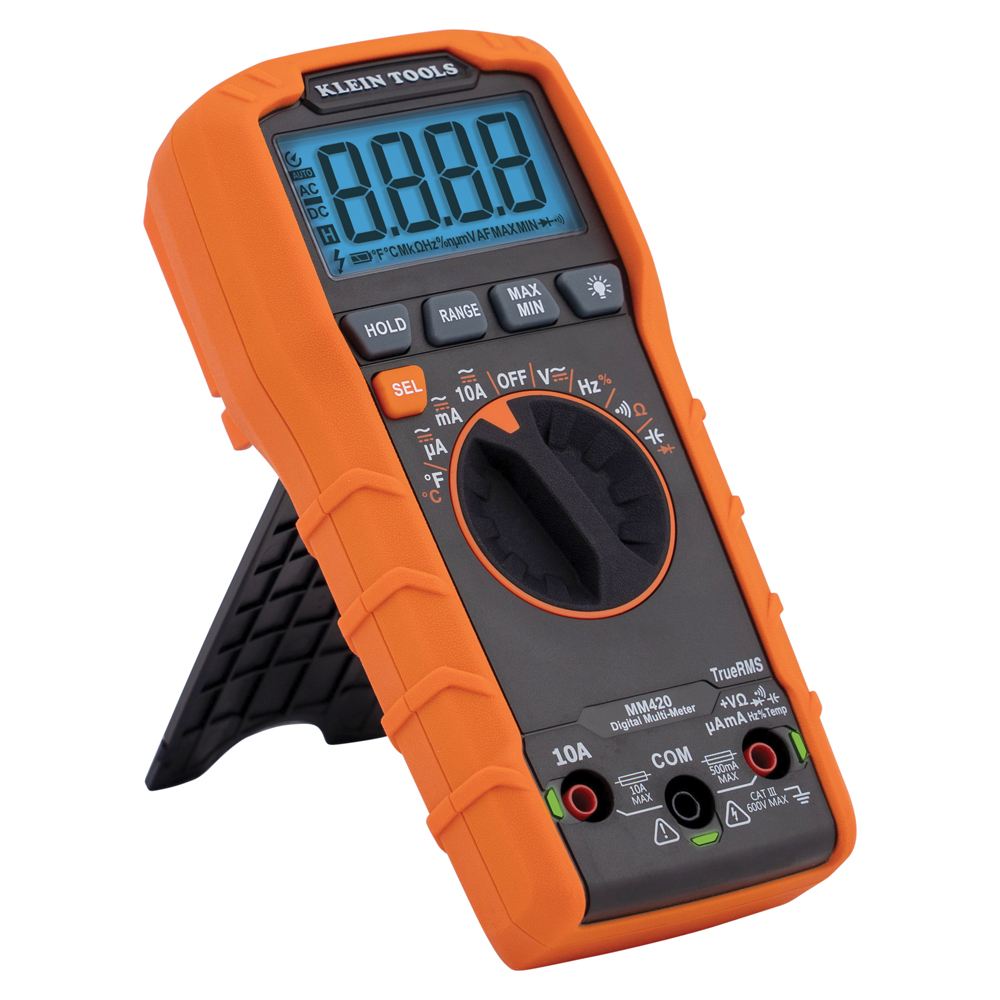

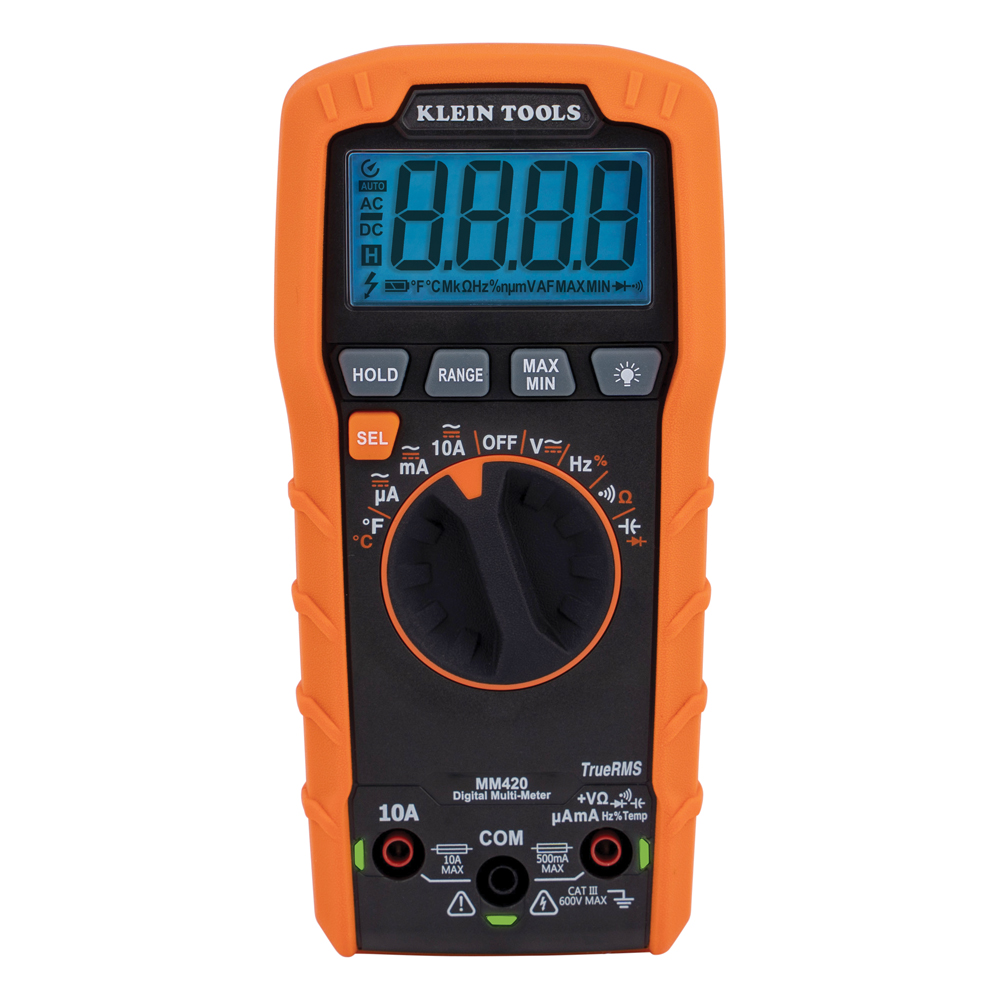

Digital Multimeter TRMS Auto-Ranging | 600V AC/DC | Temperature Measurement | by Wattmaster
The Digital Multimeter TRMS Auto-Ranging is designed for precise electrical testing, measuring up to 600V AC/DC and 10A current. With features like temperature measurement, capacitance, and frequency testing, it's perfect for electricians and DIY enthusiasts. The backlit 4000 count LCD display ensures easy reading, while the durable design offers 6.6 feet drop protection, making it ideal for both residential and light-industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Multimeter TRMS Auto-Ranging | 600V AC/DC | Temperature Measurement | by Wattmaster
Brand: Wattmaster
SKU: A-MM420
Alternatively Known As: TRMS Multimeter, Auto-Ranging Digital Multimeter, Electrical Tester, True RMS Multimeter, Temperature Multimeter
Technical Specifications

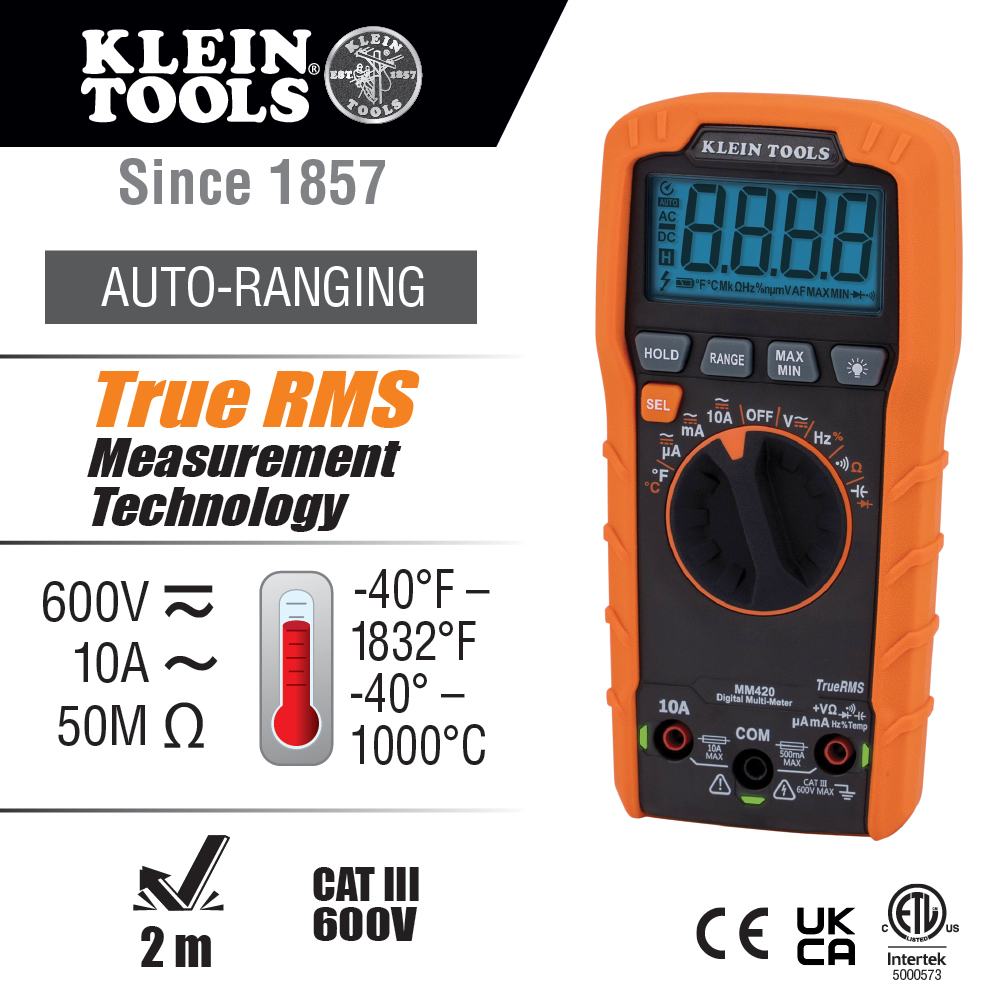

- Measurement Range: Up to 600V AC/DC voltage, 10A AC/DC current, 50 MOhms resistance

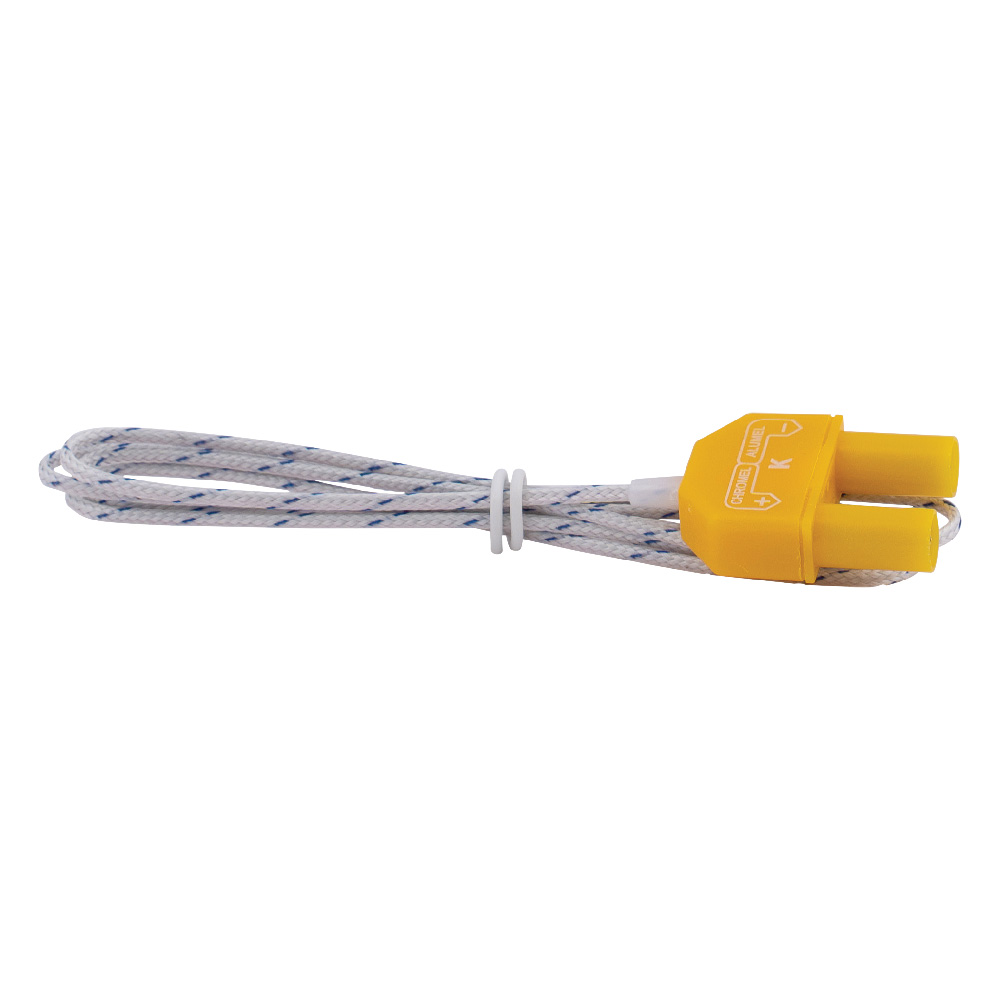

- Additional Measurements: Temperature (-40° to 1832°F / -40° to 1000°C), capacitance (up to 400 µF), frequency (1 Hz - 50 KHz), duty-cycle, diode and continuity testing
- Display: 4000 count backlit LCD
- Safety Rating: CAT III 600 V
- Power: 2 x AAA batteries
- Drop Protection: 6.6 feet (2 meters)
- Material: ABS and electrical components
- Features: Lead Alert, Auto-Range, Min/Max Measurements, Auto Power-Off, Data-Hold
- Dimensions (H x L x W): 45mm x 162mm x 80mm
- Weight: 0.231 kg
Key Features

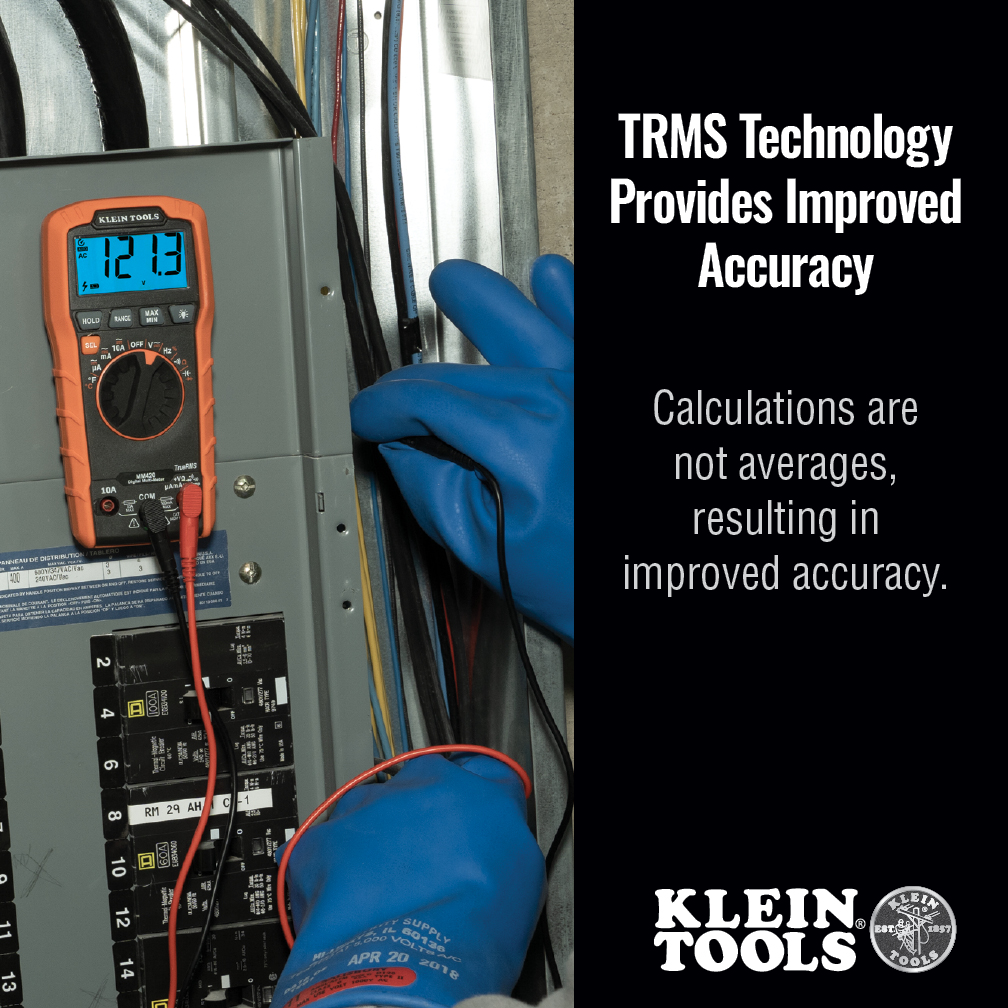

- True Root Mean Square (TRMS) technology for accurate measurements
- Auto-ranging multimeter measuring up to 600V AC/DC voltage and 10A AC/DC current
- Measures resistance up to 50 MOhms, capacitance, frequency, duty-cycle, temperature, and tests diodes and continuity

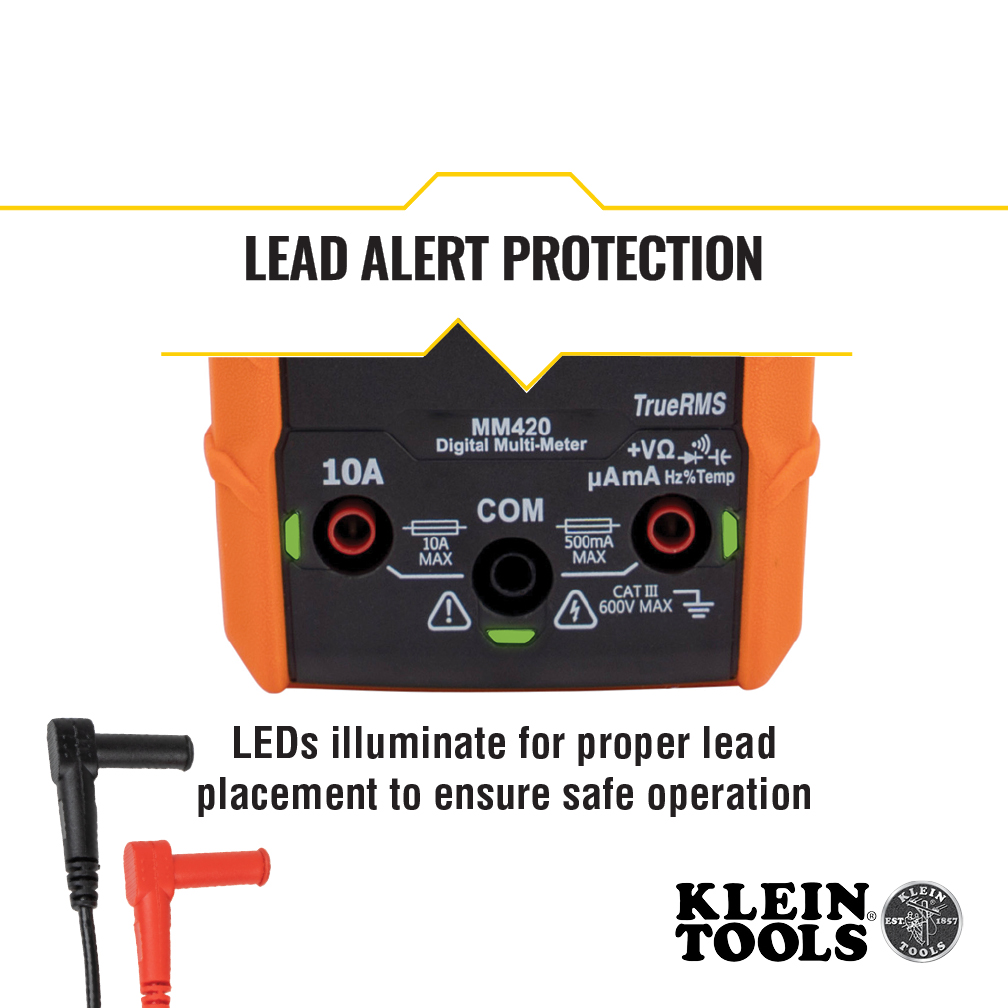

- Lead Alert protection with LED illumination for correct lead placement

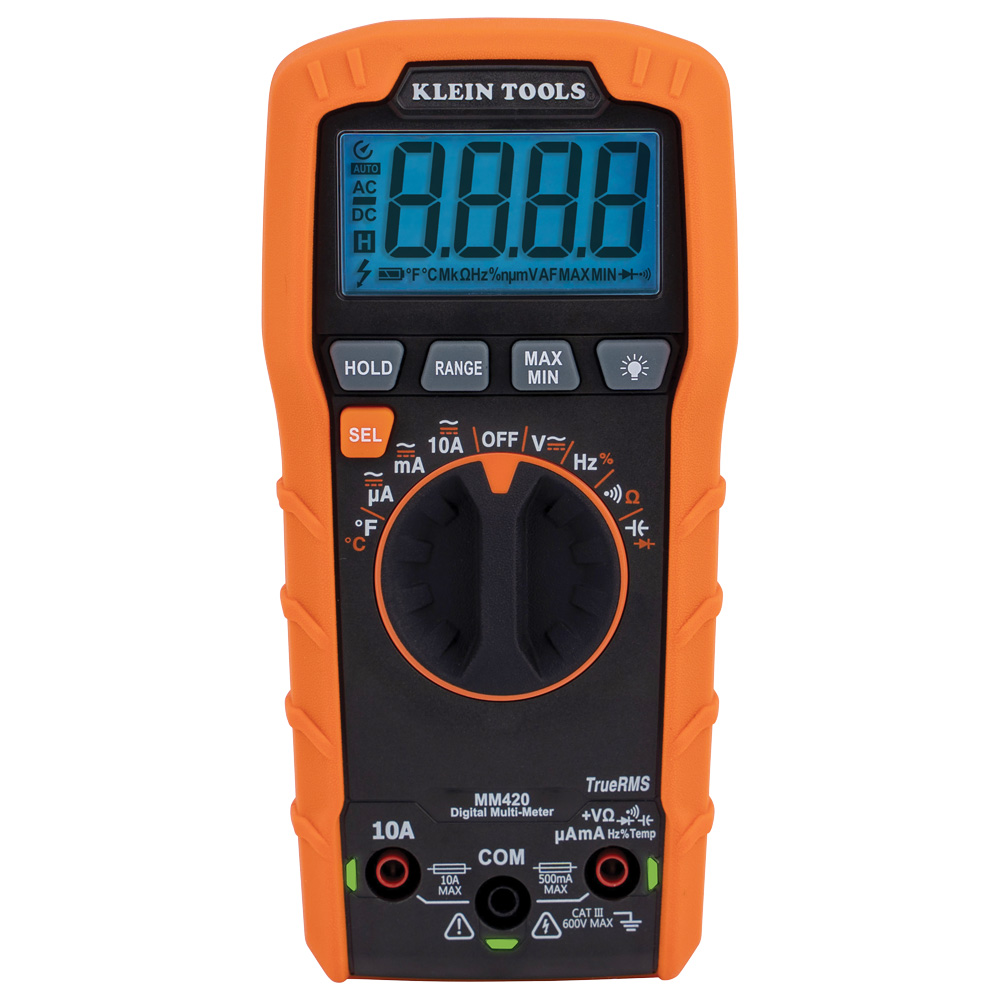

- Backlit 4000 count LCD display for easy reading
- Durable design with 6.6' (2 m) drop protection

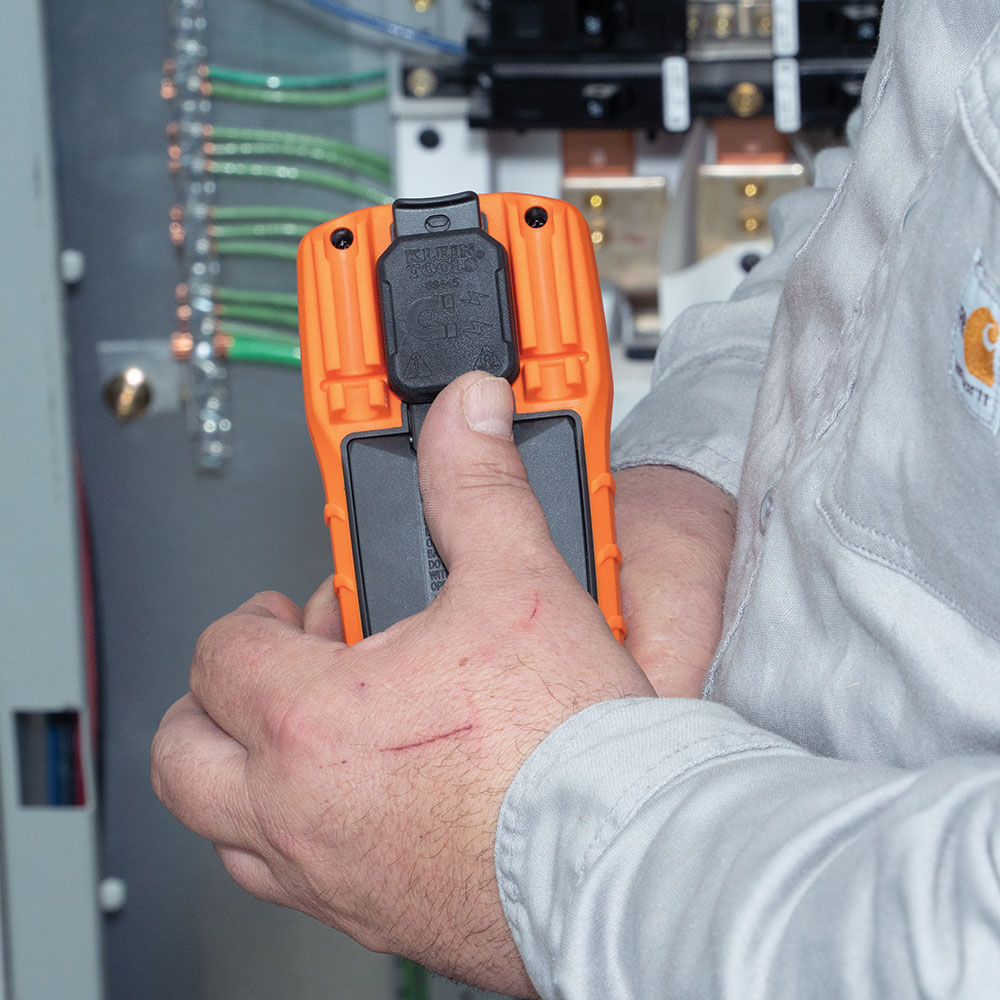

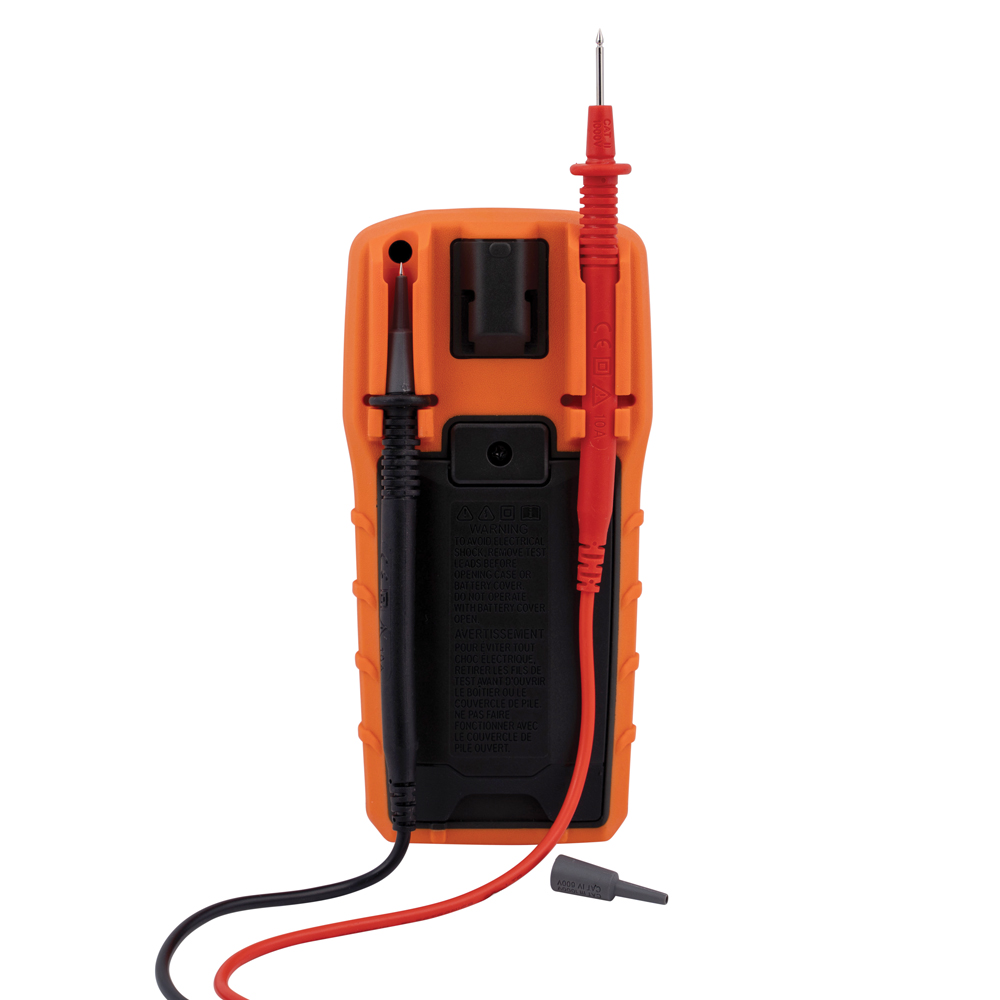

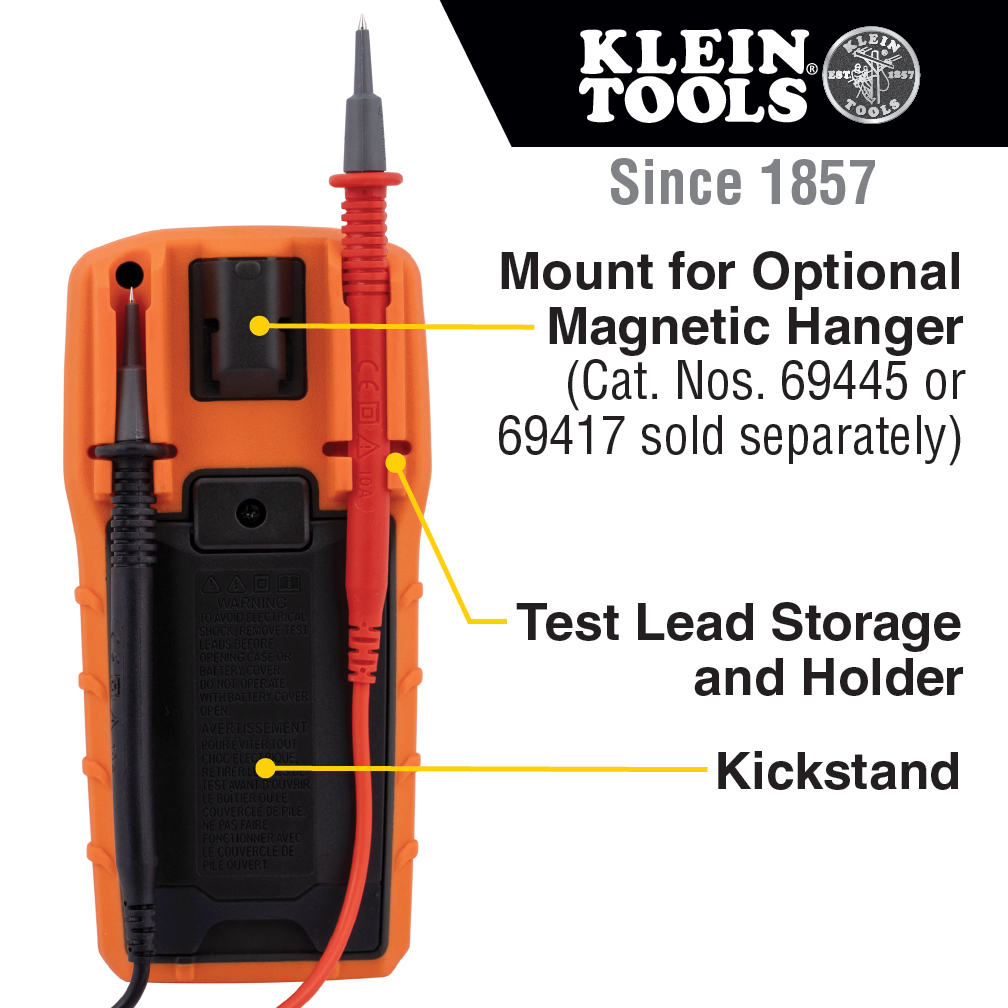

- Low battery indicator and accessible battery and fuse compartment
- CAT III 600 V safety rating for use in controlled electromagnetic environments
Professional Installation Requirements
- Use by qualified electricians or trained personnel is recommended. Follow all safety instructions and wear appropriate personal protective equipment during use.
Applications

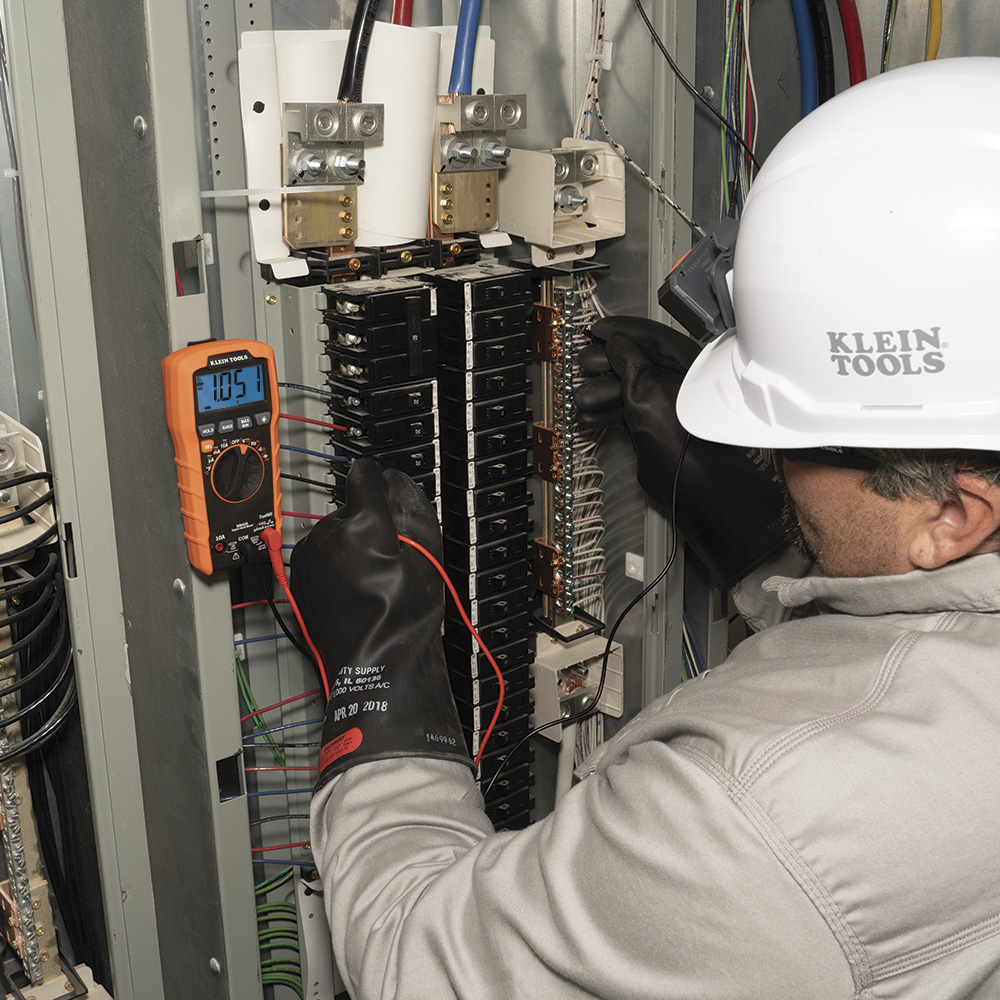

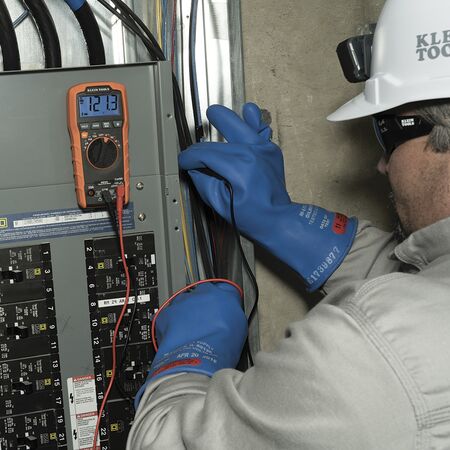

- Electrical testing and measurement in residential, business, and light-industrial environments
- Measuring AC/DC voltage, current, resistance, capacitance, frequency, and temperature
- Testing diodes and continuity in electrical circuits
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Accurate measurements reduce the need for repeated testing, saving energy and resources
- Durable construction extends product life, reducing electronic waste
Warranty Information
Warranty details available from the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Digital Multimeter TRMS Auto-Ranging 600V with Temperature Measurement is available for immediate purchase, ideal for electrical testing and measurement in residential, commercial, and light-industrial applications.
