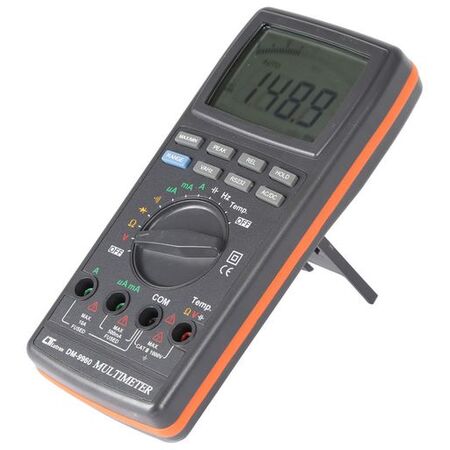

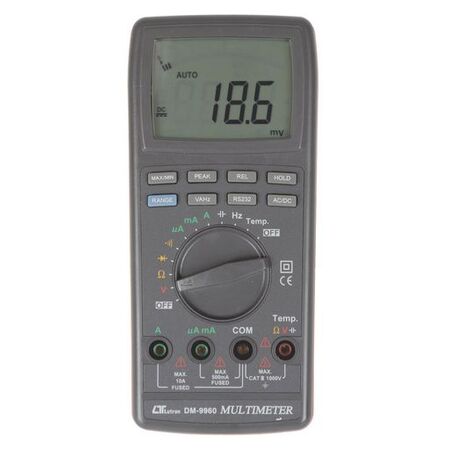

Digital Multimeter with Temperature | Auto Range | CAT III 1000V
Digital multimeter with auto range and temperature measurement—ideal for electrical diagnostics. Built for precision, with CAT III 1000V rating, large LCD display, and multi-function capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Multimeter with Temperature | Auto Range | CAT III 1000V
SKU: DM-9960
Alternatively Known As: Digital Multimeter with Temperature Probe, Auto Range Multimeter, CAT III 1000V Multimeter, Lutron DM9960 Multimeter
Technical Specifications
- DC Voltage Range: 400mV to 1000V with ±0.5% to 0.8% accuracy
- AC Voltage Range: 400mV to 1000V with ±1% accuracy
- DC Current Range: 0.4mA to 10A with ±1% to 1.5% accuracy
- AC Current Range: 0.4mA to 10A with ±1% to 1.5% accuracy
- Resistance Range: 400Ω to 40MΩ
- Capacitance Range: 4nF to 40mF
- Frequency Range: 4kHz to 40MHz
- Temperature Range: -20°C to 750°C (requires temperature probe)
- Display Size: 65x48mm
- Dimensions (H x L x W): 185mm x 40mm x 88mm
- Weight: 0.3 kg
Key Features
- CAT III 1000V safety rating
- 4000 counts A/D with high resolution
- Auto range with manual range selection
- Large LCD display with bar graph indicator
- Multi-function measurement: DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity beeper
- Max/Min, Peak value, Relative, Data hold functions
- Temperature measurement in °C/°F (requires temperature probe)
- VAHz button for frequency measurement during ACV and ACA functions
- Built-in fuse protection for 10A, mA, and µA current ranges
- 10 M ohm input impedance for voltage circuits
- Built-in overload protection for most ranges
- Operates on 2x AAA batteries
- Includes black and red test leads
Professional Installation Requirements
- No professional installation required; however, users should have basic electrical knowledge to operate safely.
Applications
- Electrical testing and troubleshooting in residential, commercial, and industrial environments
- Measuring voltage, current, resistance, capacitance, frequency, and temperature
- Use in electrical maintenance, repair, and installation tasks
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption using AAA batteries
- Durable design reduces waste by extending product lifespan
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Lutron DM-9960 Digital Multimeter with Temperature measurement is available now for immediate purchase. Ideal for electrical professionals and technicians requiring accurate multi-function testing tools.
