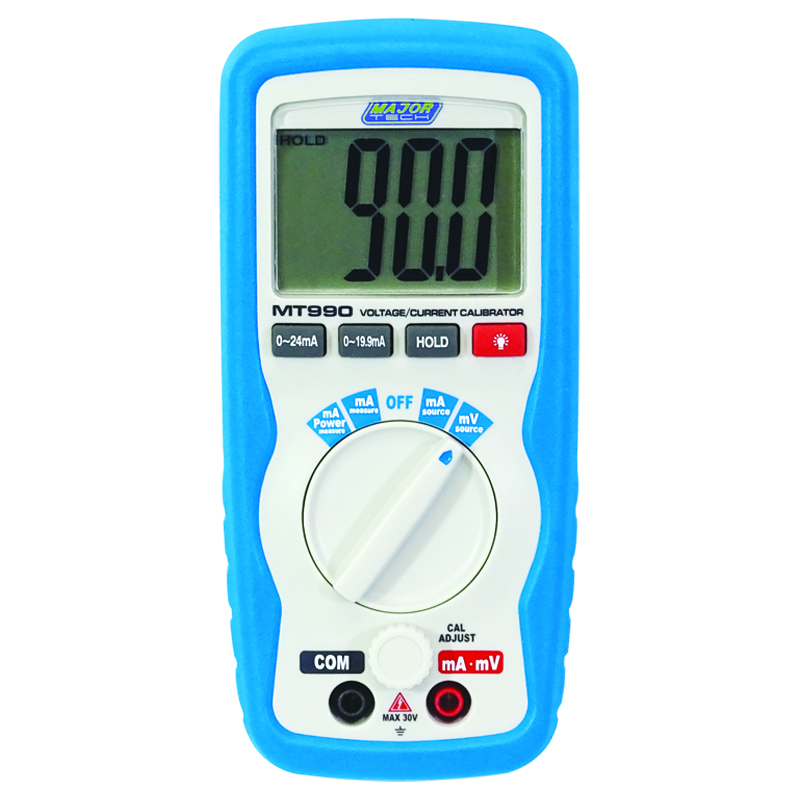

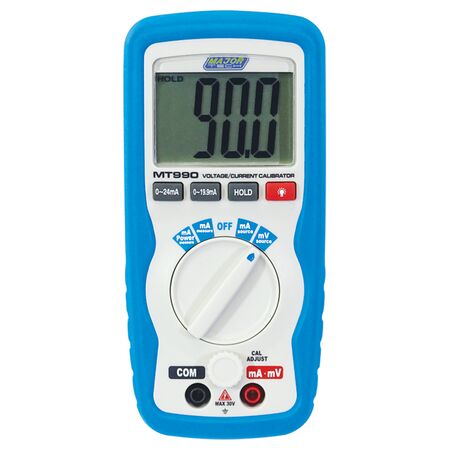

Digital Process Current Calibrator | -199.9mV to 199.9mV Range | Precision Current Source up to 24mA | Portable Design by Majortech
Digital process current calibrator with a range of -199.9mV to 199.9mV and precision current source up to 24mA—ideal for calibration of process devices. Built for field and bench use, it offers high accuracy comparable to bench top calibrators, ensuring reliable measurements for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Process Current Calibrator | -199.9mV to 199.9mV Range | Precision Current Source up to 24mA | Portable Design by Majortech
Brand: Majortech
SKU: MT990
Alternatively Known As: Process Current Calibrator, Digital Current Calibrator, Loop Calibrator, Signal Calibrator
Technical Specifications
- Function: DC Voltage
- Range: -199.9mV to 199.9mV
- Resolution: 0.1mV
- Accuracy: ±(0.25%FS + 1 Digit)
- Precision current source up to 24mA
- Current measurement of current signal
- Power and measurement of two-wire loop
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 0.5 kg
Key Features
- Portable instrument for field and bench use
- Four modes including precision current source up to 24mA
- Current measurement of current signal
- DC mV source
- Power and measurement of two-wire loop
- High accuracy and quality comparable to bench top calibrators
Professional Installation Requirements
- No professional installation required; user manual provided for safe and accurate operation.
Applications
- Calibration of process devices
- Measuring process signals
- General purpose signal injection
- Measurement of mass, volume, length, electricity, flow, pressure, heat, and thermal energy
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces waste by ensuring accurate measurements
- Supports efficient production processes minimizing resource use
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Majortech MT990 Digital Process Current Calibrator is available now for immediate purchase. Ideal for industrial calibration and process measurement applications.
