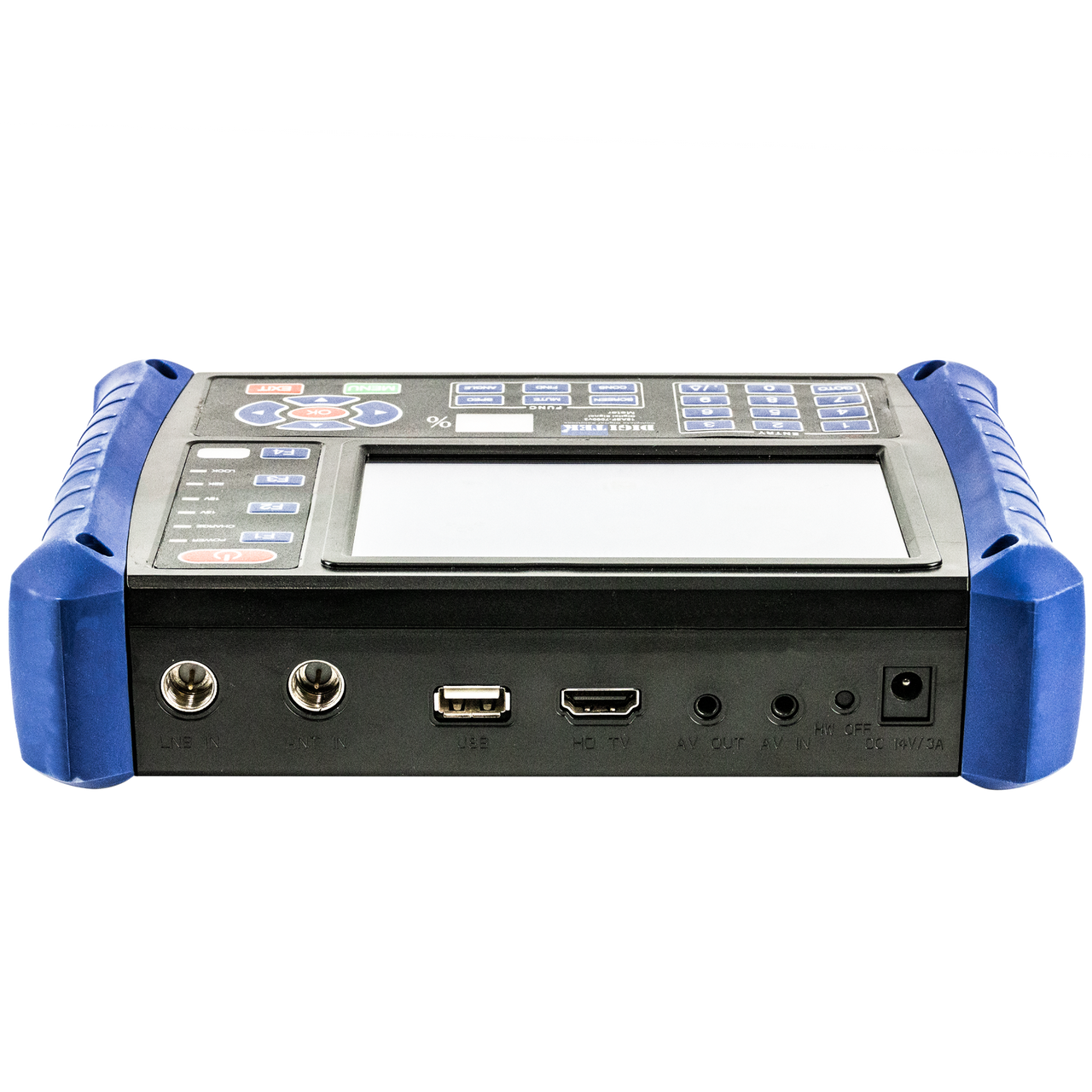

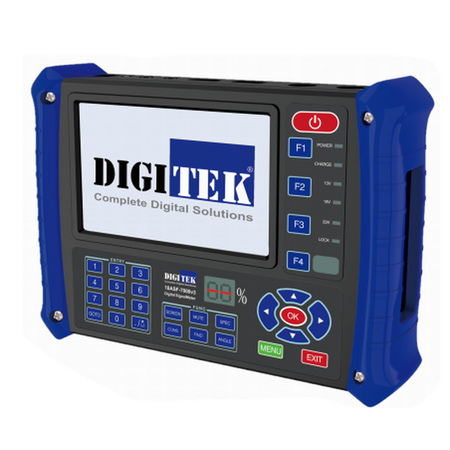

Digital Signal Meter | DVB-S/S2 & DVB-T/T2 | 5" TFT LCD
Digital signal meter with DVB-S/S2 & DVB-T/T2 compatibility and a high-resolution 5" TFT LCD—ideal for satellite and terrestrial operations. Built for user-friendly navigation, with USB 2.0 for updates and media playback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital Signal Meter | DVB-S/S2 & DVB-T/T2 | 5" TFT LCD
SKU: 18ASF-7000V3
Alternatively Known As: Digital Satellite Signal Meter, DVB Signal Meter, Satellite Signal Analyzer, Terrestrial Signal Meter, DVB-S2 Meter
Technical Specifications
- Display: 5" TFT LCD high resolution
- Signal Support: DVB-S, DVB-S2, DVB-T, DVB-T2
- Spectrum Function: Satellite and Terrestrial
- Constellation Display: Real-time for Satellite

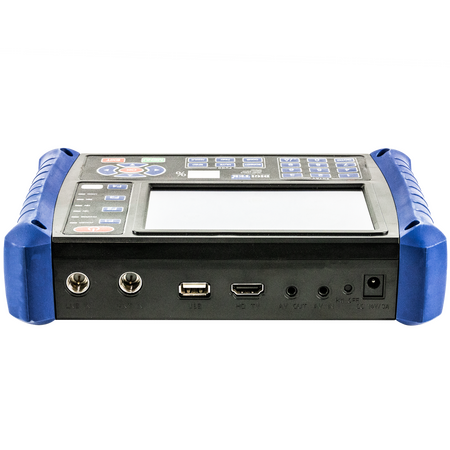

- USB: USB 2.0 for software updates and media playback
- Video Output: HDMI for HDTV video/audio
- AV Input/Output: AV input for CCTV, AV output for monitor
- Battery: 4000mAh Lithium-Ion rechargeable
- Additional Features: Video recording, time shift, program edit, EPG, remote control, built-in speaker, buzzer, and LED light
- Dimensions (H x L x W): 90mm x 30mm x 150mm
- Weight: 0.5 kg
Key Features
- Combination DVB-S, DVB-S2 & DVB-T, DVB-T2 support
- High Resolution 5" TFT LCD display
- Multi-Lingual On-Screen Display (OSD) and user-friendly UI
- Spectrum function for Satellite and Terrestrial operation
- Real-time Constellation display for Satellite
- Blind Search for Satellite
- USB 2.0 for software update and media playback
- Video recording and time shift capabilities
- Program editing and Electronic Program Guide (EPG)
- HDTV video/audio output via HDMI
- AV input for CCTV installation
- AV output for monitor function
- Easy shortcut keys for quick menu commands

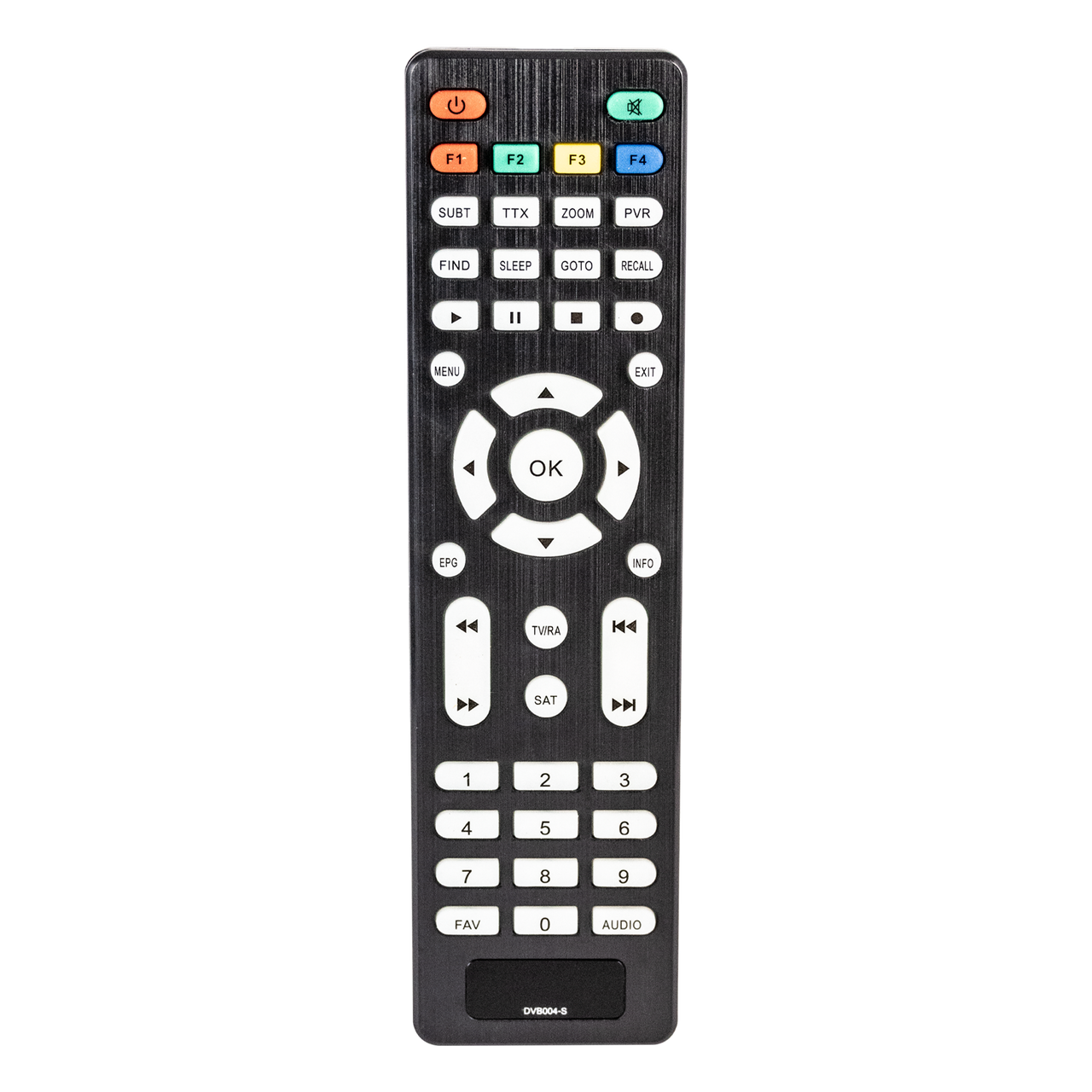

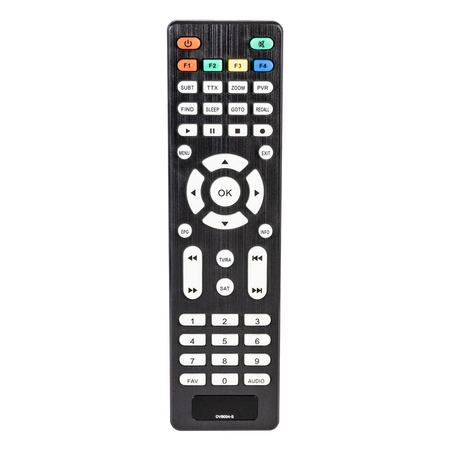

- Remote control unit included
- Built-in loudspeaker for audio playback
- Built-in buzzer for signal feedback
- Built-in LED light
- Large capacity 4000mAh Lithium-Ion battery
Professional Installation Requirements
- No professional installation required; user-friendly design suitable for field technicians and installers.
Applications
- Satellite signal measurement and analysis
- Terrestrial signal measurement and analysis
- CCTV installation and monitoring
- Broadcast and communication signal testing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient lithium-ion battery reduces power consumption
- Durable design minimizes electronic waste through long product life
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Digitek 18ASF-7000v3 Digital Signal Meter is available now for immediate purchase. Ideal for satellite and terrestrial signal testing, CCTV installation, and broadcast applications.
