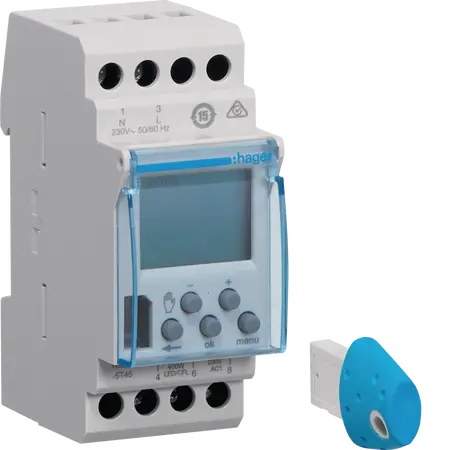

Digital Time Switch 1 Channel | Bluetooth Key | Weekly Cycle | Quartz Sync by Hager

BRAND: :hager
SKU: EGK103
$214.10 List price: $273.80
+ −
30 Days Return Delivery Options
Digital time switch with Bluetooth connectivity and weekly cycle—ideal for residential and commercial lighting control. Built for easy programming, with reliable quartz synchronization and high load capacity.

Product Name/Title: Digital time switch 1 Channel weekly cycle + Bluetooth key

Brand: Hager

SKU: EGK103

Alternatively Known As: Weekly Bluetooth Time Switch

Technical Specifications
  • Nominal voltage: 230 - 230 V
  • Frequency: 50 - 60 Hz
  • Power 230 V incandescent and halogen lamp: 2300 W
  • Max. load fluorescent lamp in series: 1000 W
  • Power reserve in years: 5 y
  • With network synchronisation: No
  • With quartz synchronisation: Yes
  • Accuracy per day: 1,50 s
  • With impulse programme: No
  • Number of channels: 1
  • Type of contacts: 1x changeover
  • Cross-section flexible conductor: 1 - 6 mm²
  • Cross-section rigid conductor: 1.5 - 10 mm²
  • Daily programme: Yes
  • Weekly programme: Yes
  • Annual programme: No
  • Operating temperature: -5 - +45 °C
  • Type of connection: With screw terminal
  • Dimensions (H x L x W): 85mm x 65mm x 36mm
  • Weight: 0.3 kg
Key Features
  • Bluetooth connectivity for easy programming
  • Weekly program cycle
  • High load capacity for incandescent and halogen lamps
  • Reliable quartz synchronization
  • Compact dimensions for versatile installations
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure proper setup and safety compliance.
Applications
  • Residential lighting control
  • Commercial lighting and equipment scheduling
  • Smart home automation integration
Standards & Compliance
  • Complies with relevant Australian electrical safety standards
Environmental Benefits
  • Energy-efficient programming reduces unnecessary power consumption
Warranty Information

5-year warranty covering manufacturing defects.

Available Now

Available for immediate purchase, ideal for programmable lighting and device scheduling needs.

EGK103 (EGK103, 153 Kb) [Download]

reach_declaration_EGK103P1.pdf (reach_declaration_EGK103P1.pdf, 103 Kb) [Download]

rohs_declaration_EGK103P1.pdf (rohs_declaration_EGK103P1.pdf, 104 Kb) [Download]

DECLARATION_19_2554_09_19.pdf (DECLARATION_19_2554_09_19.pdf, 111 Kb) [Download]

EUDOC_0053.05-2023.pdf (EUDOC_0053.05-2023.pdf, 318 Kb) [Download]
