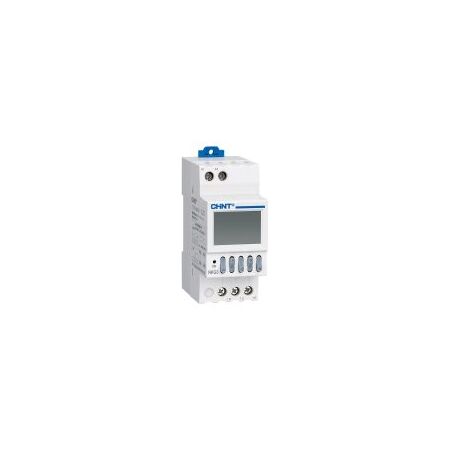

Digital Time Switch 16 ON 16 OFF 240V DIN Rail NKG3 Chint

BRAND: CABAC
SKU: 310027
$137.40 List price: $183.20
+ −
30 Days Return Electricians Unlock Trade Access
Chint NKG3 digital time switch features 16 ON 16 OFF programs, 240V AC, 1 min to 24h control, built-in battery and daylight saving. Ideal for lighting schedules.

Alternatively Known As: Digital Programmable Time Switch, DIN Rail Timer, Electronic Time Clock, Lighting Time Switch

Technical Specifications
  • Rated Control Supply Voltage: AC 220V, 230V or 240V, 50/60Hz
  • Supply Voltage Tolerance: 85% to 110% of rated voltage
  • Programming Capacity: 16 programmable ON/OFF groups
  • Time Control Range: 1 minute to 24 hours
  • Timing Accuracy: ±2 seconds per day
  • Rated Operational Current: AC-15, 3A at 240V
  • Conventional Thermal Current: 16A
  • Rated Insulation Voltage: 250V
  • Contact Configuration: 1 change-over contact group
  • Electrical Life: At least 10,000 operations
  • Mechanical Life: At least 100,000 operations
  • Installation: 35mm DIN rail mount
  • Backup Power: Built-in maintenance-free battery
  • Operating Temperature: -5°C to +40°C
  • Compliance: IEC/EN 60947-5-1
  • Dimensions (H x L x W): 86mm x 68.6mm x 37mm
  • Weight: 0.25 kg
Key Features
  • 16 programmable ON and 16 programmable OFF operations
  • Manual ON, manual OFF and automatic operating modes
  • 1-minute minimum switching interval
  • Built-in battery maintains time settings during power interruptions
  • Daylight saving time adjustment
  • Latitude-based timing function on applicable model variants
  • DIN rail mounting for switchboards and control panels
  • LCD or LED display depending on model variant
  • Suitable for lighting, signage and other scheduled electrical loads
Professional Installation Requirements
  • Installation and connection to mains wiring must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000:2018. Use an external contactor for loads exceeding the switch rating, high-inrush loads or three-phase applications.
Applications
  • Lighting schedules
  • Street lighting control
  • Advertising light boxes and signage
  • Commercial and industrial control panels
  • Timed switching of single-phase electrical equipment
  • Three-phase equipment control through an external contactor
Standards & Compliance
  • Installation should comply with AS/NZS 3000:2018 Electrical installations, also known as the Australian/New Zealand Wiring Rules.
Environmental Benefits
  • Programmable scheduling can reduce unnecessary operating hours and associated energy consumption
  • Built-in maintenance-free battery reduces the need for routine battery replacement
  • Long electrical and mechanical service life can reduce replacement frequency and product waste
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to applicable contract terms and conditions.

Available Now

Available through authorised CHINT distributors in Australia.
