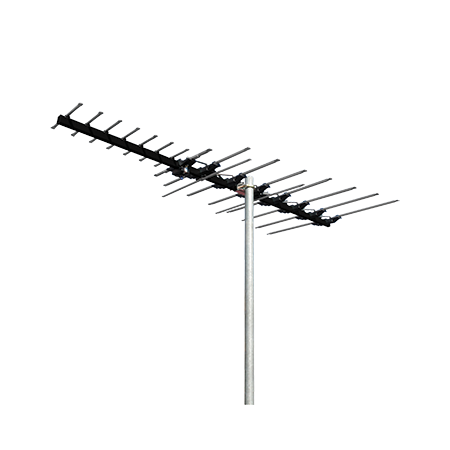

Digital TV Antenna 17 Element | 50dB Gain | 4G/5G Filter | Black by Matchmaster

SKU: 01MM-MB400
$208.40 List price: $252.20
Free pick up (over 1 meter)
For delivery quote message
Digital TV antenna with 17 elements and 50dB gain—ideal for homes and businesses. Built for superior signal reception, with a 4G/5G filter to minimize interference.

Product Name/Title: MAGNA Black High Gain 17 Element Hybrid Digital TV Antenna VHF/UHF (6-12)(28-40) with 50dB 4G/5G Filter

Brand: Matchmaster

SKU: 01MM-MB400

Alternatively Known As: High Gain Digital TV Antenna, VHF/UHF Hybrid Antenna, 4G/5G Filtered TV Antenna, Log Periodic Yagi Antenna

Technical Specifications
  • Elements: 17
  • Band: VHF (6-12), UHF (28-40)
  • Maximum Gain: 8dB VHF, 10dB UHF
  • AV VSWR: <2:1
  • Front/Back Ratio: 16-20dB
  • Balun Type: 'F' type balun
  • Boom Length: 1520mm
  • Width: 845mm
  • Dimensions (H x L x W): 200mm x 1520mm x 845mm
  • Weight: 2.5 kg
Key Features
  • 17 element VHF/UHF Log Periodic/Yagi Hybrid antenna
  • Built-in 4G/5G filter with up to 50dB rejection in 700MHz band
  • Australian made and fully assembled with snap out elements
  • Black boom design to blend with modern builds
  • Typical 8dB VHF and 10dB UHF gain
  • 16-20dB front to back ratio and <2:1 VSWR
  • 12.7mm heavy-duty rolled elements for strength and durability
Professional Installation Requirements
  • Professional installation is recommended to ensure optimal antenna positioning and secure mounting for best signal reception.
Applications
  • Residential: Homes requiring enhanced digital TV reception
  • Commercial: Offices and buildings needing reliable TV signal
  • Rural and remote areas: For improved VHF/UHF digital TV signal reception
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Improves signal reception reducing the need for multiple antennas and electronic repeaters
  • Durable construction reduces waste and replacement frequency
Warranty Information

Matchmaster Gold Lifetime Manufacturer Warranty.

Available Now

The MAGNA Black High Gain 17 Element Hybrid Digital TV Antenna is available now for immediate purchase. Ideal for residential and commercial digital TV signal enhancement.
