Digital TV Antenna VHF 6-12 | 18 Elements | High Gain | Weather-Resistant by Matchmaster

SKU: 03MM-DR3018
$321.00 List price: $388.50
Free pick up (over 1 meter)
For delivery quote message
Digital TV antenna with VHF 6-12 frequency range and 18 elements—ideal for homes and commercial spaces. Built for enhanced signal reception, with weather-resistant materials for outdoor use.

Product Name/Title: Digital TV Antenna VHF (6-12) 18 Elements

Brand: Matchmaster

SKU: 03MM-DR3018

Alternatively Known As: VHF Yagi Antenna, 18 Element TV Antenna, Band 3 TV Antenna, Long Range Digital TV Antenna

Technical Specifications
  • Elements: 18
  • Band: B3
  • Channels: 6-12
  • Maximum Gain: 14dB
  • Front/Back Ratio: 22dB
  • AV VSWR: 1.5:1
  • Boom Dimension: 25 x 19mm
  • Boom Length: 3190mm
  • 4G/5G LTE 652MHz low pass filter included
  • Dimensions (H x L x W): 190mm x 3190mm x 25mm
  • Weight: 2.5 kg
Key Features

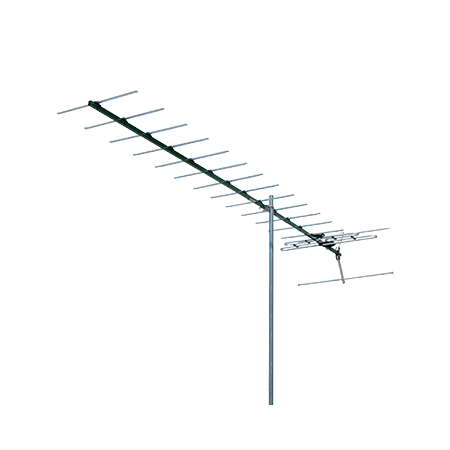

  • 18 element VHF Yagi antenna for channels 6-12
  • Maximum gain of 14dB for enhanced signal reception
  • Built-in 4G/5G LTE 652MHz low pass filter to reduce interference
  • Heavy-duty 12.7mm extruded aluminium elements for durability
  • Snap lock design for fast and easy installation
  • Front/Back ratio of 22dB for improved signal clarity
  • AV VSWR of 1.5:1 ensuring efficient signal transmission
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure optimal antenna positioning and secure mounting.
Applications
  • Residential: Homes in fringe or low signal areas
  • Commercial: Small businesses requiring reliable VHF TV reception
  • Outdoor: Suitable for harsh Australian environments
Standards & Compliance
  • Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
  • Durable aluminium construction reduces need for frequent replacements
  • Improved signal reception reduces energy consumption of TV equipment
Warranty Information

Matchmaster Gold Lifetime Manufacturer Warranty.

Available Now

The Matchmaster Digital TV Antenna VHF (6-12) 18 Elements is available now for immediate purchase. Ideal for residential and commercial use in fringe areas requiring enhanced VHF TV signal reception.

Brochure (03mm-dr3018_brochure.pdf, 446 Kb) [Download]

Manual (03mm-dr3018_manual.pdf, 371 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
