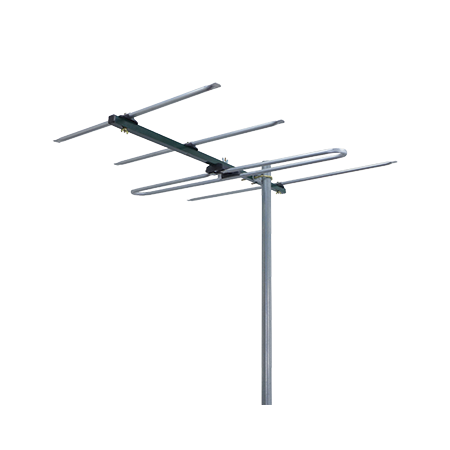

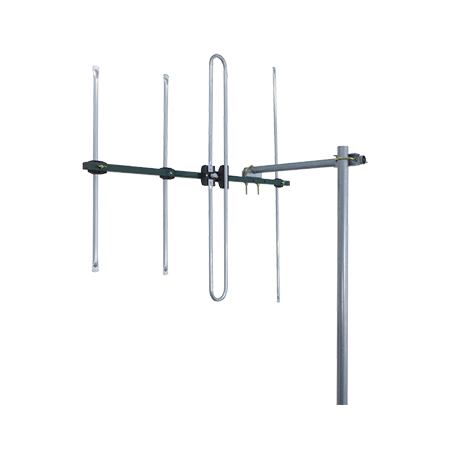

Digital TV Antenna VHF 6-12 | 4 Elements | Rooftop/Wall Mount | Matchmaster

SKU: 03MM-DR3004
$130.90 List price: $158.40
+
Digital TV antenna with VHF bands 6-12 and four elements—ideal for homes and commercial spaces. Built for enhanced signal reception, with versatile rooftop or wall mounting.

Product Name/Title: Digital TV Antenna VHF (6-12) 4 Elements

Brand: Matchmaster

SKU: 03MM-DR3004

Alternatively Known As: VHF Yagi Antenna, 4 Element TV Antenna, Digital VHF Antenna, 6-12 Channel TV Antenna

Technical Specifications
  • Elements: 4
  • Band: Band 3 (VHF)
  • Channels: 6-12
  • Maximum Gain: 7dB
  • Front/Back Ratio: 16.8dB
  • Boom Dimension: 25 x 19mm
  • Boom Length: 795mm
  • 4G/5G LTE 652MHz low pass filter included
  • Dimensions (H x L x W): 19mm x 795mm x 25mm
  • Weight: 1.2 kg
Key Features
  • 4 element VHF Yagi antenna
  • Receives channels 6-12
  • 4G/5G LTE 652MHz low pass filter to eliminate interference
  • 12.7mm heavy-duty extruded aluminium elements for maximum strength and durability
  • 7.0dB maximum gain
  • Snap lock design for fast installation
  • Front/Back Ratio of 16.8dB
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended to ensure optimal antenna positioning and signal reception.
Applications
  • Residential: Homes in high signal and metro band three reception areas
  • Commercial: Buildings requiring reliable VHF TV reception
  • General: Reception of DAB+ radio services
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable construction reduces need for frequent replacements, minimizing waste.
  • Improved signal reception reduces power consumption of TV equipment by minimizing signal loss.
Warranty Information

Matchmaster Gold Lifetime Manufacturer Warranty.

Available Now

The Matchmaster Digital TV Antenna VHF (6-12) 4 Elements is available now for immediate purchase. Ideal for residential and commercial use in high signal and metro band three reception areas.

Brochure (03mm-dr3004_brochure.pdf, 347 Kb) [Download]

Manual (03mm-dr3004_manual.pdf, 314 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
