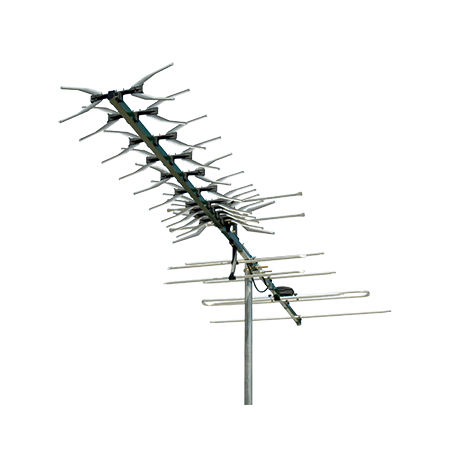

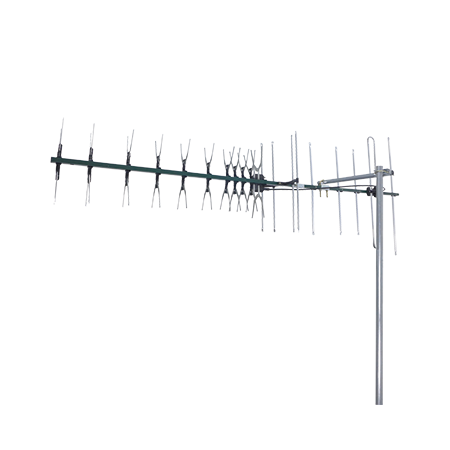

Digital TV Antenna VHF/UHF | 49 Elements | Superior Signal Reception | Aluminum by Matchmaster
Digital TV antenna with VHF (6-12) and UHF (28-51) frequency range and 49 elements—ideal for homes and commercial spaces. Built for superior signal reception, with high-quality aluminum construction for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Digital TV Antenna VHF/UHF (6-12)(28-51) 49 Elements
Brand: Matchmaster
SKU: 01MM-DG49
Alternatively Known As: Digital TV Yagi Antenna, VHF/UHF TV Antenna, 49 Element TV Antenna, Combination TV Antenna
Technical Specifications
- Elements: 49
- Band: B3, UHF
- Channels: VHF/UHF (6-12)(28-51)
- Maximum Gain: B3 8dB, UHF 13dB
- AV VSWR: <2:1
- Front/Back Ratio: B3 16dB, UHF 21dB
- Balun Type: 'F' Type Balun VHF, 'F' Type Diplexer Circuit Balun
- Boom Length: 2268mm
- Dimensions (H x L x W): 300mm x 2268mm x 300mm
- Weight: 3.5 kg
Key Features
- Australian made
- Receives channels 6-12 and 28-46
- VHF diplexed to UHF section with 25dB isolation
- VHF elements made from 12.7mm diameter extruded aluminium tube for superior strength
- 652MHz low pass filter with > 40dB attenuation at 750MHz to eliminate 4G/5G (LTE) interference
- 'X' type UHF antenna section with high gain up to 13dBi
Professional Installation Requirements
- Professional installation recommended to ensure optimal antenna positioning and secure mounting for best signal reception and safety.
Applications
- Residential: Home TV reception
- Commercial: Small business TV signal reception
- Rural and remote areas requiring enhanced TV signal reception
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for durability and structural integrity.
Environmental Benefits
- Durable Australian-made construction reduces need for frequent replacements, minimizing waste.
- Built-in 4G/5G filter reduces interference, improving signal quality and reducing electronic noise pollution.
Warranty Information
Matchmaster Gold Lifetime Manufacturer Warranty.
Available Now
The Matchmaster Digital TV Antenna VHF/UHF (6-12)(28-51) 49 Elements is available now for immediate purchase. Ideal for residential and commercial digital TV reception requiring high gain and interference filtering.
