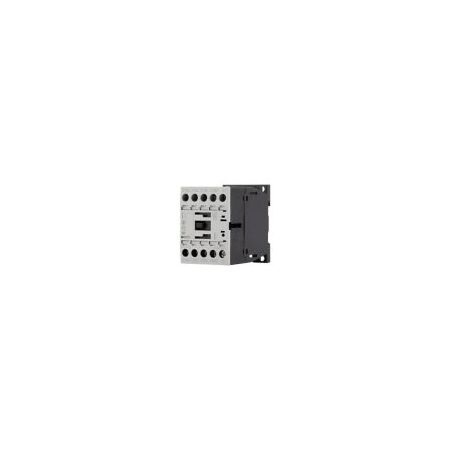

DILA-22 Contactor Relay | 110V/120V AC | 16A Rated Current | IP20 Protection by Eaton
DILA-22 contactor relay with 110V/120V AC operation and 16A rated current—ideal for industrial control systems and automation equipment. Built for reliable electrical switching, featuring IP20 protection and screw terminal connections for secure wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DILA-22 Contactor Relay | 110V/120V AC | 16A Rated Current | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-276396
Alternatively Known As: DILA-22 Contactor Relay, Eaton DILA Relay, Moeller DILA-22, Industrial Control Relay
Technical Specifications
- Rated operational current (Ie): up to 16 A
- Rated insulation voltage (Ui): 690 V
- Rated operational voltage (Ue) max AC: 690 V
- Operating frequency: 9000 operations per hour
- Power consumption pick-up: 24 VA AC
- Power consumption sealing: 1.4 W AC
- Shock resistance: 5 g to 7 g per IEC/EN 60068-2-27
- Degree of protection: IP20
- Mounting method: DIN-rail or screw
- Connection type: Screw terminals
- Ambient operating temperature: -25 °C to 60 °C
- Rated control supply voltage: 110 V AC at 50 Hz, 120 V AC at 60 Hz
- Switching time (make contacts): 15-21 ms closing delay
- Switching time (make contacts): 9-18 ms opening delay
- Pollution degree: 3
- Overvoltage category: III
- Dimensions (H x L x W): 68mm x 75mm x 45mm
- Weight: 0.24 kg
Key Features
- 2 Normally Open (N/O) and 2 Normally Closed (N/C) contacts
- Screw terminal connections for secure wiring
- AC operation at 110 V 50 Hz and 120 V 60 Hz
- Positive operating contacts compliant with EN 60947-5-1 appendix L
- IP20 degree of protection
- Mechanical lifespan of 20,000,000 operations
- Rated operational current up to 16 A
- Rated insulation voltage of 690 V
- Shock resistance up to 7 g according to IEC/EN 60068-2-27
- Suitable for DIN-rail or screw mounting
- Protection against direct contact from front (EN 50274)
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching and control circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long mechanical lifespan reduces waste and replacement frequency
- Energy-efficient coil operation minimizes power consumption
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller DILA-22 Contactor Relay is available for immediate purchase, ideal for industrial and commercial electrical control applications.
