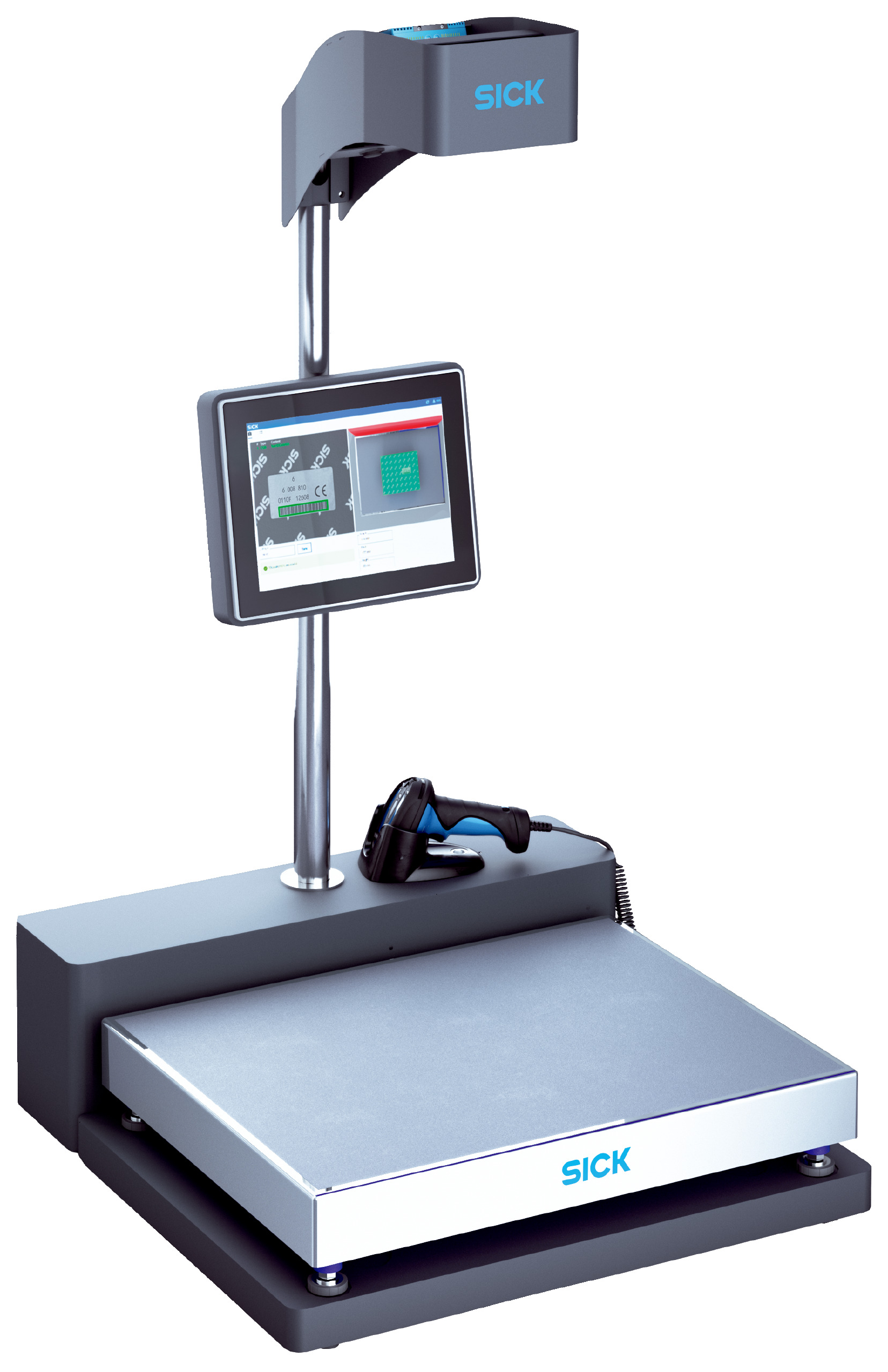

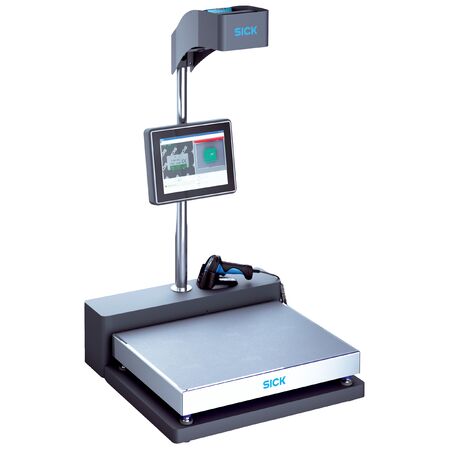

Dimensioning System MDAV-L654-HH-IC | 9 Mpixel Sensor | Legal-for-Trade Certified | Handheld Scanner Included | by SICK
The MDAV-L654-HH-IC dimensioning system features a 9 Mpixel sensor and high-resolution 6mpx color image recording, making it ideal for precise volume and weight measurement in industrial applications. With a throughput of up to 1200 pieces per hour and support for multiple code types, this system enhances logistics efficiency and reduces waste. Perfect for professionals seeking reliable measurement and identification solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 1330mm x 690mm x 700mm
- Weight: 70 kg
Key Features
- 9 Mpixel sensor resolution with adjustable manual focus
- High resolution 6mpx color image recording, optionally cropped to object
- Handheld scanner included
- Standard FOV multiplied by 3.5 for code reading
- Legal-for-trade certified for dimensioning and weighing (NTEP, OIML, CWM)
- Automatic trigger when placing an object
- Supports multiple code types including 1D, 2D, Stacked code, PDF417, Aztec, Maxi-Code
- Throughput of up to 1200 pieces per hour
- Accuracy of object coverage typically ±5 mm in all dimensions for known shapes
- Ethernet interface with TCP/IP, FTP, SFTP support
- Outputs include dimensions, volume, code data, weight, custom fields, status, and image output
Professional Installation Requirements
- Installation and setup should be performed by qualified personnel familiar with industrial measurement and weighing systems.
Applications
- Dimension and contour measurement
- Volume measurement
- Weight measurement
- 1D and 2D code identification
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise measurement and identification reducing waste and improving logistics efficiency
- Supports digital data output reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MDAV-L654-HH-IC is available for immediate purchase, ideal for industrial dimensioning, weighing, and code identification applications.
