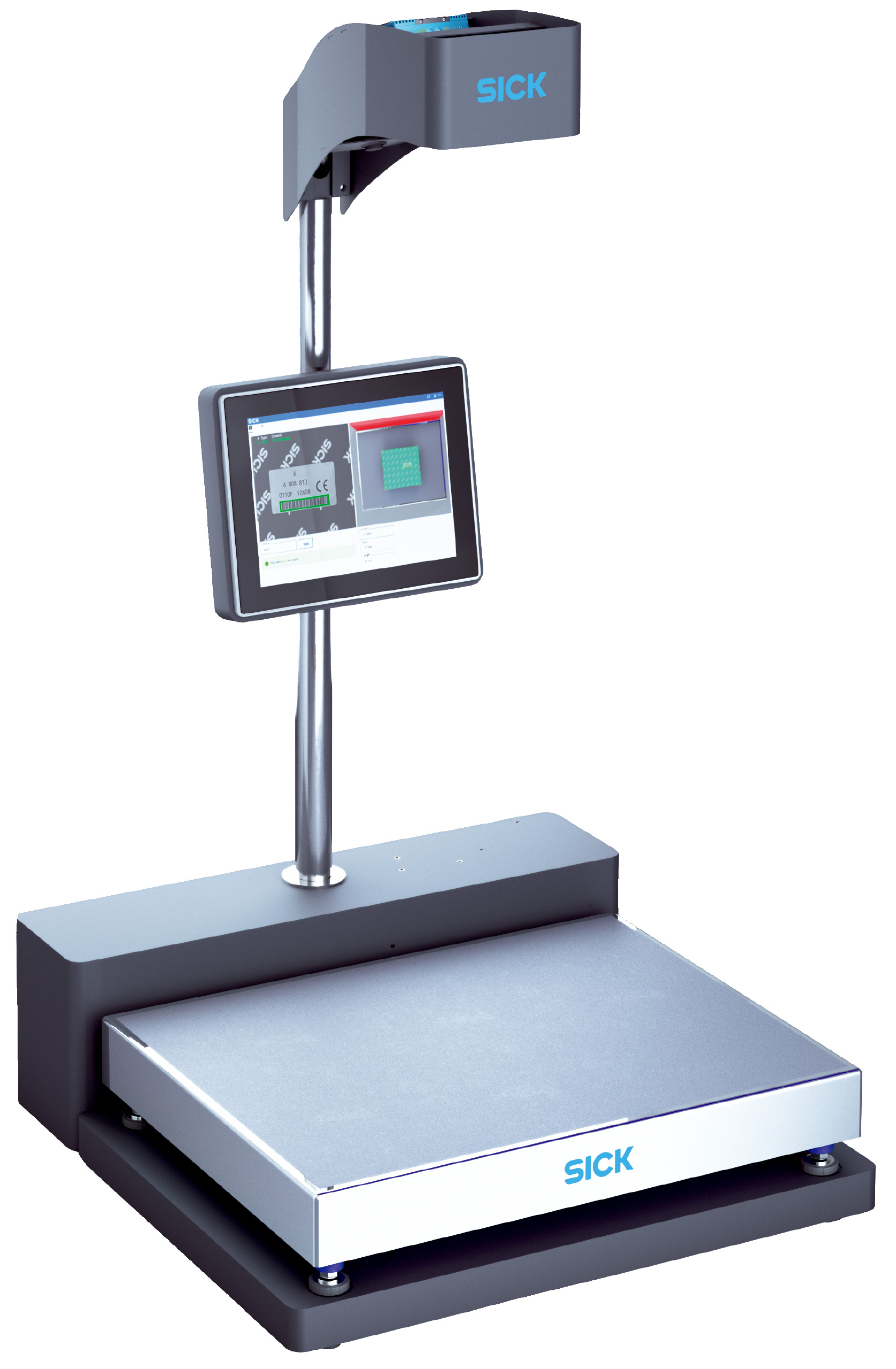

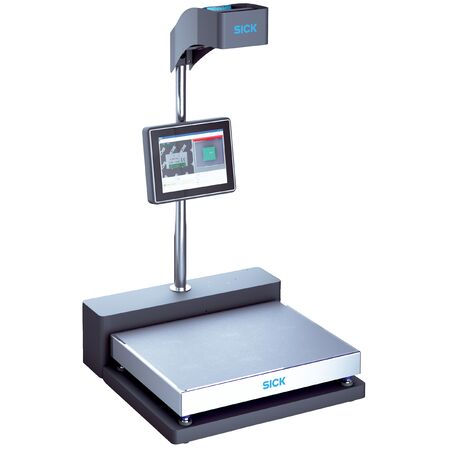

Dimensioning System MDAV-L654-IC | 9 Megapixel Sensor | Legal-for-Trade Certified | Automatic Triggering | by SICK
The MDAV-L654-IC Dimensioning System is designed for precise industrial measurement and weighing of packages. Featuring a 9 Megapixel sensor with adjustable focus and legal-for-trade certifications, it ensures accurate data capture for logistics and manufacturing applications. With a throughput of up to 1200 packages per hour and Ethernet connectivity, this system is perfect for optimizing shipping logistics and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 9 Megapixels
- Focus: Adjustable manually
- Image recording: Included
- Object infeed/outfeed: Manual
- Reading field size: Standard FOV multiplied by 3.5
- Color image properties: High resolution 6 MP, optional cropping
- Legal-for-trade certifications: NTEP, OIML, CWM
- Enclosure rating: IP20
- Supply voltage: 24 V DC
- Panel PC: 12 inch touch display with 1024 x 768 RGB resolution
- Trigger: Automatic on object placement
- Maximum object size: 800 mm x 500 mm x 400 mm
- Minimum object size: 40 mm x 40 mm x 10 mm
- Throughput: 1200 packages per hour
- Accuracy of object coverage: ±5 mm in all dimensions for known shapes
- Accuracy of scale: 5 g to 20 g depending on weight range
- Interfaces: Ethernet with TCP/IP, FTP, SFTP
- Output data: Dimensions, volume, code data, weight, images, custom fields
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +60°C
- Relative humidity: Up to 90%, non-condensing
- Dimensions (H x L x W): 1330mm x 690mm x 700mm
- Weight: 70 kg
Key Features
- 9 Megapixel sensor resolution with adjustable manual focus
- High resolution 6 Megapixel color image capture with optional cropping to object
- Legal-for-trade certified for dimensioning and weighing (NTEP, OIML, CWM)
- Automatic triggering upon object placement
- Supports multiple code types including 1D, 2D, PDF417, Aztec, Maxi-Code
- Throughput of up to 1200 packages per hour
- Ethernet connectivity with TCP/IP, FTP, SFTP protocols
- Output data includes dimensions, volume, code data, weight, images, and custom fields
Professional Installation Requirements
- Installation and setup should be performed by qualified personnel familiar with industrial measurement systems and electrical safety standards.
Applications
- Industrial dimensioning and weighing of packages and objects
- Logistics and warehouse automation for volume and weight measurement
- Code reading and identification including 1D, 2D, and stacked codes
- Quality control and verification in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate measurement reducing material waste and optimizing shipping logistics
- Supports digital data output reducing paper usage
- Energy efficient 24 V DC operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK MDAV-L654-IC Dimensioning and Weighing System is available for immediate purchase, ideal for industrial, logistics, and manufacturing applications requiring precise measurement and code reading.
