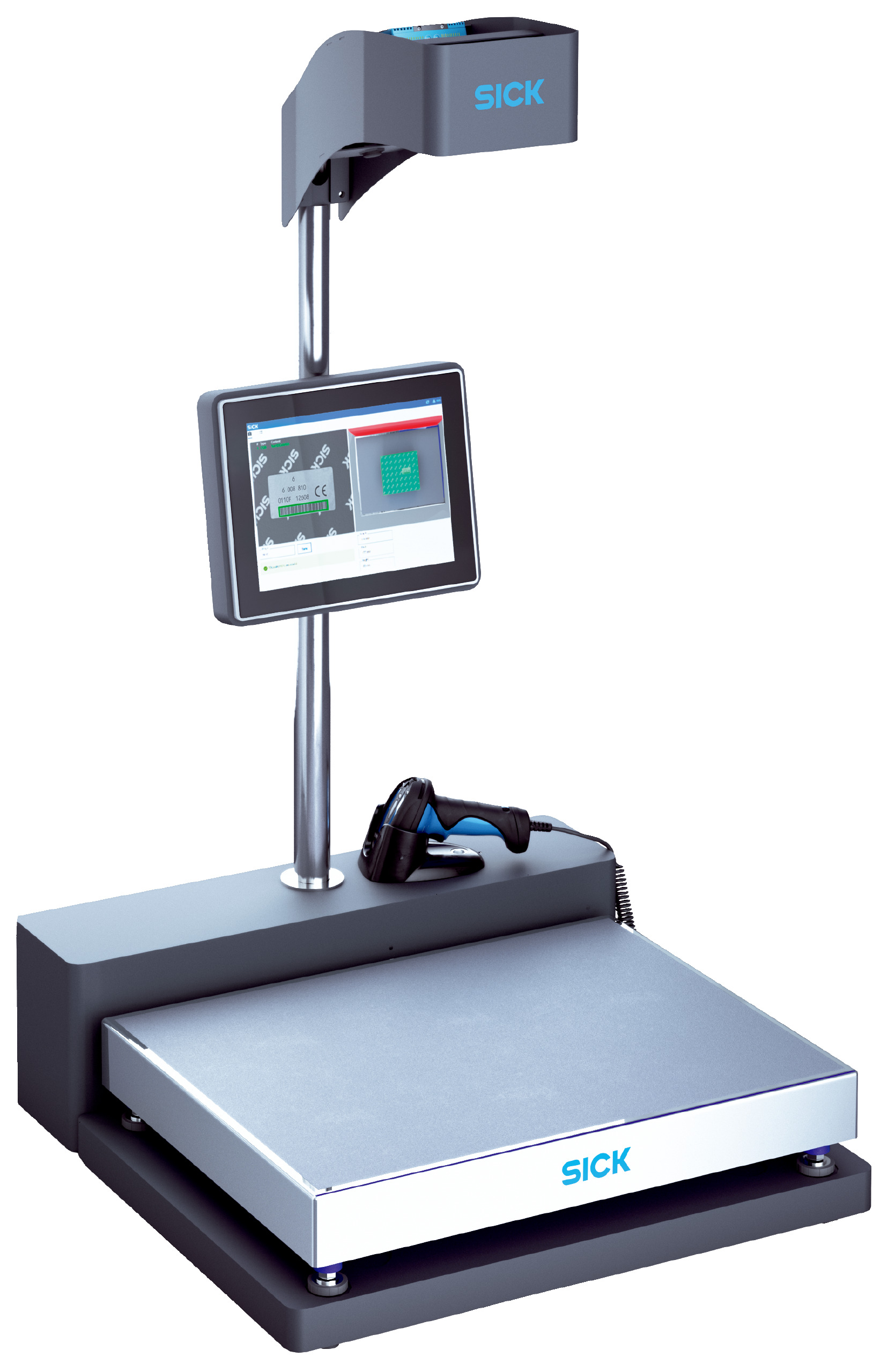

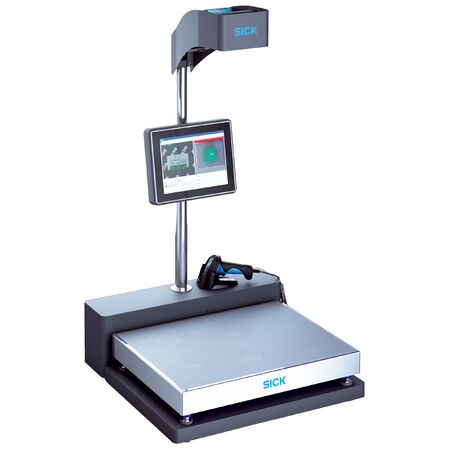

Dimensioning and Weighing System | 1 Mpixel Sensor | Handheld Code Scanner | Legal-for-Trade Certified | by SICK
The Dimensioning and Weighing System MDAV-L632-HH features a 1 Mpixel sensor with adjustable manual focus, making it perfect for measuring dimensions, contours, and volumes of various objects. With a throughput of up to 1000 pieces per hour and support for multiple code types, this system is ideal for industrial and logistics applications that require precise measurement and weighing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1 Mpixel
- Focus: Adjustable manually
- Enclosure rating: IP20
- Supply voltage: 24 V DC
- Panel PC: 12” touch display (1024 x 768 RGB)
- Trigger: Automatic when placing an object
- Total weight: 70 kg
- External power supply: AC 100 V to 240 V, 50 Hz to 60 Hz
- Code types supported: 1D, 2D, Stacked code, PDF417, Aztec, Maxi-Code
- Minimum object size: 40 mm x 40 mm x 10 mm
- Maximum object size: 600 mm x 500 mm x 400 mm (up to 800 mm x 500 mm x 200 mm)
- Throughput: 1000 pieces per hour
- Accuracy of object coverage: ±5 mm x ±5 mm x ±5 mm for known shapes
- Accuracy of scale: d=5 g (40 g to 15 kg), d=10 g (15 kg to 30 kg), d=20 g (30 kg to 60 kg)
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +60 °C
- Permissible relative humidity: ≤ 90%, non-condensing
- Interfaces: Ethernet with TCP/IP, FTP, SFTP
- Dimensions (H x L x W): 1330mm x 690mm x 700mm
- Weight: 70 kg
Key Features
- 1 Mpixel sensor resolution with adjustable manual focus
- Includes handheld scanner Lector632 for code reading
- Standard field of view for code reading with color image capture
- Legal-for-trade certified for dimensioning and weighing (NTEP, OIML, CWM)
- Automatic trigger when placing an object
- Throughput up to 1000 pieces per hour
- Supports multiple code types including 1D, 2D, Stacked code, PDF417, Aztec, Maxi-Code
- Ethernet interface with TCP/IP, FTP, SFTP support
- Outputs include dimensions, volume, code data, weight, status, and image files
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Measuring dimension, contour, and volume of objects
- Weighing objects with legal-for-trade certification
- Identifying 1D and 2D codes including stacked codes and PDF417
- Industrial and logistics applications requiring precise dimensioning and weighing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables accurate measurement and weighing to reduce shipping errors and waste
- Supports efficient logistics and inventory management to optimize resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MDAV-L632-HH Dimensioning and Weighing System is available for immediate purchase, ideal for industrial, logistics, and warehouse applications requiring precise measurement and code reading.
