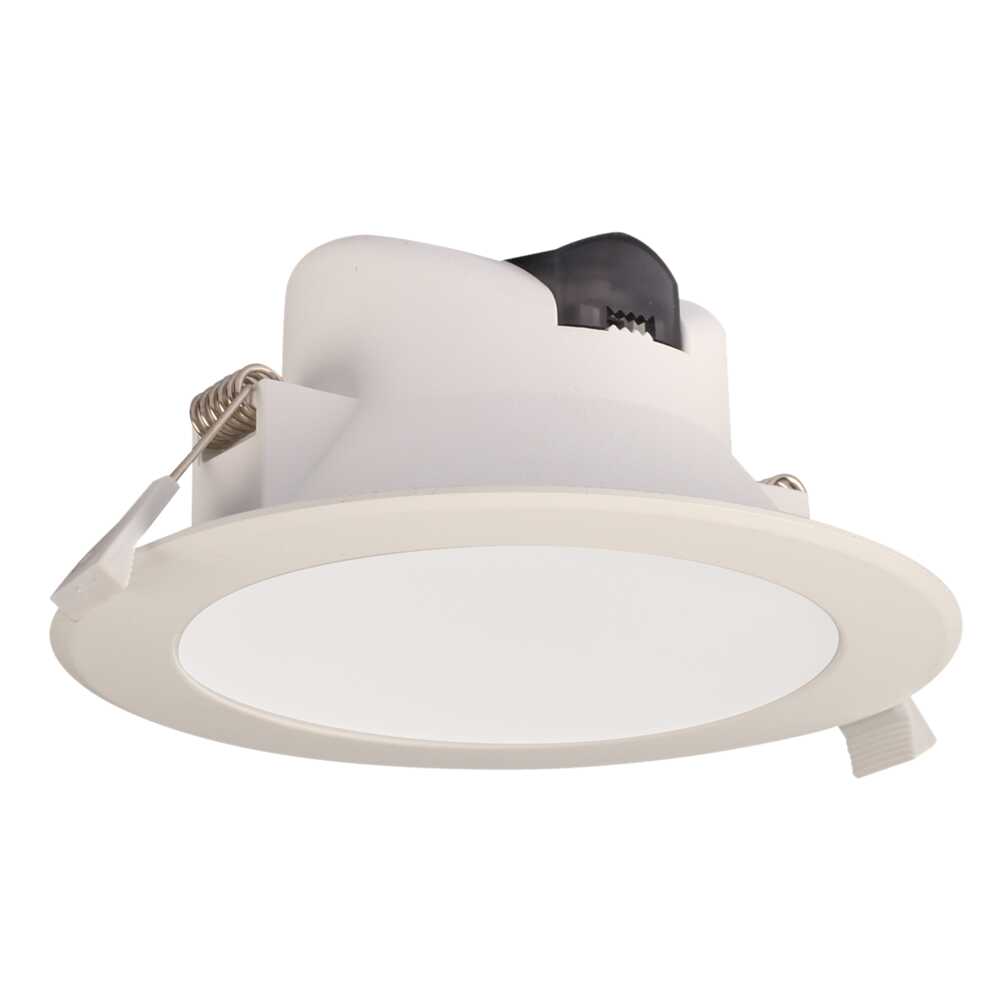

Dimmable LED Downlight 12W | Selectable CCT | IP44 Rated | White by SAL

BRAND: SAL

SKU: S9066TC WH

$36.40 List price: $37.70

+ −

30 Days Return Delivery Options

Dimmable LED downlight with 12W power and selectable CCT options (3000K, 4000K, 5700K)—ideal for residential interiors. Built for energy efficiency, with IP44 rating and opal polycarbonate diffuser.

Description
Attachments

Product Name/Title: WAVE S9066TC - WHITE

Brand: SAL

SKU: S9066TC WH

Colour: WHITE

Alternatively Known As: Dimmable LED Downlight, IP44 LED Downlight, Selectable CCT Downlight

Technical Specifications

Input Voltage: 240V
Power: 12W
Lumens: 1300/1450/1350
CCT: 3000K/4000K/5700K
Beam Angle: 90˚
Dimmable: Yes
CRI: 80
Body Colour: White
Cut Out: 125mm
Dimensions (H x L x W): 66mm x 145mm x 145mm
Weight: 0.5 kg

Key Features

12W Dimmable IP44 LED downlight with selectable CCT.
Selectable CCT options: 3000K, 4000K, 5700K.
Poly covered aluminium body, IC - 4 rated, double insulated.
Opal polycarbonate diffuser.
Integral, trailing edge dimmable LED driver.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Ideal for any interior space.

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Energy-efficient design reduces power consumption.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The WAVE S9066TC - White Dimmable LED Downlight is available now for immediate purchase. Ideal for residential interior spaces.

Installation Sheets (S9064TC_-_S9065TC_-_S9066TC-6-24.pdf, 5,963 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
