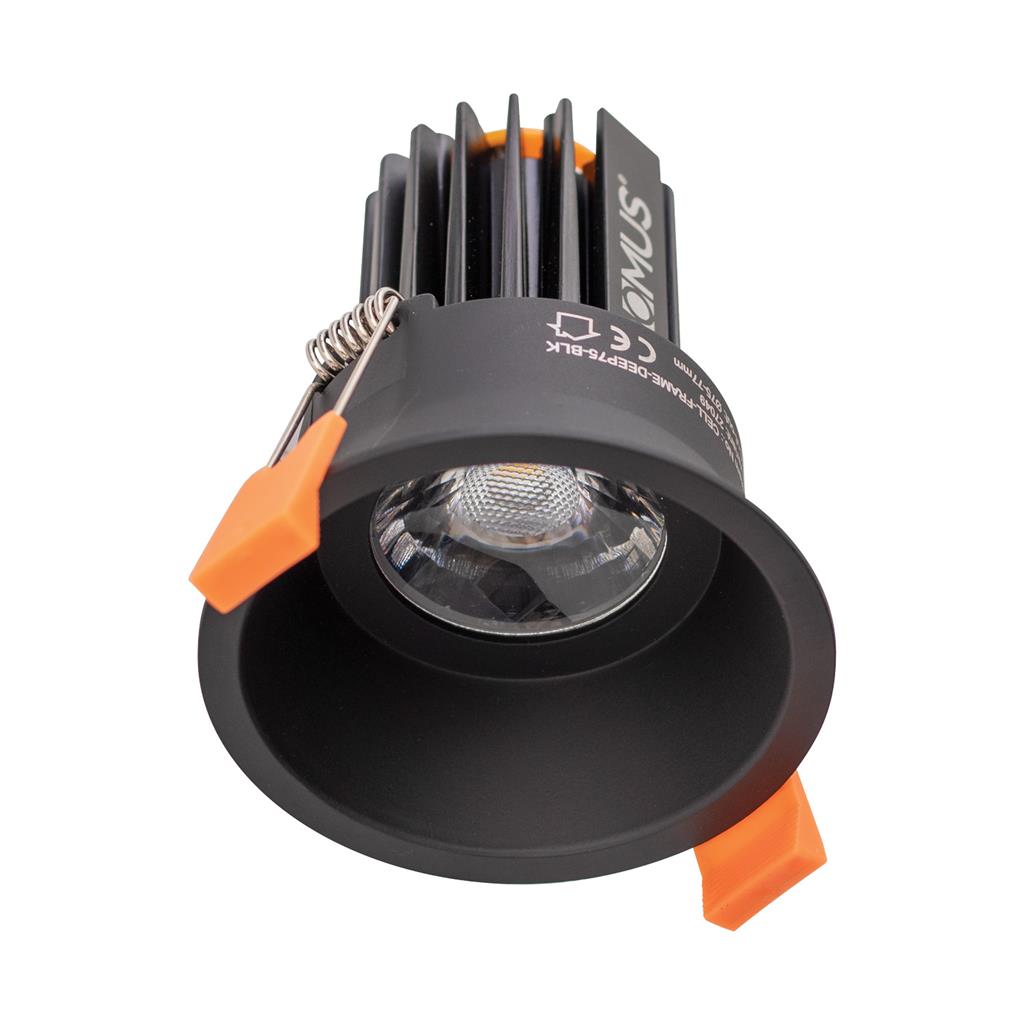

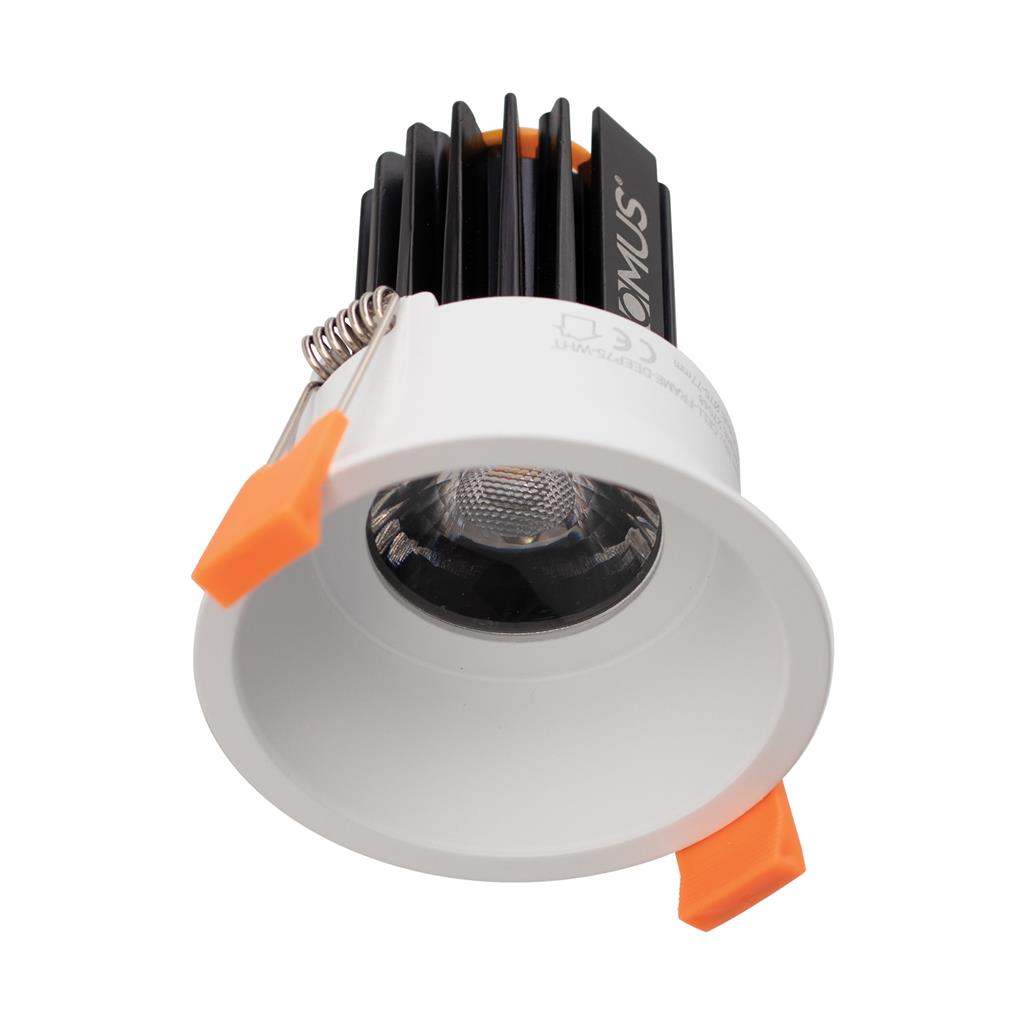

Cell 9W 5CCT 60° D75 Complete Dimmable Downlight Kit

Dimmable LED Downlight Kit | 9W | 5CCT Color Options | IP44 Rated | by Domus Lighting

BRAND: Domus Lighting

SKU: 21670

$82.50 List price: $99.80

+ −

30 Days Return Delivery Options

Upgrade your lighting with this dimmable LED downlight kit, featuring a 9W power output and 5CCT color temperature options from 2700K to 5700K. Ideal for residential and commercial applications, it offers easy retrofit installation and is IP44 rated for moisture resistance.

Description

Product Name/Title: Cell 9W 5CCT 60° D75 Complete Dimmable Downlight Kit

Brand: Domus Lighting

SKU: 21670

Alternatively Known As: LED Downlight Kit, Dimmable LED Downlight, MR16 LED Replacement, 5CCT LED Downlight, Retrofit LED Downlight

Technical Specifications

Wattage: 9W
Input Voltage: 240V
IP Rating: IP44
Dimmable: Yes
Colour Temperature Options: 2700K, 3000K, 4000K, 5000K, 5700K
Beam Angle: 60°
Complete with LED driver, flex, and plug
Dimensions (H x L x W): 50mm x 75mm x 75mm
Weight: 0.3 kg

Key Features

Plug and play LED lamp module and LED driver set
Dimmable LED driver included
5CCT option allows changing colour temperature between 2700K, 3000K, 4000K, 5000K, and 5700K
IP44 rated for moisture resistance
Complete downlight solution with click-in frames available
Easy retrofit replacing MR16 halogen lamps and transformers
Includes flex and plug for easy installation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.

Applications

Residential homes
Commercial projects such as hotels, clubs, pubs, and bars
Retrofit for MR16 halogen lamp replacements
Suitable for most MR16 downlight frames

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Energy-efficient 9W LED reduces power consumption compared to traditional halogen lamps
Long lifespan reduces waste and replacement frequency
Dimmable feature allows for energy savings by adjusting light output

Warranty Information

3 years replacement warranty.

Available Now

The Domus Lighting Cell 9W 5CCT 60° D75 Complete Dimmable Downlight Kit is available now for immediate purchase. Ideal for residential and commercial retrofit lighting projects.

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
