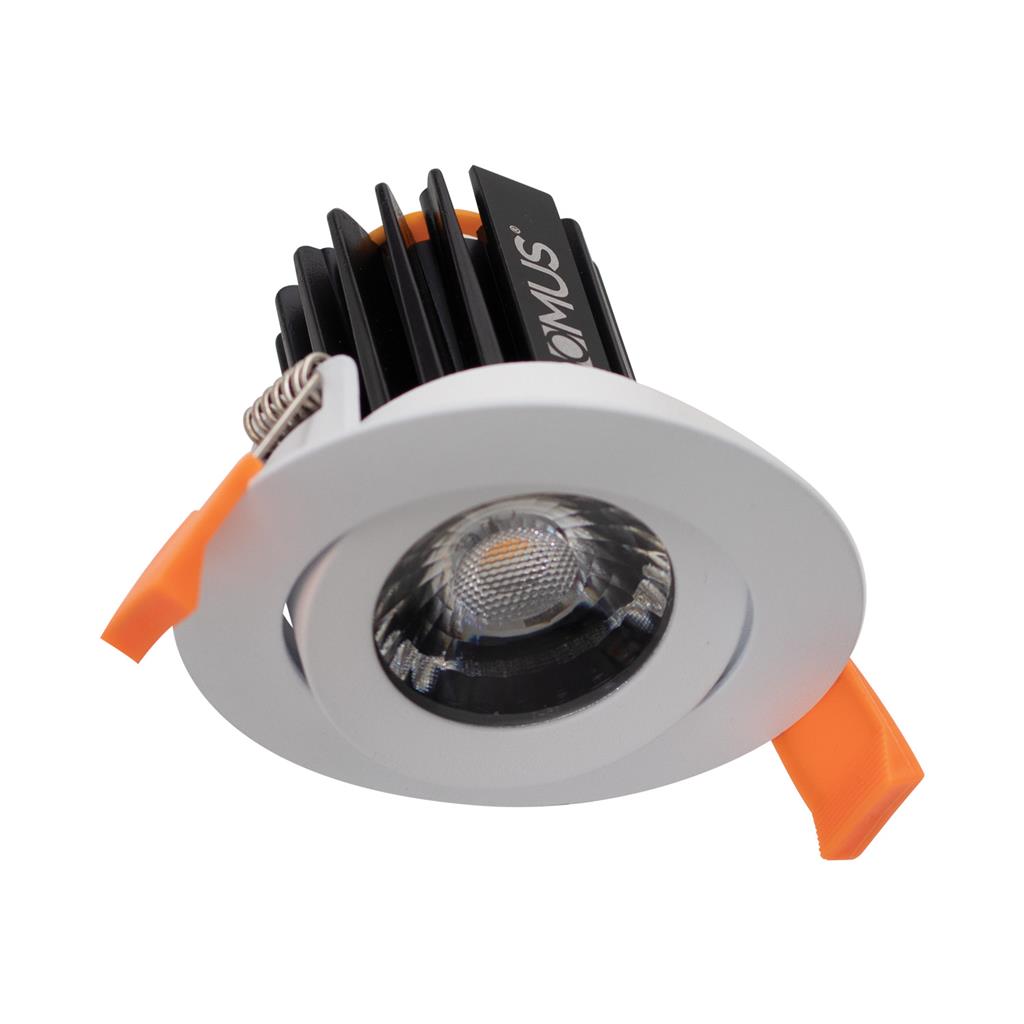

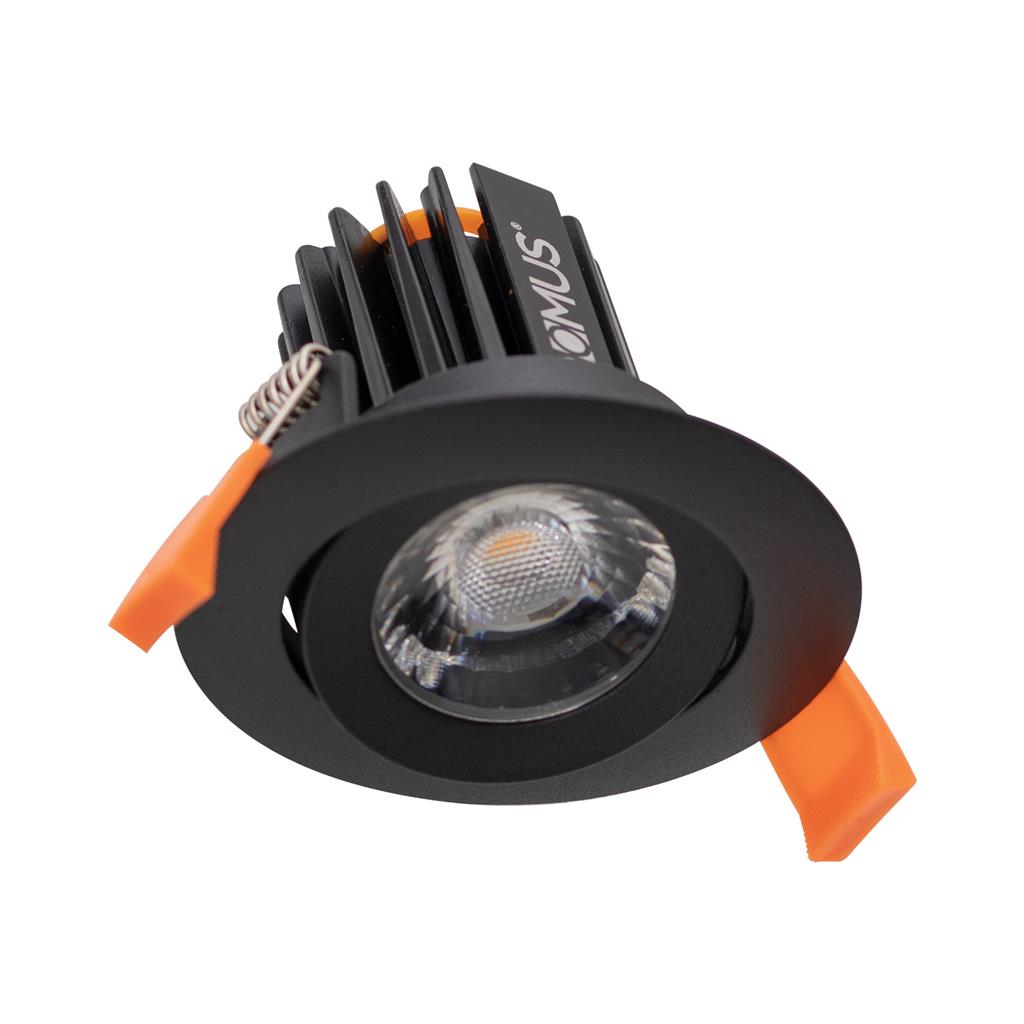

Cell 9W 5CCT 60° T75 Complete Dimmable Downlight Kit

Dimmable LED Downlight Kit | 9W | 5CCT Color Temperature | IP44 Rated | by Domus Lighting

BRAND: Domus Lighting

SKU: 21676

$84.90 List price: $102.70

+ −

30 Days Return Delivery Options

Upgrade your lighting with this 9W dimmable LED downlight kit featuring 5CCT color temperature options from 2700K to 5700K. Ideal for residential and commercial applications, it offers easy retrofit for MR16 halogen lamps and includes a dimmable driver for energy efficiency.

Description

Product Name/Title: Cell 9W 5CCT 60° T75 Complete Dimmable Downlight Kit

Brand: Domus Lighting

SKU: 21676

Alternatively Known As: 9W Dimmable LED Downlight Kit, 5CCT LED Downlight, MR16 LED Retrofit Kit, Adjustable Colour Temperature Downlight

Technical Specifications

Wattage: 9W
Input Voltage: 240V
IP Rating: IP44
Dimmable: Yes
Colour Temperature Options: 2700K, 3000K, 4000K, 5000K, 5700K
Beam Angle: 60°
Complete with LED driver, flex, and plug
Dimensions (H x L x W): 50mm x 75mm x 75mm
Weight: 0.2 kg

Key Features

Plug and play LED lamp module and LED driver set
Dimmable LED driver included
5CCT option allows changing colour temperature between 2700K, 3000K, 4000K, 5000K, and 5700K
IP44 rated for protection against splashing water
Complete downlight solution with flex and plug
Easy retrofit replacing MR16 halogen lamps and transformers
Compatible with a range of click-in frames
Three Year Replacement Warranty

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.

Applications

Residential homes
Commercial projects such as hotels, clubs, pubs, and bars
Retrofit for MR16 halogen lamp replacements
Suitable for most MR16 downlight frames

Standards & Compliance

Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Energy-efficient LED technology reduces power consumption compared to halogen lamps
Long lifespan reduces waste and replacement frequency
Dimmable feature allows for energy savings by adjusting light output

Warranty Information

Three Year Replacement Warranty.

Available Now

The Domus Lighting Cell 9W 5CCT 60° T75 Complete Dimmable Downlight Kit is available now for immediate purchase. Ideal for residential and commercial retrofit lighting applications.

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
