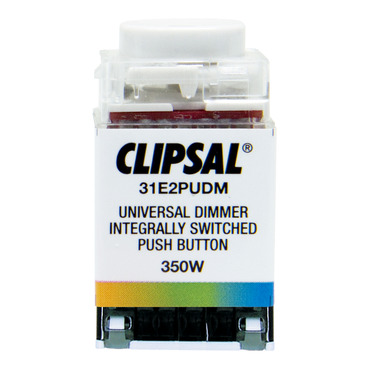

Dimmer Mechanism ISPB 350W | Universal Push Button | Over-Temperature Protection | White Electric Finish | @Pack of 1 | by Clipsal
The Dimmer Mechanism ISPB 350W is a universal push button dimmer designed for versatile lighting control in residential and commercial spaces. With a maximum load capacity of 350W, it supports LED, CFL, incandescent, and halogen lamps. Featuring over-temperature protection and a sleek White Electric finish, this dimmer enhances both functionality and aesthetics in any indoor setting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dimmer Mechanism ISPB 350W | Universal Push Button | Over-Temperature Protection | White Electric Finish | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: CLI31E2PUDMWE
Alternatively Known As: Clipsal 31E2PUDMWE, Clipsal Universal Dimmer, Clipsal Push Button Dimmer, Clipsal 350W Dimmer, Clipsal LED Dimmer, Clipsal Dimmer Mechanism
Technical Specifications
- Input Voltage: 220-240V AC 50Hz
- Load Rating: 350W maximum (LED, CFL, incandescent, halogen compatible)
- Dimming Method: Trailing edge (universal)
- Control: Push button on/off and dimming
- Protection: Over-temperature and short-circuit
- Finish: White Electric (WE)
- Mounting: Standard wall plate compatible
- Dimensions (H x L x W): 23mm x 45mm x 23mm
- Weight: 0.1 kg
Key Features
- Universal push button dimmer mechanism
- Compatible with LED, CFL, incandescent, and halogen lamps
- 350W maximum load capacity
- Soft start and gentle off features to prolong lamp life
- Over-temperature and short-circuit protection
- White Electric (WE) finish for modern aesthetics
- Retrofit design fits standard wall plates
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Residential: Living rooms, bedrooms, dining areas
- Commercial: Offices, meeting rooms, hospitality venues
- General: Any indoor location requiring adjustable lighting control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables energy savings by allowing users to reduce light output as needed
- Extends lamp life through soft start and gentle off features
- Reduces overall power consumption in lighting systems
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Clipsal Dimmer Mech ISPB 350W WE (CLI31E2PUDMWE) is available for immediate purchase. Ideal for residential and commercial lighting control applications.
