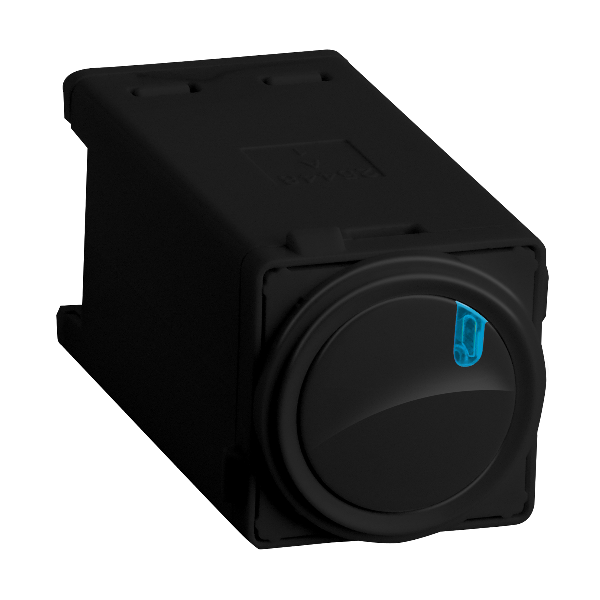

Dimmer Mechanism Push Button 3 Wire 16A 250V | Black Finish | Soft-Start & Dimming Memory | @Each of 1 | by Legrand
The Dimmer Mechanism Push Button 3 Wire 16A 250V in black is perfect for controlling dimmable LEDs, incandescent, and halogen lights. With features like soft-start mode and a memory function for dimming levels, it’s designed for both residential and commercial applications. Ensure professional installation for optimal performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dimmer Mechanism Push Button 3 Wire 16A 250V | Black Finish | Soft-Start & Dimming Memory | @Each of 1 | by Legrand
Brand: Legrand
SKU: EM400A3PBL
Alternatively Known As: Legrand Push Button Dimmer, 3 Wire Dimmer Switch, 16A Dimmer Mechanism, Black Dimmer Switch
Technical Specifications
- Rated Current: 16A
- Voltage: 250V a.c.
- Power Rating: 400VA
- Wiring: 3 wire dimmer
- Compatible Light Sources: Dimmable LEDs, incandescent, halogen, dimmable compact fluorescents
- Programmable LED indicator (Blue or Red)
- Soft-start mode and max/min light level programming
- Dimming memory function
- Short circuit protection
- KickStart mode for modern light sources
- Non-volatile memory for program parameters
- Dimensions (H x L x W): 50mm x 40mm x 50mm
- Weight: 0.15 kg
Key Features
- Compatible with dimmable LEDs, incandescent, halogen, and dimmable compact fluorescents
- 400VA, 3 wire dimmer mechanism
- Multi-way dimming option with EM800SLAVEUG
- Programmable LED indicator with blue or red light
- Programmable soft-start mode and adjustable max/min light levels
- Dimming level memory function
- Short circuit protection
- KickStart mode for modern light sources
- Program parameters stored in non-volatile memory
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper multi-way dimming setup.
Applications
- Residential lighting control for dimmable LEDs, incandescent, halogen, and compact fluorescents
- Commercial lighting systems requiring multi-way dimming
- Suitable for modern light sources with KickStart mode
Standards & Compliance
- Complies with AS/NZS 3100 - Electrical Equipment (Safety)
Environmental Benefits
- Supports energy saving by enabling dimming of LED and other energy-efficient light sources
- Soft-start mode reduces inrush current, extending bulb life and reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Excel Life 3 Wire 16A 250V Push Button Dimmer Mechanism in black is available for immediate purchase, ideal for residential and commercial lighting control applications.
