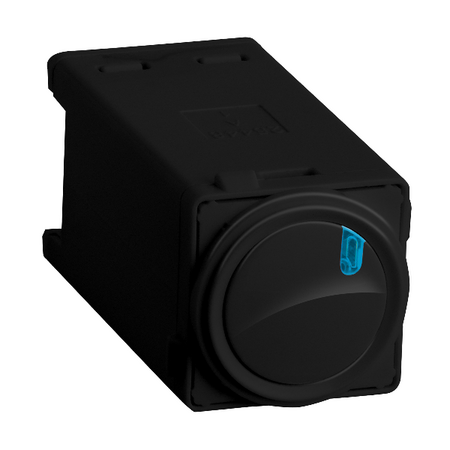

C-Bus Dimmer Controller 250V 3-Wire Black Legrand
The Dimmer Mechanism Push Button 3 Wire 16A 250V in black is perfect for controlling dimmable LEDs, incandescent, and halogen lights.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 16A
- Voltage: 250V a.c.
- Power Rating: 400VA
- Wiring: 3 wire dimmer
- Compatible Light Sources: Dimmable LEDs, incandescent, halogen, dimmable compact fluorescents
- Programmable LED indicator (Blue or Red)
- Soft-start mode and max/min light level programming
- Dimming memory function
- Short circuit protection
- KickStart mode for modern light sources
- Non-volatile memory for program parameters
- Dimensions (H x L x W): 50mm x 40mm x 50mm
- Weight: 0.15 kg
Key Features
- Compatible with dimmable LEDs, incandescent, halogen, and dimmable compact fluorescents
- 400VA, 3 wire dimmer mechanism
- Multi-way dimming option with EM800SLAVEUG
- Programmable LED indicator with blue or red light
- Programmable soft-start mode and adjustable max/min light levels
- Dimming level memory function
- Short circuit protection
- KickStart mode for modern light sources
- Program parameters stored in non-volatile memory
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper multi-way dimming setup.
Applications
- Residential lighting control for dimmable LEDs, incandescent, halogen, and compact fluorescents
- Commercial lighting systems requiring multi-way dimming
- Suitable for modern light sources with KickStart mode
Standards & Compliance
- Complies with AS/NZS 3100 - Electrical Equipment (Safety)
Environmental Benefits
- Supports energy saving by enabling dimming of LED and other energy-efficient light sources
- Soft-start mode reduces inrush current, extending bulb life and reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Excel Life 3 Wire 16A 250V Push Button Dimmer Mechanism in black is available for immediate purchase, ideal for residential and commercial lighting control applications.
