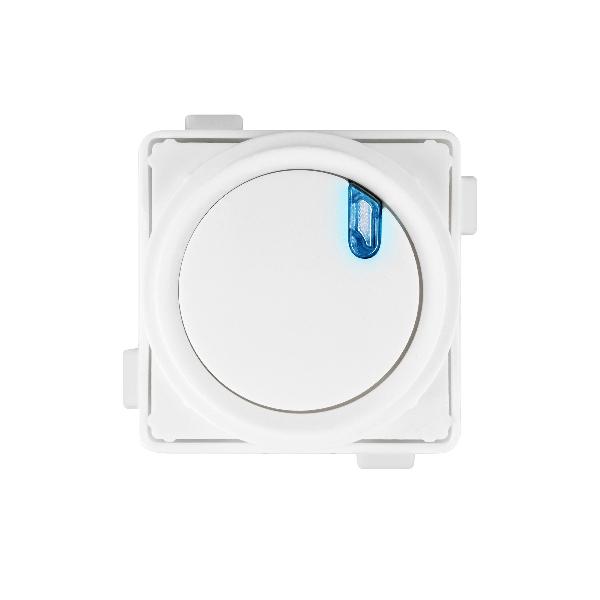

Dimmer Mechanism Push Button 3 Wire 16A 350V AC | Programmable LED Indicator | Soft-Start & Memory Function | @Each of 1 | by Legrand
The Dimmer Mechanism Push Button 3 Wire 16A 350V AC is perfect for controlling dimmable LEDs, incandescent, and halogen lights. With features like a programmable red/blue LED indicator, soft-start mode, and dimming level memory, it enhances both residential and commercial lighting systems. Designed for professional installation, this dimmer ensures compliance with safety standards while providing energy-saving benefits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dimmer Mechanism Push Button 3 Wire 16A 350V AC | Programmable LED Indicator | Soft-Start & Memory Function | @Each of 1 | by Legrand
Brand: Legrand
SKU: EM400A3PMW
Alternatively Known As: Push Button Dimmer Switch, 3 Wire Dimmer Mechanism, LED Dimmer Switch, Legrand Dimmer
Technical Specifications
- Rated current: 16A
- Voltage: 350V a.c.
- Power rating: 350VA
- Wiring: 3 wire
- LED indicator: Programmable red/blue with multiple modes
- Compatibility: Dimmable LEDs, incandescent, halogen, compact fluorescents
- Protection: Short circuit protection
- Memory: Dimming level memory and program parameters stored in non-volatile memory
- Additional features: Soft-start mode, KickStart mode, multi-way dimming option
- Dimensions (H x L x W): 83mm x 162mm x 126mm
- Weight: 0.15 kg
Key Features
- Compatible with dimmable LEDs, incandescent, halogen, and dimmable compact fluorescents
- 350VA, 3 wire dimmer mechanism
- Multi-way dimming option with EM800SLAVEWE
- Programmable red/blue LED indicator with configurable modes
- Soft-start mode and adjustable max/min light levels
- Dimming level memory function
- Short circuit protection
- KickStart mode for modern light sources
- Program parameters stored in non-volatile memory
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards and proper wiring.
Applications
- Residential lighting control for dimmable LEDs, incandescent, halogen, and compact fluorescents
- Commercial lighting systems requiring multi-way dimming
- Suitable for modern light sources with soft-start and memory functions
Standards & Compliance
- Complies with AS/NZS 3100 - Electrical equipment safety
Environmental Benefits
- Supports energy saving by enabling dimming of LED and other energy-efficient light sources
- Soft-start mode reduces inrush current, extending bulb life and reducing waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Legrand Excel Life 3 Wire Push Button Dimmer Mechanism is available for immediate purchase, ideal for residential and commercial lighting control applications.
