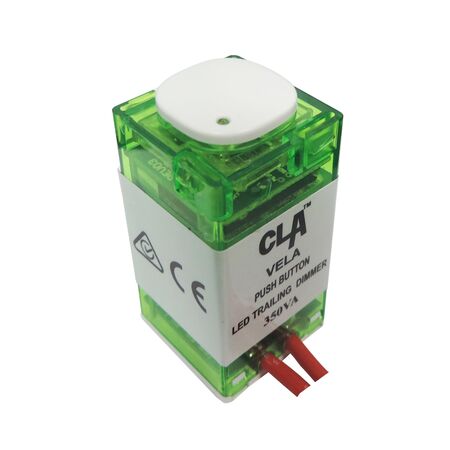

Dimmer Push Button 10-350VA LED Halogen Incandescent CLA Lighting

BRAND: CLA Lighting
SKU: VELA
$61.10 List price: $81.40
+ −
30 Days Return Electricians Unlock Trade Access
CLA Lighting push button dimmer features 10-350VA capacity, trailing edge electronics and LED, halogen and incandescent compatibility. Ideal for living areas.

Alternatively Known As: VELA Push Button Dimmer

Technical Specifications
  • Voltage: 220‑240 V AC 50 Hz
  • Load Range: 10–350 VA
  • Dimming Technique: Trailing‐edge phase control
  • Mounting Centres: 84 mm Australian pattern plate
  • IP Rating: IP20
  • Soft‑start, overload and short‑circuit protection
  • Soft start and hi‑pot tested to 3 kVrms, <1 mA leakage
  • Ambient Operating: 0 to 40 °C; Storage: 0 to 60 °C; Humidity: 10%–95% RH non‑condensing
  • Altitude: ≤ 2000 m above sea level
  • RoHS and REACH compliant; CE and RCM certified
  • Lifecycle: Minimum 20,000 push cycles
  • Dimensions (H x L x W): 44.3mm x 44.3mm x 23.5mm
  • Weight: 0.1 kg
Key Features
  • Compatible with dimmable LED, incandescent, high‑voltage halogen and LV halogen (via electronic transformers)
  • Push‑button control: short press to toggle, long press to adjust dimming
  • Two interchangeable face caps (round & square) to suit Australian plates
  • Built‑in soft‑start, overload and short‑circuit protection
  • Compact form factor for easy mounting into standard wall plates
Professional Installation Requirements
  • Must be installed by a licensed electrician.
Applications
  • Dimming LED globes in living areas
  • Controlling halogen and incandescent lighting circuits
  • Retrofit or new installations in Australian wall plates (84 mm centres)
  • Use with electronic transformers for low‑voltage halogen
Standards & Compliance
  • Wiring practices to comply with AS/NZS 3133
Environmental Benefits
  • Trailing‑edge dimming compatible with energy‑efficient LED globes
  • RoHS‑ and REACH‑compliant manufacturing reduces hazardous materials
  • Soft‑start extends lamp and system lifespan
Warranty Information

3‑year replacement warranty.

Available Now

Available through Aspen Pumps and authorised Australian electrical distributors.
