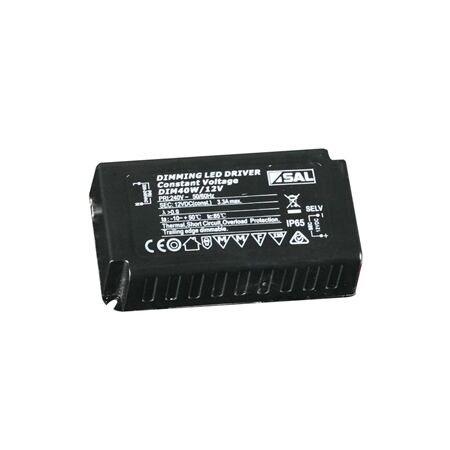

Dimming Constant Voltage Driver | 40W 12V | IP65 Weatherproof
Dimming constant voltage driver with 40W 12V output and IP65 weatherproof rating—ideal for outdoor lighting applications. Built for safety and reliability, featuring trailing edge dimming and overload protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dimming Constant Voltage Driver | 40W 12V | IP65 Weatherproof
SKU: DIM40W/12V
Alternatively Known As: LED Dimming Driver 12V, 40W Constant Voltage LED Driver, IP65 LED Power Supply, Weatherproof LED Driver
Technical Specifications
- Input Current: 0.25A
- Power Factor: >0.90
- Input Voltage: 240V~ 50Hz
- Operating Temperature (Ta): -10 to 50ºC
- Output Voltage: 12V DC
- Maximum Case Temperature (Tc): 85ºC
- Dimensions: 110 x 60 x 33 mm
- Dimensions (H x L x W): 33mm x 110mm x 60mm
- Weight: 0.3 kg
Key Features
- Independent compact design
- Trailing edge dimming
- Safe no load operation
- Overload protection
- Short circuit protection
- Overheating protection
- SELV equivalent
- EMC compliant
- Output wire leads
- Double insulation
- IP65 weatherproof
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Suitable for LED lighting systems requiring dimmable constant voltage power supply
- Indoor and outdoor lighting installations
- Commercial and residential lighting projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient design reduces power consumption
- Supports dimming to lower energy use and extend LED lifespan
- Weatherproof design reduces need for frequent replacements
Warranty Information
Standard 2 years warranty against manufacturing defects.
Available Now
The Dimming Constant Voltage Driver 40W 12V IP65 Weatherproof is available now for immediate purchase. Ideal for LED lighting systems in both indoor and outdoor environments.
