DIN Busbar 250A 60 Way | 4 Pole Top Feed | Encapsulated IP20 by NHP
DIN busbar with 250A rated current and 60 poles—ideal for industrial power distribution. Built for durability with encapsulated housing and IP20 protection, perfect for switchboards and distribution boards.
Sign in
Please login to continue to your account.

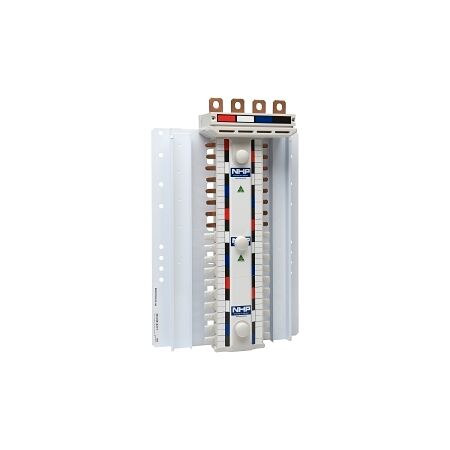

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 60 Way 4Pole Top Feed RNWNBN
Brand: NHP
SKU: NC260184TF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar
- Rated Current: 250 A
- Number of Poles: 60
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 566mm x 82mm x 100mm
- Weight: 5 kg
- 250A rated current with 60 poles for extensive connectivity.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power distribution reduces energy loss and enhances system performance.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 60 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.
