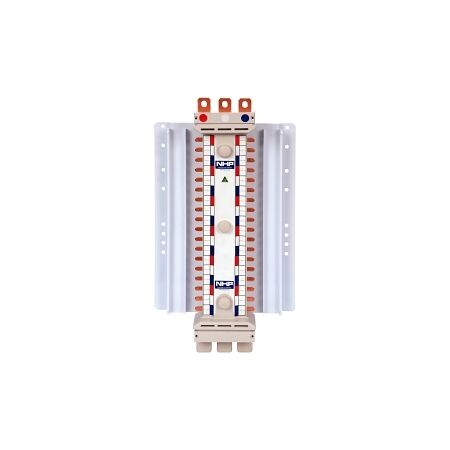

DIN Busbar Chassis 250A | 12/24 Way | 3-Phase Universal by NHP
DIN busbar chassis with 250A rated current and 3-phase input—ideal for industrial and commercial power distribution. Built for robust power handling, with encapsulated material housing for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A Split 12 Way 24 Way 3Pole Universal
Brand: NHP
SKU: NC2S1224183U
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar System
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 36
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Dimensions (H x L x W): 350mm x 82mm x 300mm
- Weight: 5 kg
Key Features
- 250A rated current for robust power handling.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A Split 12 Way 24 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
