DIN Busbar Chassis 250A 24 Way | 2Pole Bottom Feed | Red Black by NHP
DIN busbar chassis with 250A rated current and 24-way configuration—ideal for industrial and commercial power distribution. Built for robust power handling, with encapsulated material housing and IP20 protection.
Sign in
Please login to continue to your account.

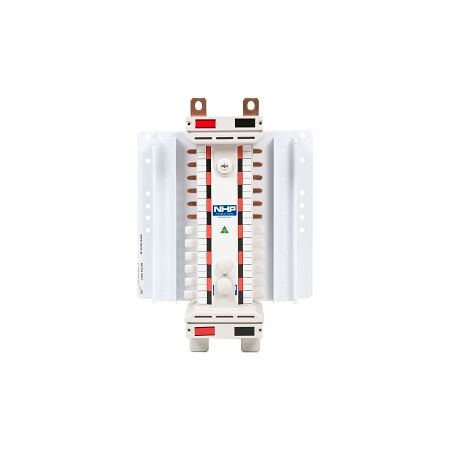

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 2Pole Bottom Feed Red Black
Brand: NHP
SKU: NC224182BF
Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar
- Rated Current: 250 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Short Time Withstand Current (0.3 sec): 20 kA
- Short Time Withstand Current (0.1 sec): 25 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 242mm x 300mm x 100mm
- Weight: 5.0 kg
- 250A rated current for robust power handling.
- 24-way configuration for versatile connections.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection suitable for indoor use.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
- Complies with relevant Australian standards for electrical safety.
- Designed for efficient power distribution, reducing energy loss.
1 year warranty against manufacturing defects.
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 24 Way 2Pole Bottom Feed Red Black is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
