Trade Discount 25%

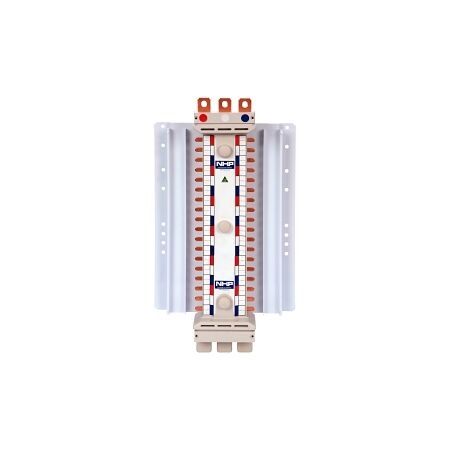

DIN Busbar Chassis 250A | 24 Way 3-Pole | IP20 Protection | Universal by NHP
DIN busbar chassis with 250A rated current and 24 way 3-pole configuration—ideal for industrial and commercial power distribution. Built for robust performance, with IP20 protection and encapsulated housing for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A Split 24 Way 24 Way 3Pole Universal
Brand: NHP
SKU: NC2S2424183U
Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, 250A Busbar System
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 48
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Assembly Arrangement: 18mm pitch
- Degree of Protection: IP20
- Dimensions (H x L x W): 458mm x 300mm x 100mm
- Weight: 5 kg
Key Features
- 250A rated current for robust power handling.
- 3-phase input for efficient power distribution.
- Encapsulated material housing for enhanced durability.
- IP20 degree of protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Suitable for various electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A Split 24 Way 3Pole Universal is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
