Home/Electrical/Connection/Connection Equipment/DIN Busbar Chassis 250A 36 Way | 2-Pole Universal | Red Black by NHP

Trade Discount 25%

NHP POWERMAX DIN-T NC Busbar Chassis 250A 36 Way 2Pole Universal Red Black

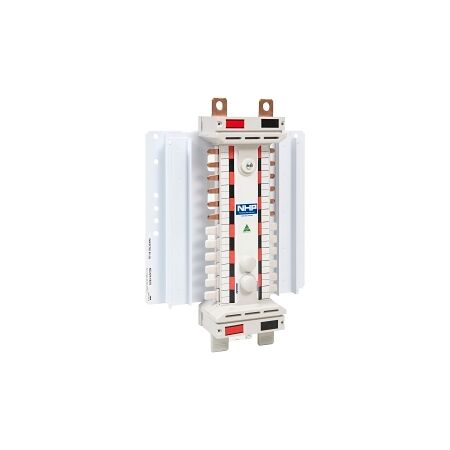

DIN Busbar Chassis 250A 36 Way | 2-Pole Universal | Red Black by NHP

BRAND: NHP

SKU: NC236182U

$672.60 List price: $893.10

+ −

30 Days Return Delivery Options

DIN busbar chassis with 250A rated current and 36 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection, suitable for indoor use.

Description
Attachments

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 36 Way 2Pole Universal Red Black

Brand: NHP

SKU: NC236182U

Alternatively Known As: DIN Busbar, Power Distribution Busbar, Electrical Busbar

Technical Specifications

Rated Current: 250 A
Number of Poles: 36
Nominal Voltage: 415 V
Short Time Withstand Current (1 sec): 10 kA
Short Time Withstand Current (0.3 sec): 20 kA
Short Time Withstand Current (0.1 sec): 25 kA
Assembly Arrangement: 18mm pitch
Material Housing: Encapsulated material
Degree of Protection: IP20
Dimensions (H x L x W): 350mm x 82mm x 200mm
Weight: 5 kg

Key Features

Rated current of 250A with 36 poles for versatile applications.
Encapsulated material housing for enhanced durability.
IP20 protection degree suitable for indoor use.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in commercial and industrial settings
Electrical: Suitable for use in switchboards and control panels

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for efficient power distribution, reducing energy loss.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 36 Way 2Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

NC236182U-AU-Chassis-NC-DINT-250A-2-Pole-Universal-Datasheet.pdf (NC236182U-AU-Chassis-NC-DINT-250A-2-Pole-Universal-Datasheet.pdf, 235 Kb) [Download]
