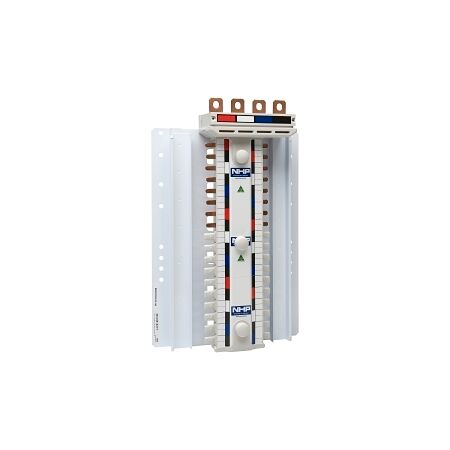

DIN Busbar Chassis 250A 36 Way | 4Pole Top Feed | IP20 Protection by NHP
DIN busbar chassis with 250A rated current and 36 poles—ideal for industrial power distribution. Built for durability with encapsulated material housing and IP20 protection, suitable for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 36
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 25 kA
- Short Time Withstand Current (ICW) 0.3 sec: 20 kA
- Short Time Withstand Current (ICW) 1 sec: 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 350mm x 300mm x 200mm
- Weight: 5 kg
Key Features
- 250A rated current with 36 poles for versatile applications.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 36 Way 4Pole Top Feed is available now for immediate purchase. Ideal for industrial power distribution applications.
Non-Returnable & Non-Cancellable
