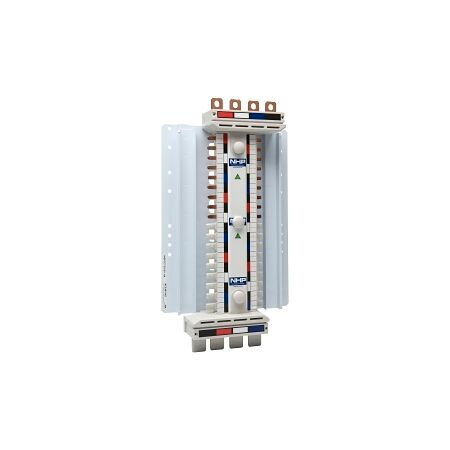

DIN Busbar Chassis 250A 72 Way | 4Pole Universal | IP20 Protection by NHP

BRAND: NHP
SKU: NC272184U
$2,626.60 List price: $3,487.70
+
DIN busbar chassis with 250A rated current and 72 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated housing and IP20 protection, suitable for indoor use.

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 72 Way 4Pole Universal RNWNBN

Brand: NHP

SKU: NC272184U

Alternatively Known As: DIN Busbar Chassis, Power Distribution Busbar, NC Busbar

Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 72
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (1 sec): 10 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (0.1 sec): 25 kA
  • Assembly Arrangement: 18mm pitch
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 674mm x 82mm x 200mm
  • Weight: 5 kg
Key Features
  • 250A rated current with 72 poles for versatile applications.
  • Encapsulated material housing for enhanced durability.
  • IP20 protection degree suitable for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in commercial and industrial settings
  • Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 72 Way 4Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.

NC272184U-AU-Chassis-NC-DINT-250A-4-Pole-Universal-Datasheet.pdf (NC272184U-AU-Chassis-NC-DINT-250A-4-Pole-Universal-Datasheet.pdf, 236 Kb) [Download]
