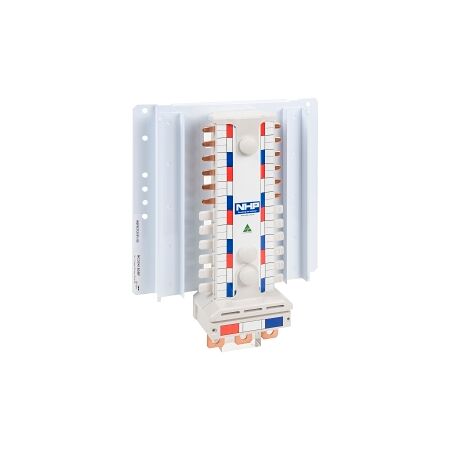

DIN Busbar Chassis 250A 84 Way 3P Bottom Feed NHP

BRAND: NHP
SKU: NC284183BF
$1,690.70 List price: $2,106.90
+ −
30 Days Return Electricians Unlock Trade Access
NHP DIN Busbar Chassis Bottom Feed features 250A rated current, 415V and 10kA. 84 poles for extensive circuit management.
Technical Specifications
  • Rated Current: 250 A
  • Number of Poles: 84
  • Nominal Voltage: 415 V
  • Short Time Withstand Current (1 sec): 10 kA
  • Short Time Withstand Current (0.3 sec): 20 kA
  • Short Time Withstand Current (0.1 sec): 25 kA
  • Assembly Arrangement: 18mm pitch
  • Material Housing: Encapsulated material
  • Dimensions (H x L x W): 782mm x 300mm x 100mm
  • Weight: 5 kg
Key Features
  • 250A rated current for high power applications.
  • 84 poles for extensive circuit management.
  • 3-phase input for balanced power distribution.
  • Encapsulated material housing for durability.
  • IP20 degree of protection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP POWERMAX DIN-T NC Busbar Chassis 250A 84 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.

NC284183BF-AU-Chassis-NC-DINT-250A-3-Pole-Bottom-Feed-Datasheet.pdf (NC284183BF-AU-Chassis-NC-DINT-250A-3-Pole-Bottom-Feed-Datasheet.pdf, 245 Kb) [Download]
