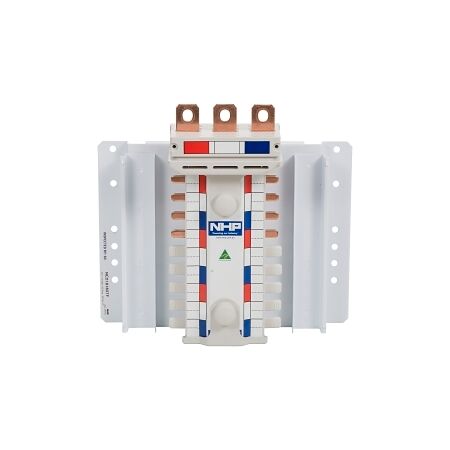

DIN Busbar Chassis 250A 96 Way 3-Phase Top Feed Encapsulated NHP
DIN busbar chassis with 250A rated current and 96 poles—ideal for industrial power distribution. Built for efficient energy management
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 96
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 10 kA
- Degree of Protection: IP20
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Dimensions (H x L x W): 890mm x 500mm x 300mm
- Weight: 10 kg
Key Features
- 250A rated current with 96 poles for extensive power distribution.
- 3-phase input for efficient energy management.
- Encapsulated material housing for enhanced durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 96 Way 3Pole Top Feed is available now for immediate purchase, ideal for industrial power distribution needs.
