DIN Busbar Chassis 400A 24 Way | 4 Pole Universal | IP20 Protection by NHP
DIN busbar chassis with 400A rated current and 24 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection, ensuring efficient energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

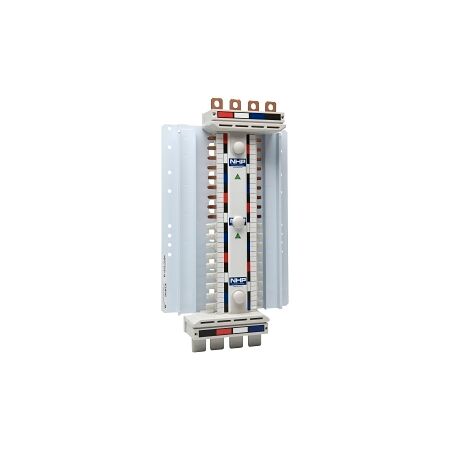

Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 4Pole Universal RNWNBN
Brand: NHP
SKU: NC424184U
Alternatively Known As: DIN Busbar, Power Distribution Busbar, NC Busbar Chassis
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 24
- Nominal Voltage: 415 V
- Short Time Withstand Current (1 sec): 13 kA
- Short Time Withstand Current (0.3 sec): 25 kA
- Short Time Withstand Current (0.1 sec): 30 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 242mm x 82mm x 300mm
- Weight: 5 kg
Key Features
- 400A rated current with 24 poles for versatile applications.
- Encapsulated material housing for enhanced durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Electrical: Suitable for use in switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 400A 24 Way 4Pole Universal is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
Non-Returnable & Non-Cancellable
